MacDon A40D - Auger Pan Extensions; Installing and Adjusting Pan Extensions

262334 115 Revision A
3.11.4 Auger Pan Extensions
The grass seed header is equipped with adjustable auger pan extensions that allow adjustment of delivery opening to vary
the windrow characteristics.
Installing and Adjusting Pan Extensions
Follow this procedure to install the pan extensions.
1027105
A
A

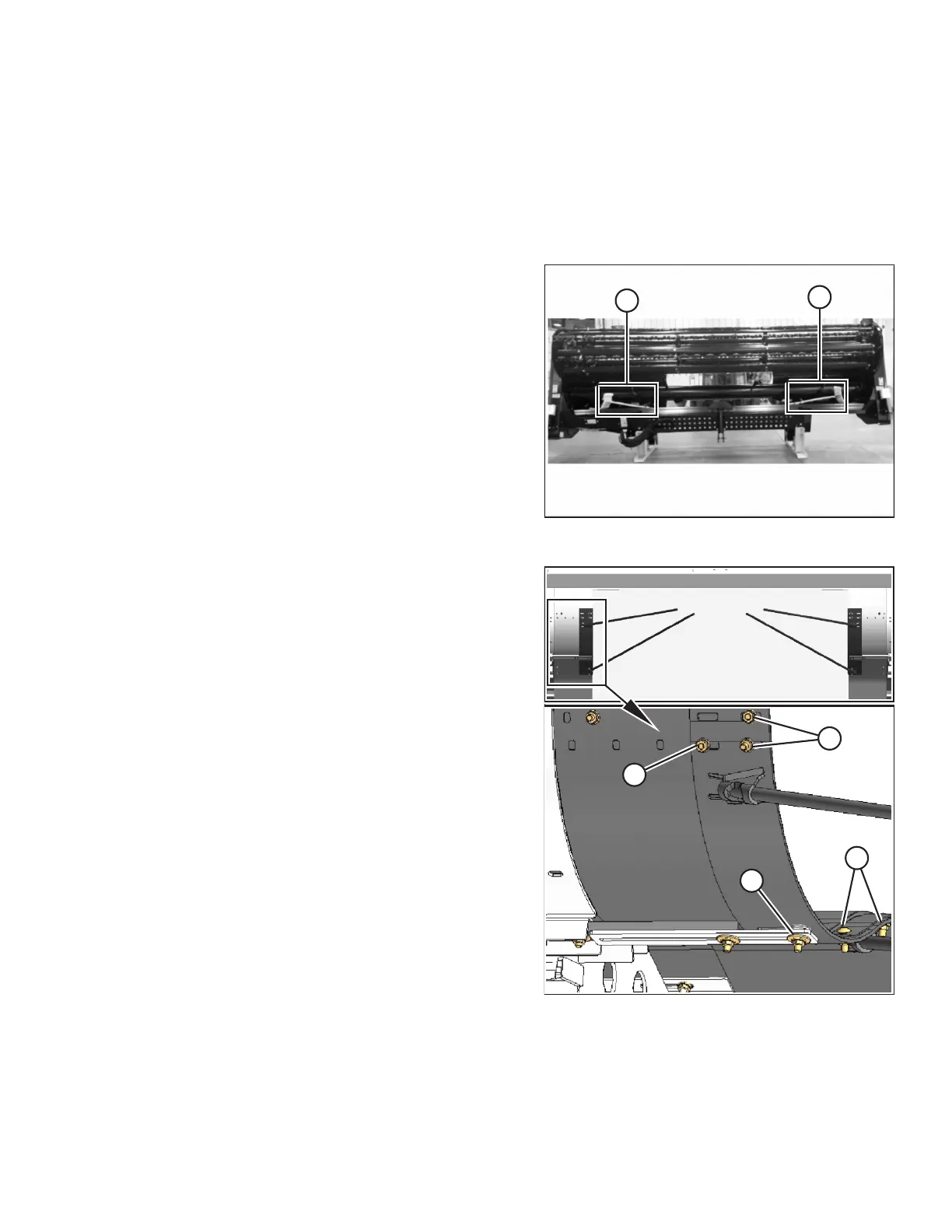

Figure 3.166: Shipping Configuration
1. Remove deflectors (A) from their shipping positions on the
header and unwrap them.
1027107
A
B
C
C
Figure 3.167: Pan Extension – Wide Setting
2. Remove nut and bolt (A), nut and washers (B), and nuts (C)
from the pan extension. Retain the hardware.
NOTE:
The illustrations in this procedure show the left pan
extension. The instructions are similar for installing and
adjusting the right pan extension.
OPERATION
