MacDon A40D - Page 52

262334 34 Revision A
1015478
A
B

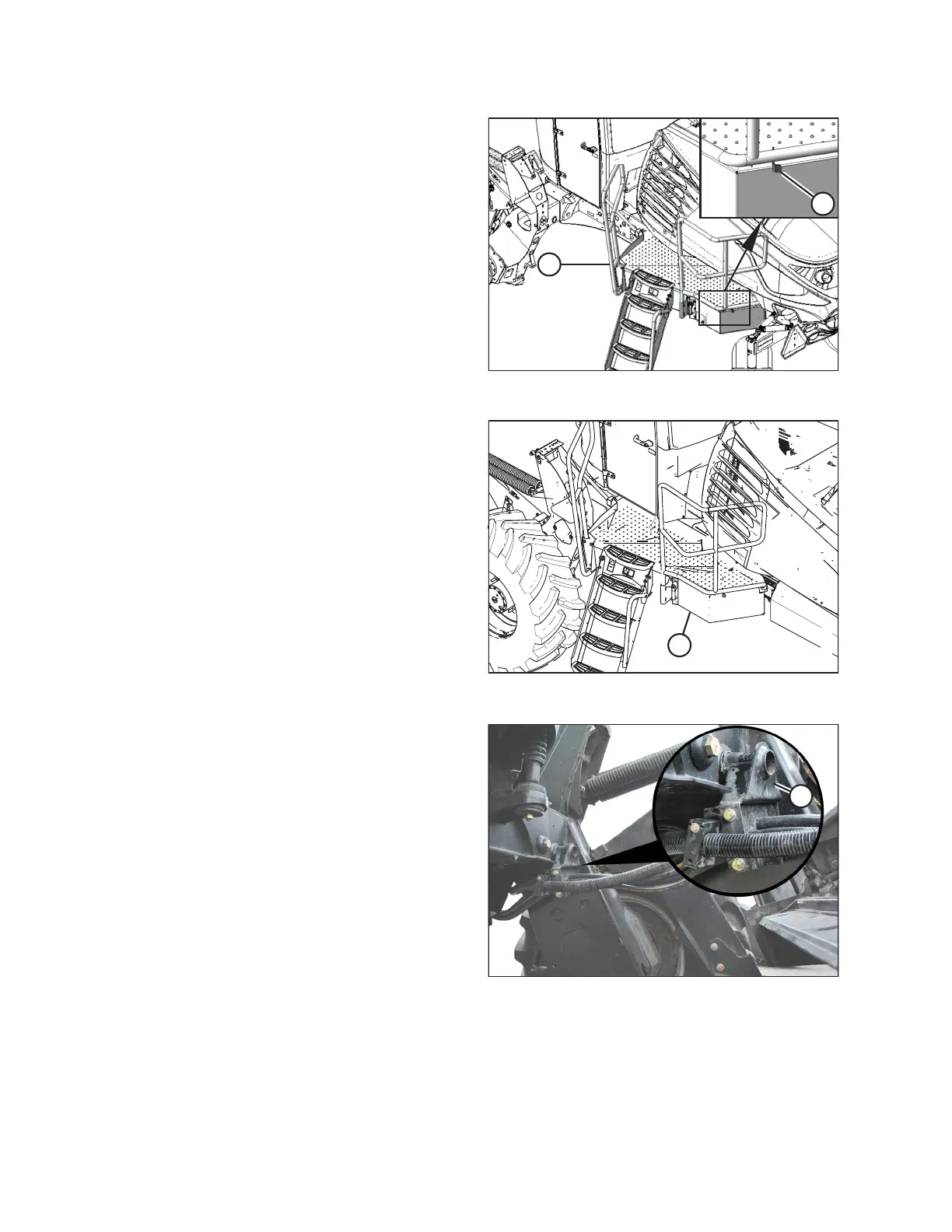

Figure 3.11: Left Platform
5. Push latch (A) to unlock platform (B).
1012700
A
Figure 3.12: Left Platform
6. Pull platform (A) toward the cab until it stops and the latch
is engaged.
1019391
A
B
ϭϬϰϮϯϲϮ
A
Figure 3.13: Multicoupler
7. Remove hose support (A) from the windrower’s left leg.
