262334 204 Revision A

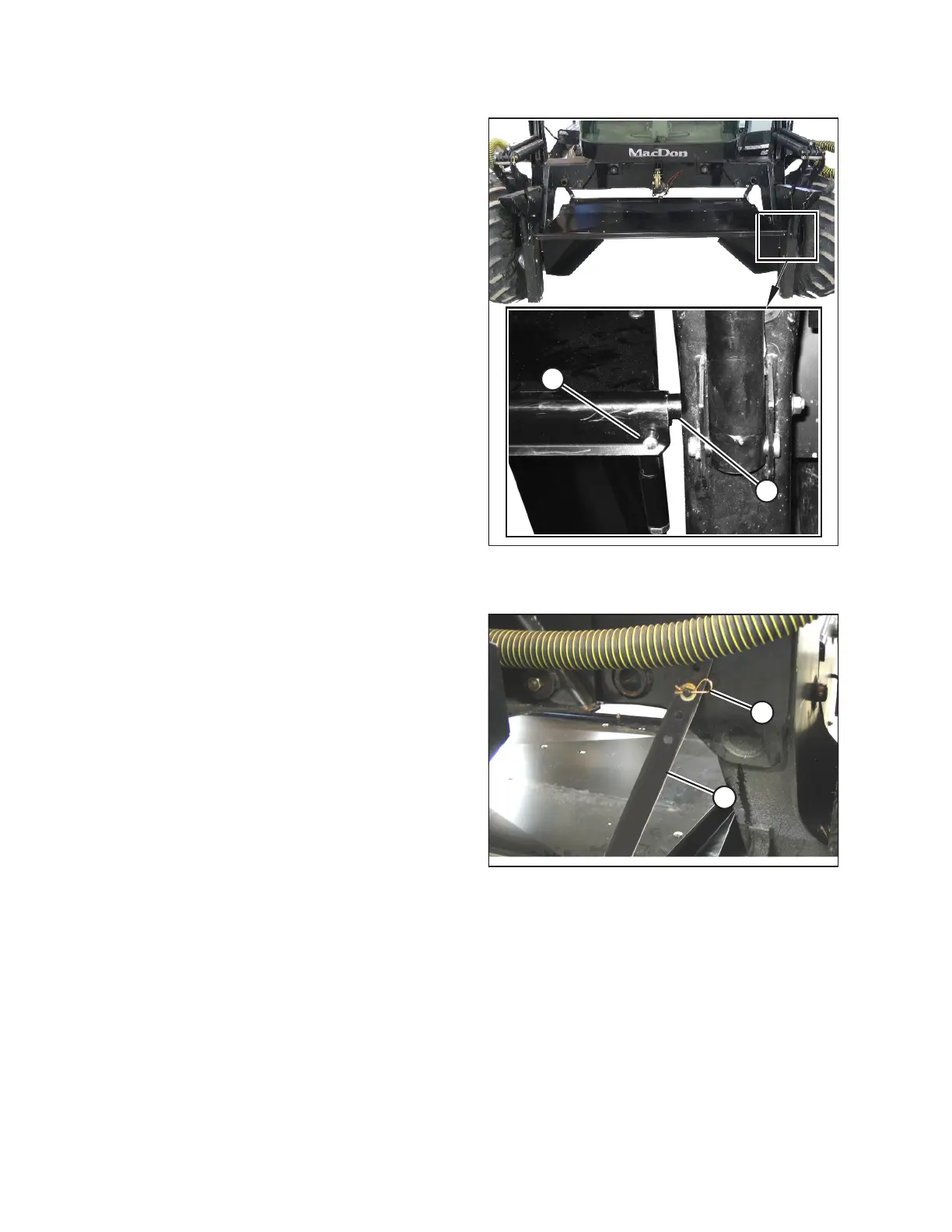

Figure 4.148: Forming Shield Attached to the
Windrower Legs
5. Position the forming shield onto bolts (A) in the windrower
legs and secure the forming shield with clevis pins (B) and
hairpin.
Figure 4.149: Forming Shield Attached to the
Windrower Frame
6. Lift the aft end of the forming shield and attach straps (B)
to pins (A) on the windrower frame. Install the washer and
the hairpin to secure the strap. Use the middle hole and
adjust the height to suit the crop.
MAINTENANCE AND SERVICING
