1. Shut down the engine, and remove the key from the ignition.

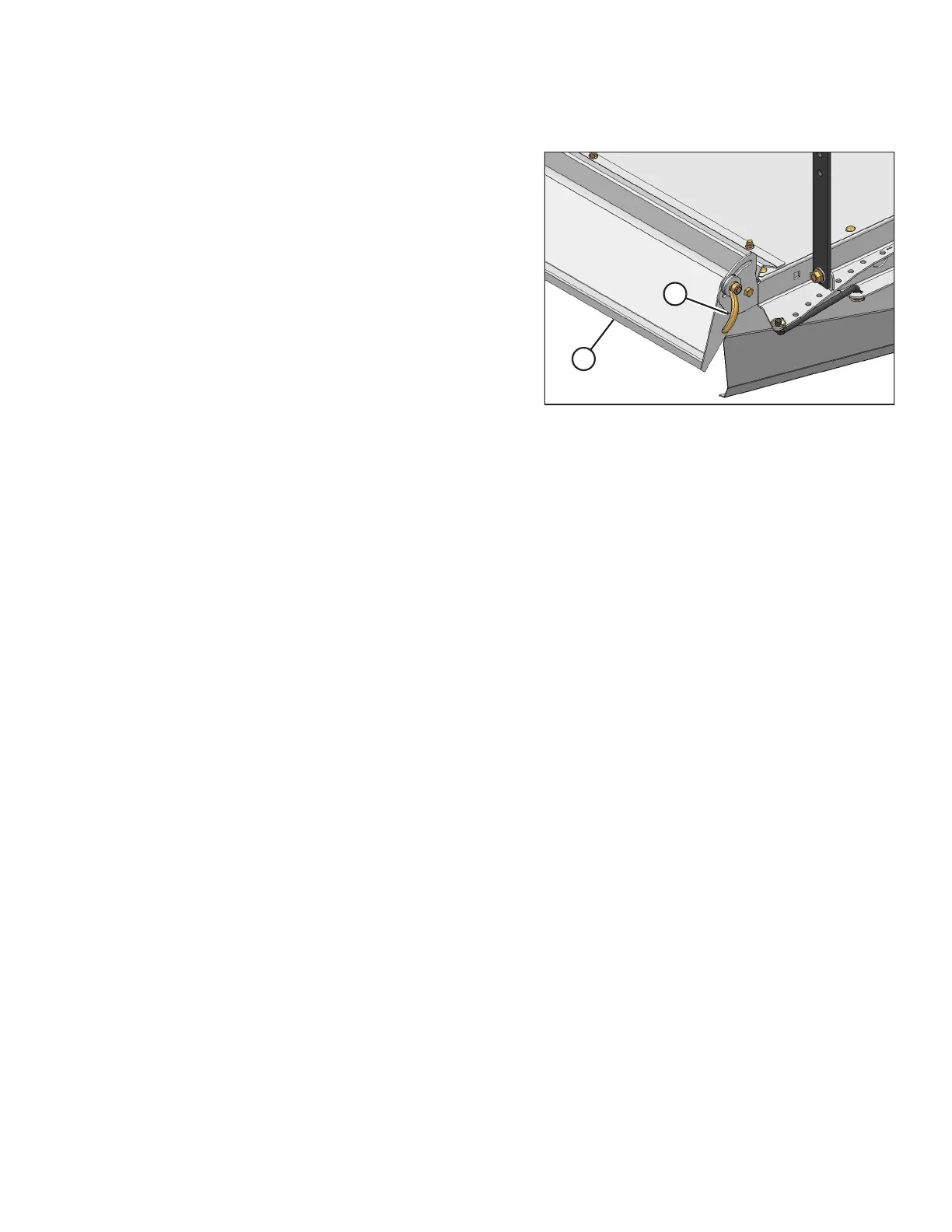

Figure 3.160: Rear Deflector
2. For more crop control in light material, lower rear
deflector (A) by pushing down on one side of the deflector,
and then on the other side. Locking handles (B) are located
at either end of the deflector, and may be loosened slightly.
3. For heavier crops, raise rear deflector (A) by pulling up on
one side, and then on the other side.
NOTE:
For even windrow formation, ensure that the deflector is
NOT twisted.
