MacDon A40D - Page 226

262334 208 Revision A
1012048
B
A

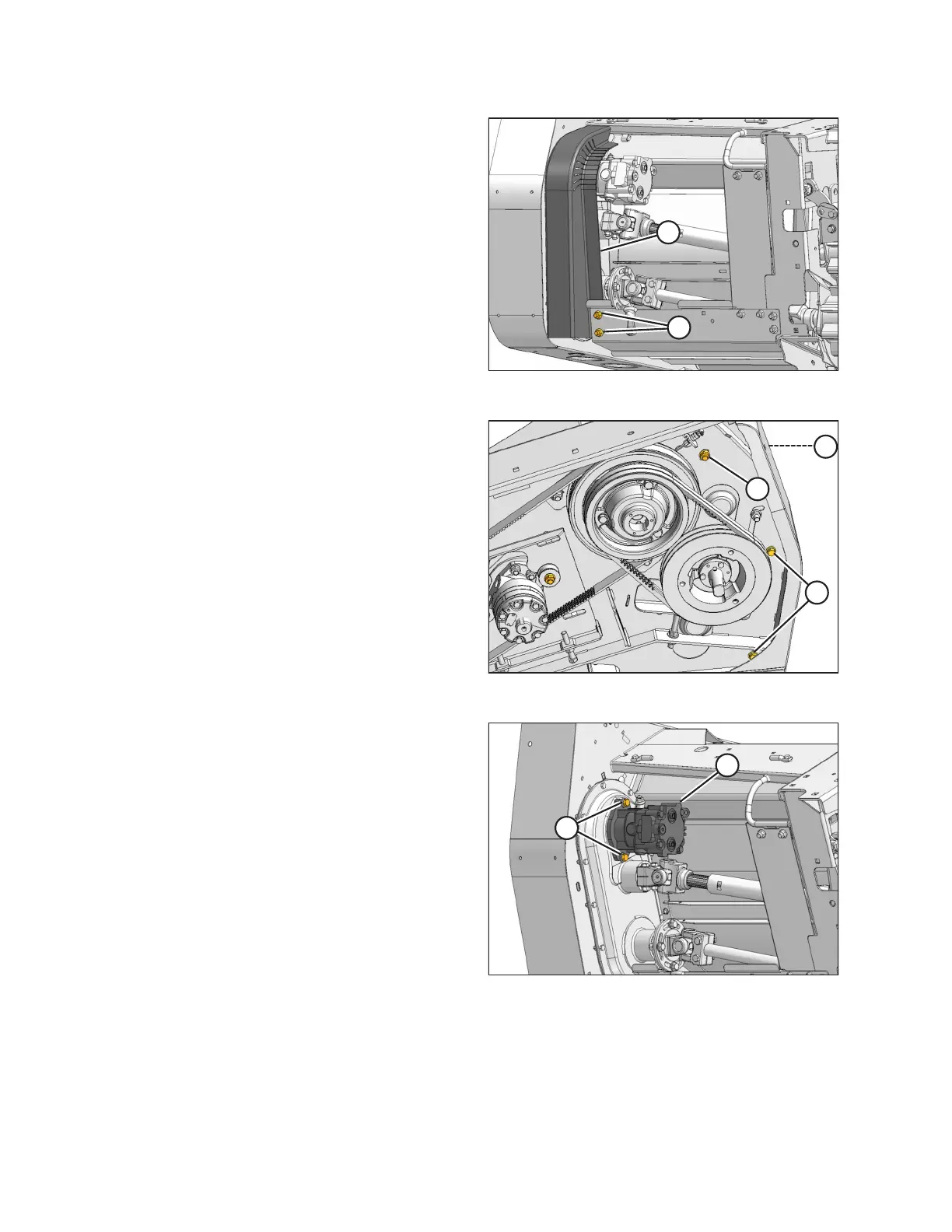

Figure 4.156: Conditioner Drive
3. Remove two bolts (A) securing channel (B) to the frame.
1012063
A
C
B
Figure 4.157: Header Drive
4. Remove two hex bolts (A), and one carriage bolt (B)
securing channel (C) to the endsheet and remove
channel (C).
1012050
B
A
Figure 4.158: Gearbox Motor
5. Remove two bolts (A) securing motor (B) to the gearbox.
Do NOT disconnect the hoses.
NOTE:
The hoses have been removed from the illustration for
clarity.
6. Carefully pull motor (B) from the gearbox and move it out
of the work area.
MAINTENANCE AND SERVICING
