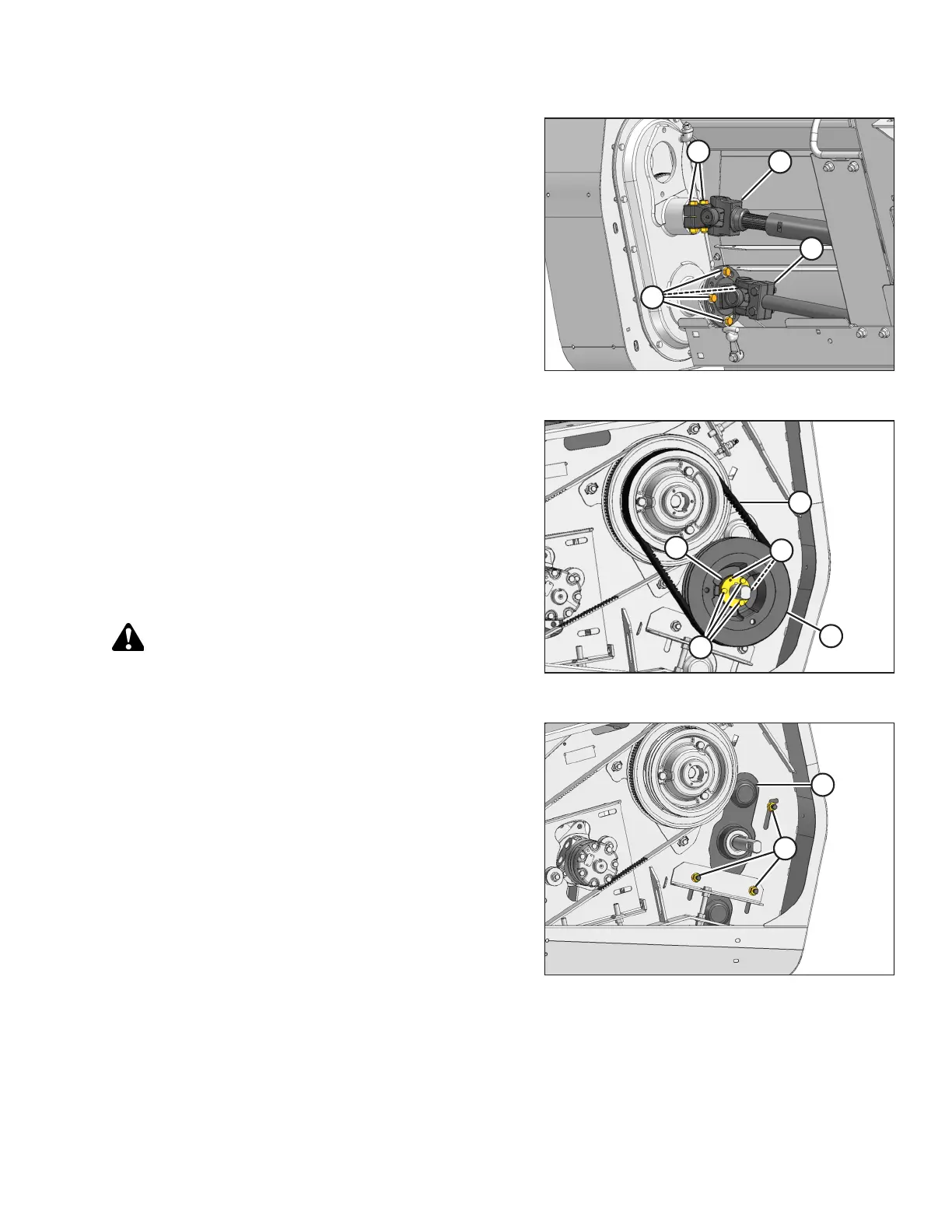

Figure 4.159: Drivelines
7. Remove two bolts (A) in upper driveline (B).
8. Pull driveline (B) off the gearbox. If necessary, use a
screwdriver or equivalent to spread the yoke. Move the
driveline out of the work area.
9. Remove four bolts (C) from flange on lower driveline (D)
and remove driveline from gearbox. Move driveline clear of
work area.
Figure 4.160: Knife Drive Belts
10. Remove knife drive V-belts (A). For instructions, refer to
Removing Left V-Belts, page 167.
11. Remove three bolts (B) from tapered bushing (D).
12. Install two bolts (B) in two threaded holes (C) in bushing (D)
and tighten the bolts to release the bushing.
13. Remove bushing (D) and the key.
14. Remove pulley (E).
CAUTION
Be sure to support the gearbox when removing the nuts. The
gearbox weighs 34 kg (79 lb.).
Figure 4.161: Conditioner Detachment
15. Remove three nuts (A) securing gearbox (B) to the frame
and remove gearbox (B).
