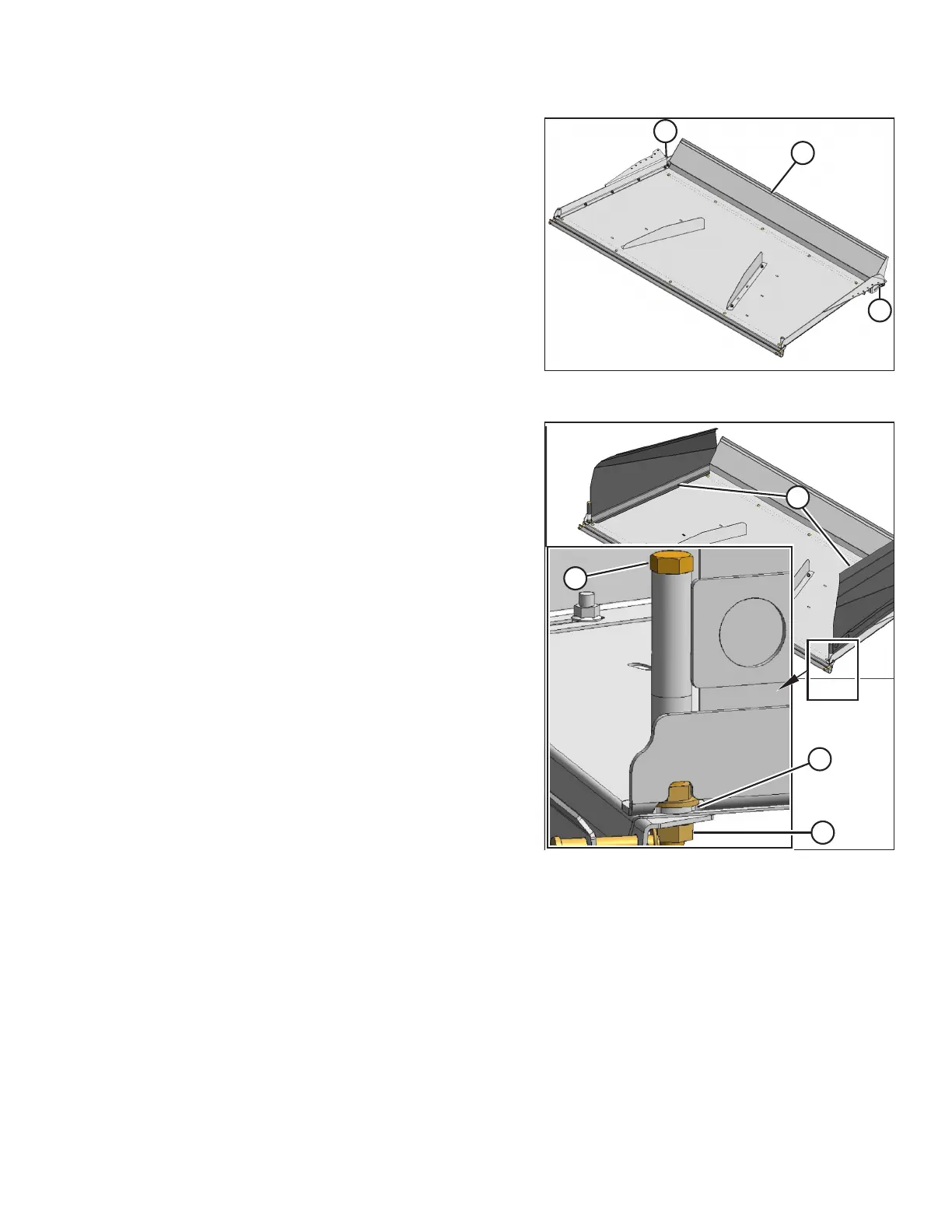

Figure 4.141: Cover
2. Attach fluffer shield (B) to the forming shield cover.
3. Attach locking handles (A) to the forming shield cover with
bolts.
1005804
A
D
B
C
Figure 4.142: Forming Shield
4. Attach side deflectors (C) and washers (D) to the forming
shield cover with nuts (A) and bolts (B).
