262334 149 Revision A

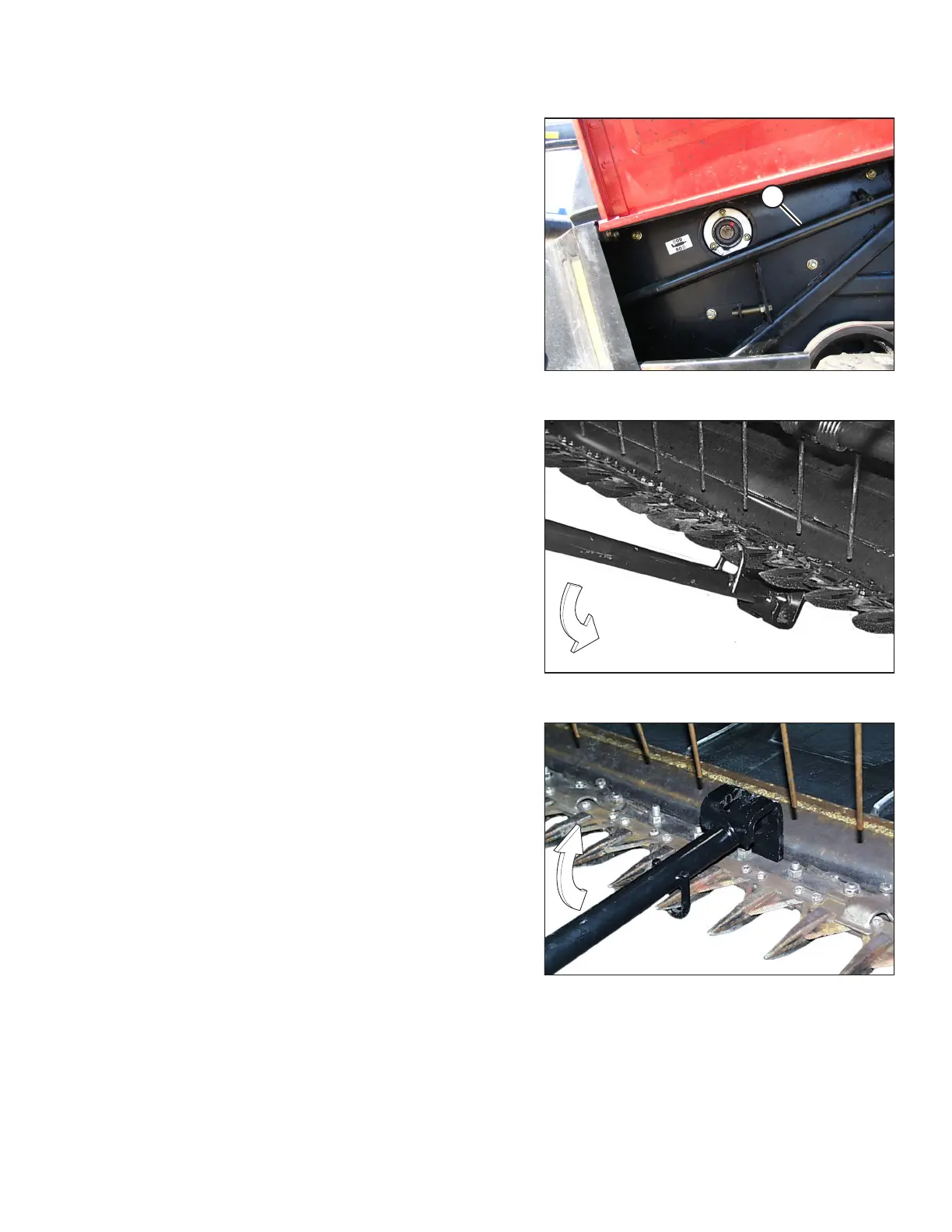

Figure 4.27: Wrench Location
2. Retrieve tool (A) from the left side of header.
Figure 4.28: Guard Tip – Downward Adjustment
3. To adjust guard tips downward, position the tool as shown
at right, and push the tool down.
Figure 4.29: Guard Tip – Upward Adjustment
4. To adjust guard tips upward, position the tool as shown at
right, and pull the tool up.
NOTE:
If tangled or fine-stemmed material is difficult to cut,
replace guards with stub guards. If crop material is tough,
install stub guards with a top guard and adjuster plate. A
stub guard conversion kit for the header is available from
your Dealer.
MAINTENANCE AND SERVICING
