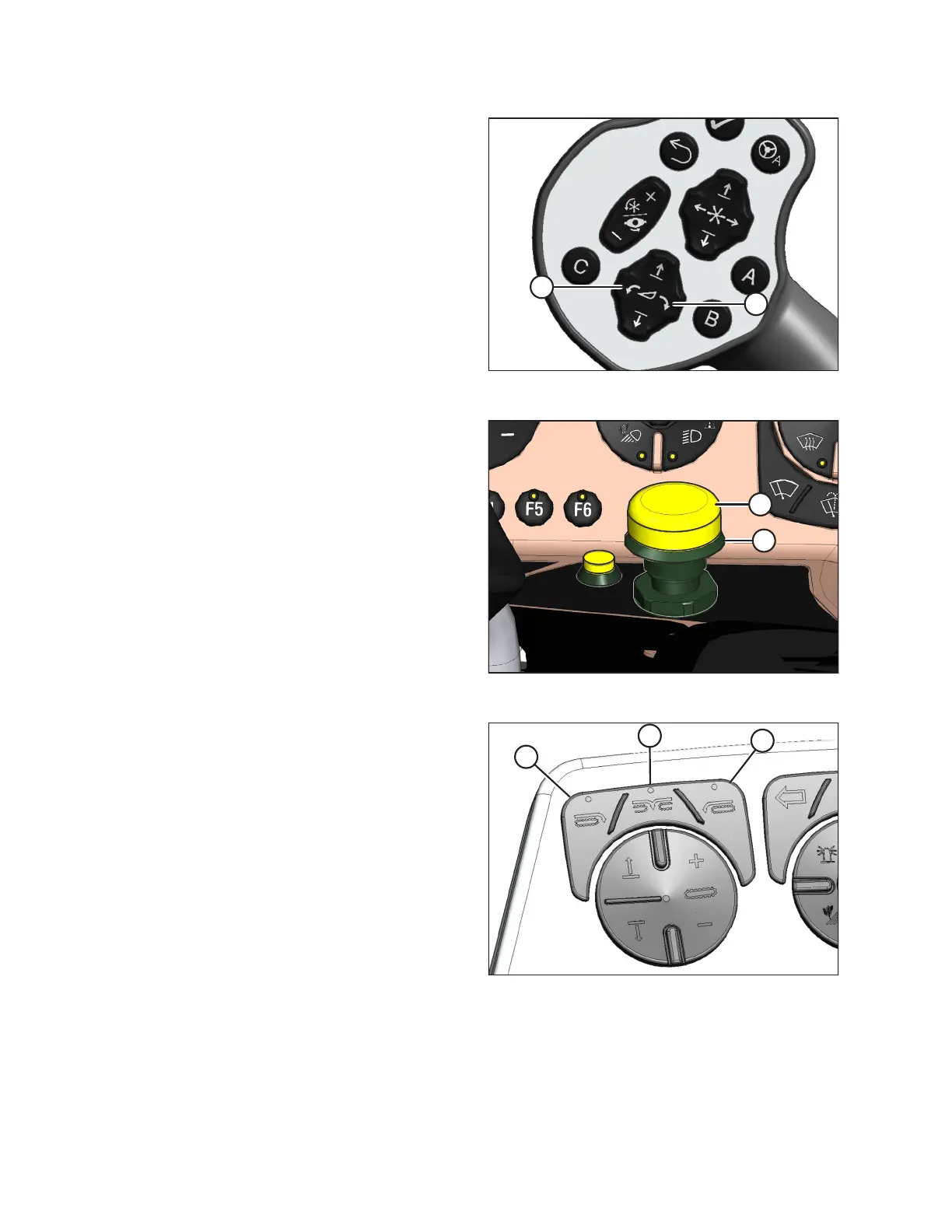

Figure 3.138: GSL
1. Start the engine and use HEADER TILT switches (A) and (B)
on the ground speed lever (GSL) to set header tilt to the
mid-range position.
10127561012756
A
B
Figure 3.139: Header Engage Switch
2. Engage the header by pushing and holding down HEADER
ENGAGE switch (A), and pulling up on collar (B).
1019662
A
B
C
Figure 3.140: Header Deck Shift Switches
3. Select one of the following deck positions using the DECK
SHIFT switches on the operator’s console:
• Right-side delivery (A)
• Center delivery (B)
• Left-side delivery (C)
