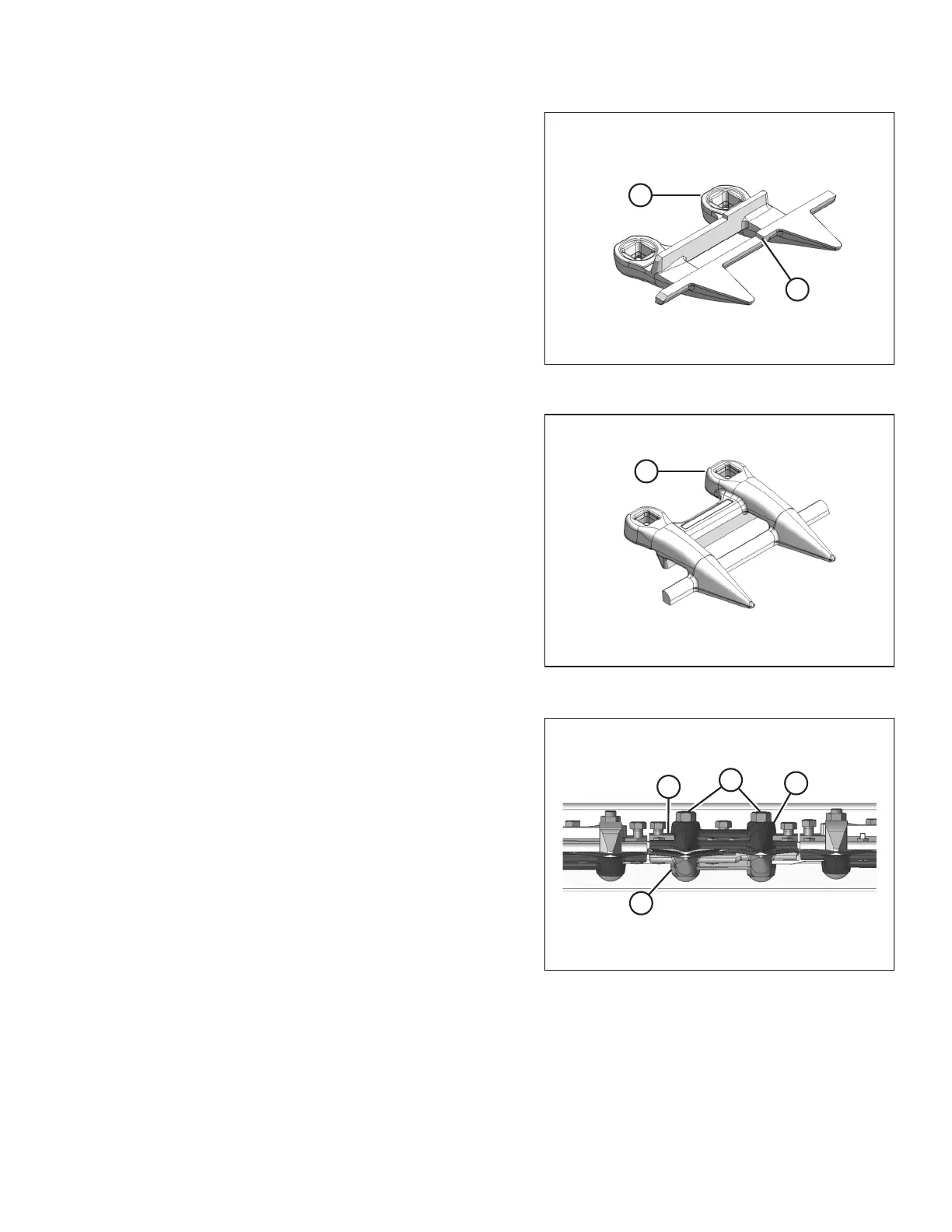

Figure 4.40: Center Guard – Double Knife
IMPORTANT:
Ensure center guard (A) has offset cutting surface (B).
IMPORTANT:
Ledger surfaces of center and adjacent guards must be vertically
aligned to avoid interference with knife sections.
1013176
A
Figure 4.41: Center Hold-Down – Double Knife
IMPORTANT:
Hold-down (A) must accommodate the two overlapping knives at
center guard location on double-knife header. Ensure
replacement is the correct part. Hold-down is actually an
inverted stub guard (MD #118346).
1004117
A
B
C
D
Figure 4.42: Stub Guard Replacement
1. Remove two nuts (A) and bolts that attach center guard (B)
and top guide (C) to cutterbar.
2. Remove guard, top guide, and adjuster bar (D).
