262334 212 Revision A

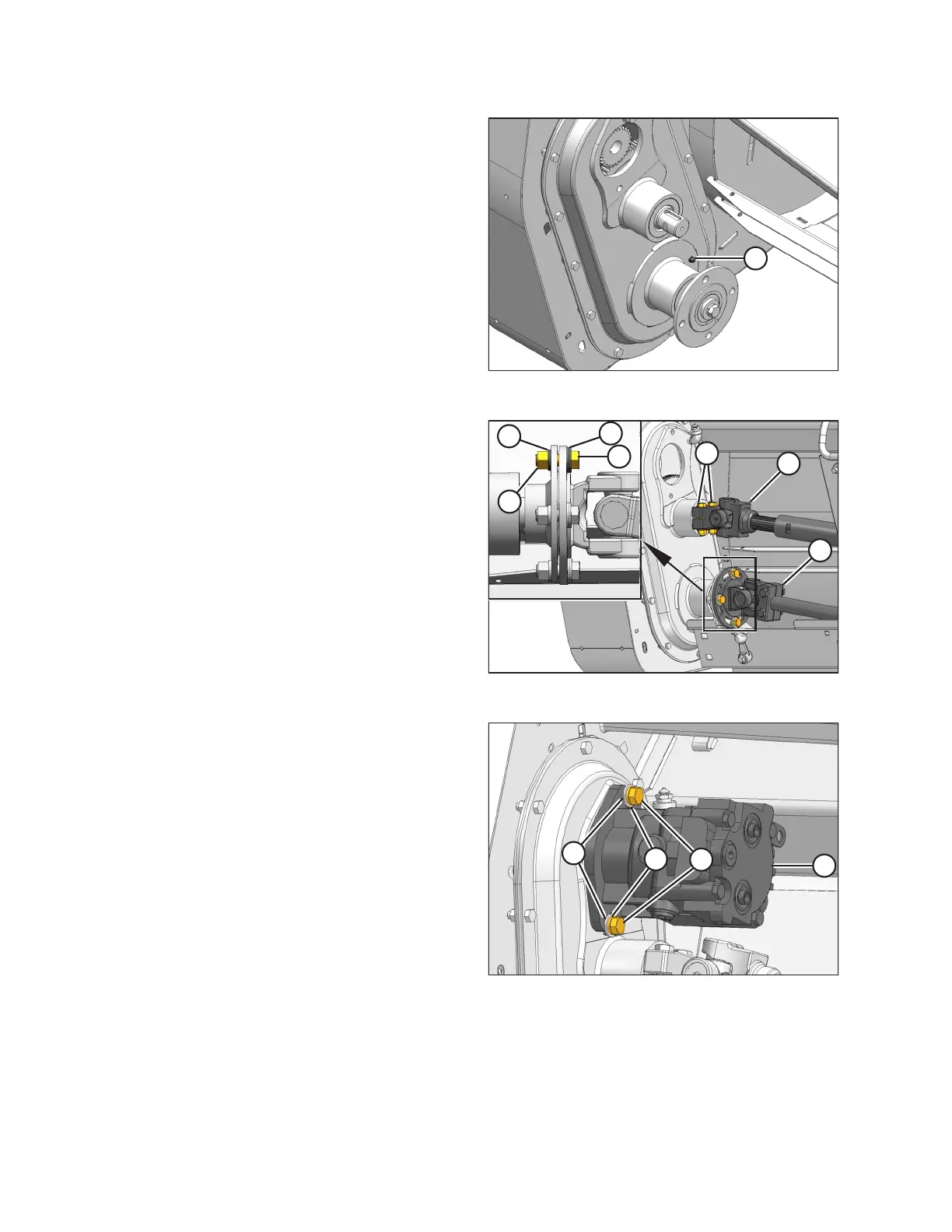

Figure 4.167: Gearbox
12. Remove oil level check plug (A) in the gearbox. If the oil
does not run out of the plug, add oil to the required level. If
oil is required, refer to the chart on the inside back cover of
this manual.
Figure 4.168: Upper and Lower Drivelines
13. Align the keyway in upper driveline yoke (B) with the key in
the gearbox shaft and attach yoke (B) to the shaft.
14. Install two hex head bolts (A) and flanged lock nuts to
secure the yoke. Tighten the bolts.
15. Install the timing flange on lower driveline (D) onto the
lower shaft on the gearbox with four hex head bolts (C),
two flat washers (E) under each bolt head, lock washers (F)
and plain nuts (G). Do NOT tighten the hardware.
Figure 4.169: Hydraulic Motor
16. Apply a light coat of silicone to the motor flange.
17. Position hydraulic motor (A) onto the gearbox as shown
and secure it with two hex head bolts (B) with thread
locking compound, two flat washers (C), and two lock
washers (D). Torque the hardware to 112 Nm (83 lbf·ft).
18. Time the rolls. For instructions, refer to 4.14.11 Checking
and Adjusting Roll Timing, page 216.
MAINTENANCE AND SERVICING
