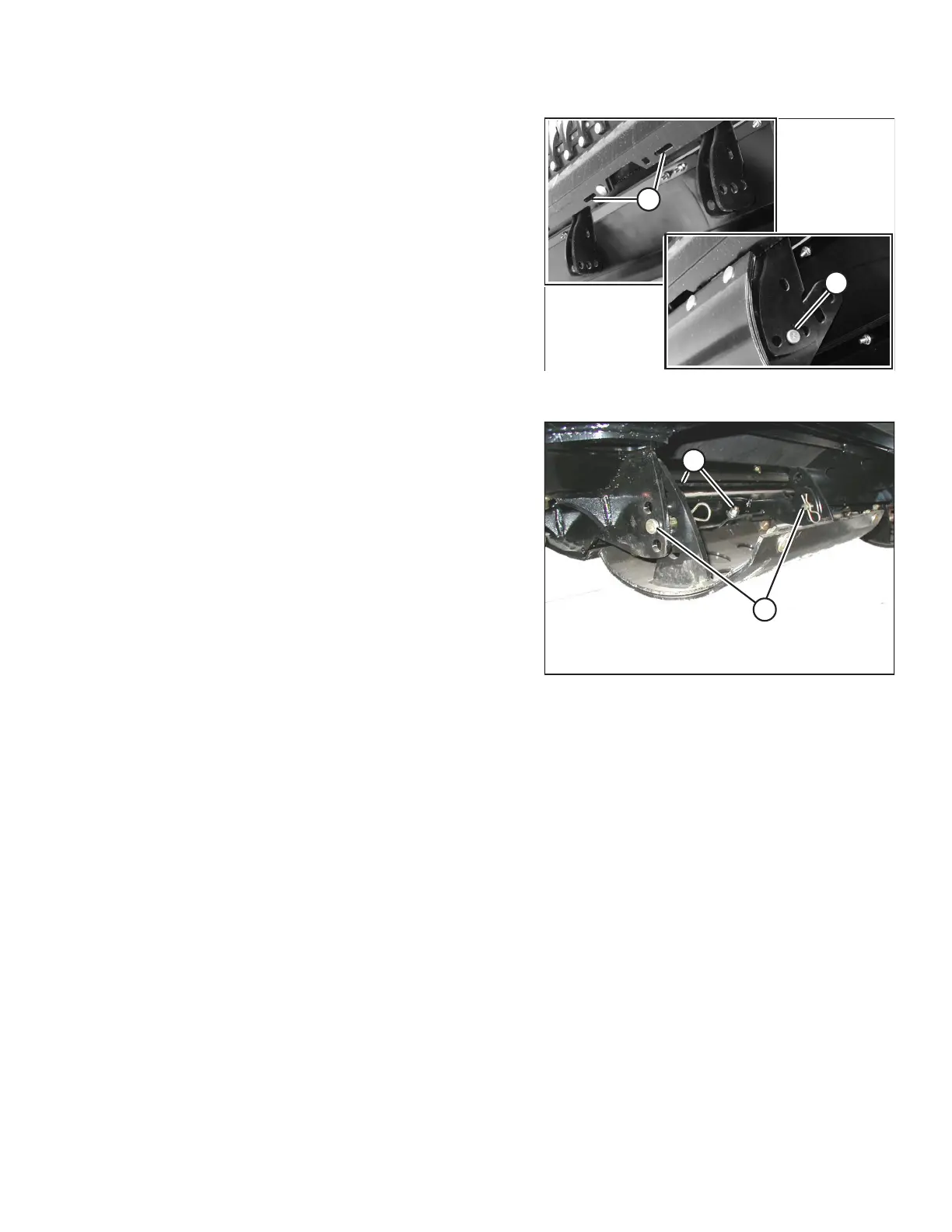

Figure 4.185: Inboard Cutterbar Mounting Location
8. Insert the tabs on the skid shoe into slots (A) on the
cutterbar at the inboard mounting locations on the frame,
and secure the tabs with clevis pin (B).
1005403
A
B
Figure 4.186: Skid Shoe
9. Reinstall clips (A) with the bolts and nuts removed from
Step 3, page 218 to secure the skid shoe to the cutterbar.
NOTE:
Use a socket and ratchet wrench to access the nuts.
10. Remove clevis pin (B), adjust the skid shoe to the desired
height, and reinstall two clevis pins. Secure the clevis pins
with lynch pins.
