262334 221 Revision A

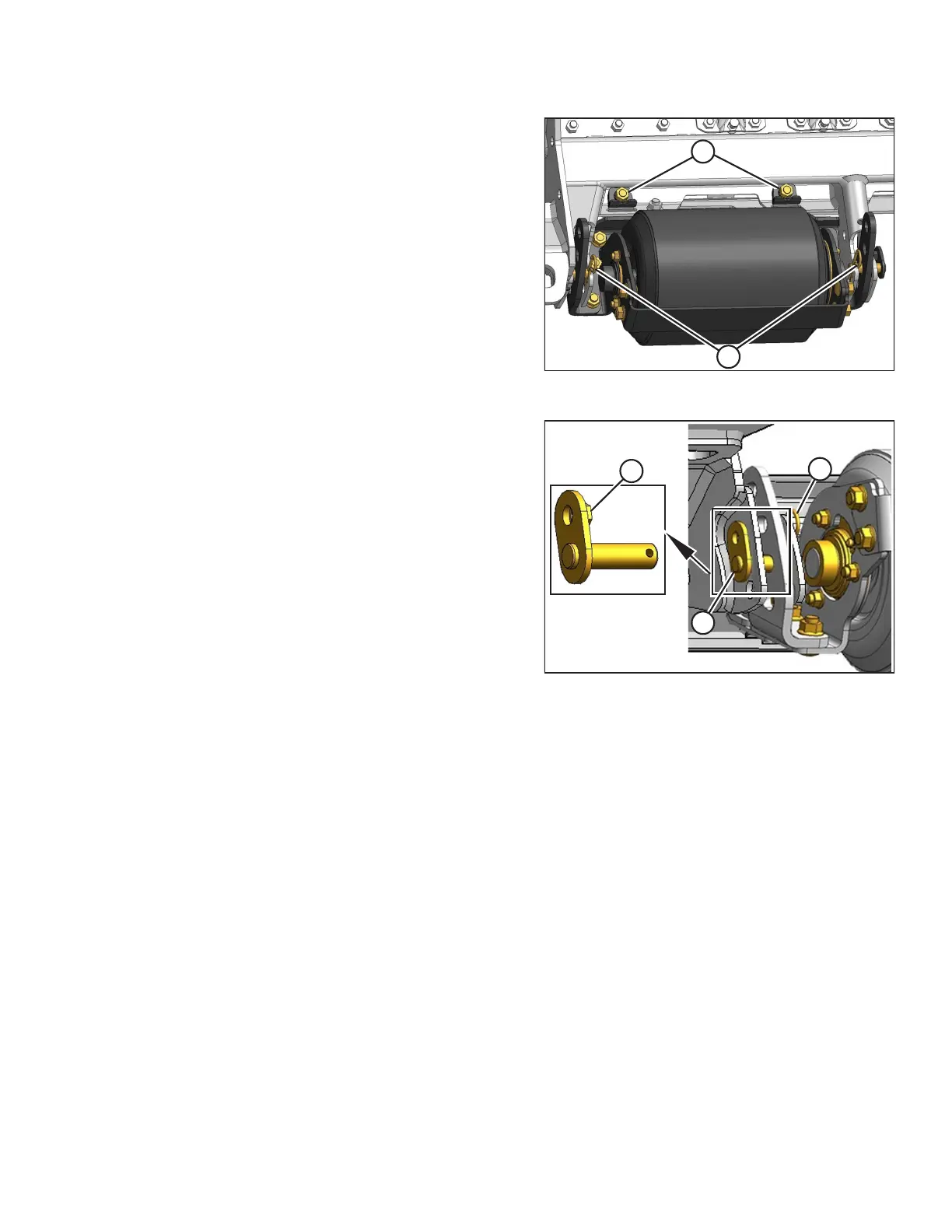

Figure 4.189: Gauge Roller Assembly
2. Secure the gauge roller assembly with two pins (B) at the
lowest position.
3. Attach clips (A) with the bolts and nuts to secure the roller
assembly to the cutterbar.
NOTE:
Use a socket and ratchet wrench to access the nuts.
4. Tighten the nuts.
Figure 4.190: Support Bracket
5. Remove pins (A), and adjust the rollers to the desired
height. Reinstall two pins (A).
6. Ensure that nut (B) on each pin is seated in the adjacent
hole in the support bracket.
7. Secure the pins with hairpins (C).
MAINTENANCE AND SERVICING
