262334 38 Revision A

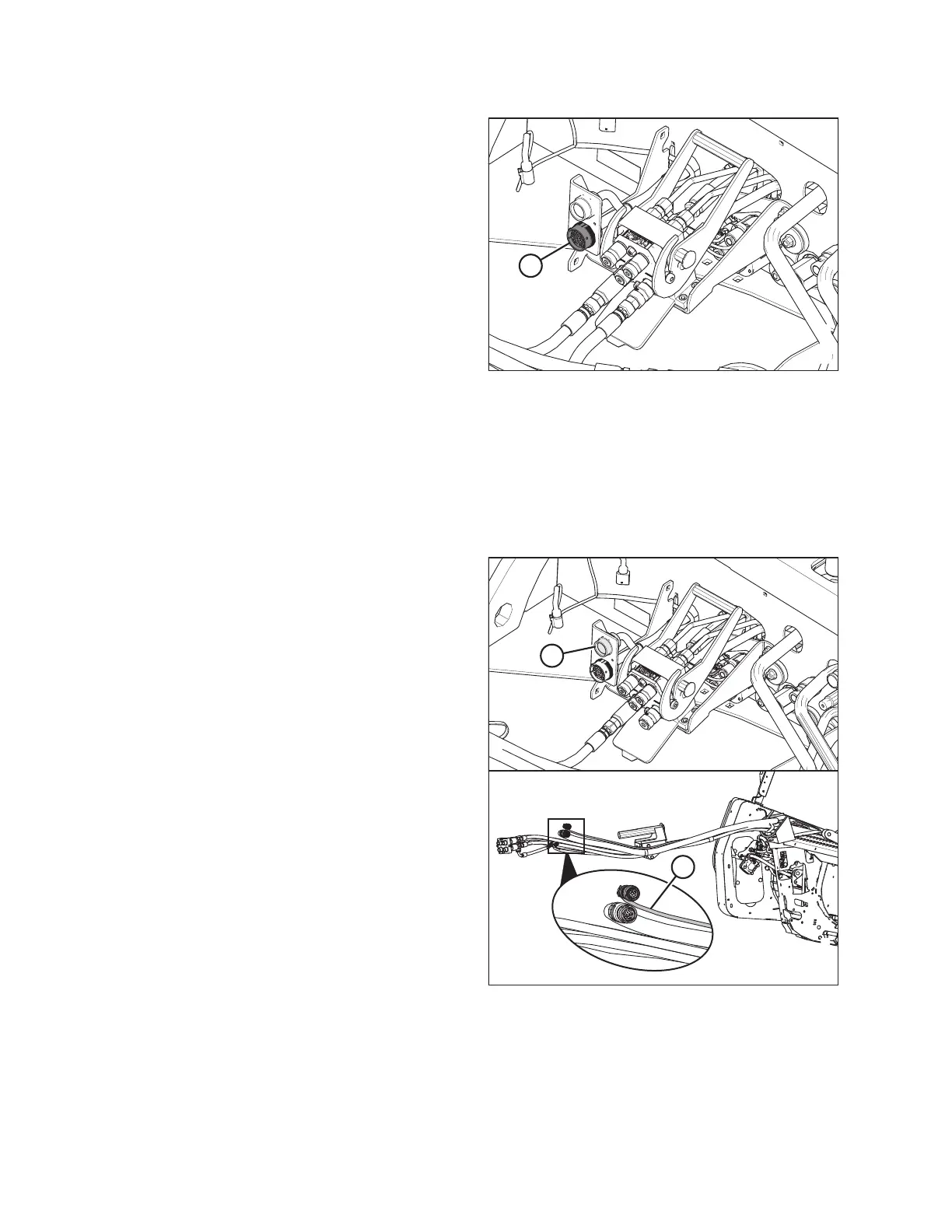

Figure 3.20: Windrower Electrical Connector
10. Remove the cover from receptacle (A) and connect the
electrical harness from the header.
A40DX Grass Seed headers and A40DX headers equipped with Reel Speed Control kit (B6604)
A40DX Grass Seed headers have a factory-installed reel speed kit and includes a second electrical connection required for
attaching to an M1 or M2 Series Windrower. The Reel Speed Control kit (B6604) is an available option for an A40DX header.
Complete the following step when connecting an A40DX Grass Seed header (or an A40DX header with B6604 equipped) to
an M1 or M2 Series Windrower:
Figure 3.21: Electrical Connection
11. Remove the cover from receptacle (A) on the windrower
and connect electrical harness (B) from the header.
OPERATION
