MacDon A40D - Page 58

262334 40 Revision A
1019391
A
B
1024062
A
C
B

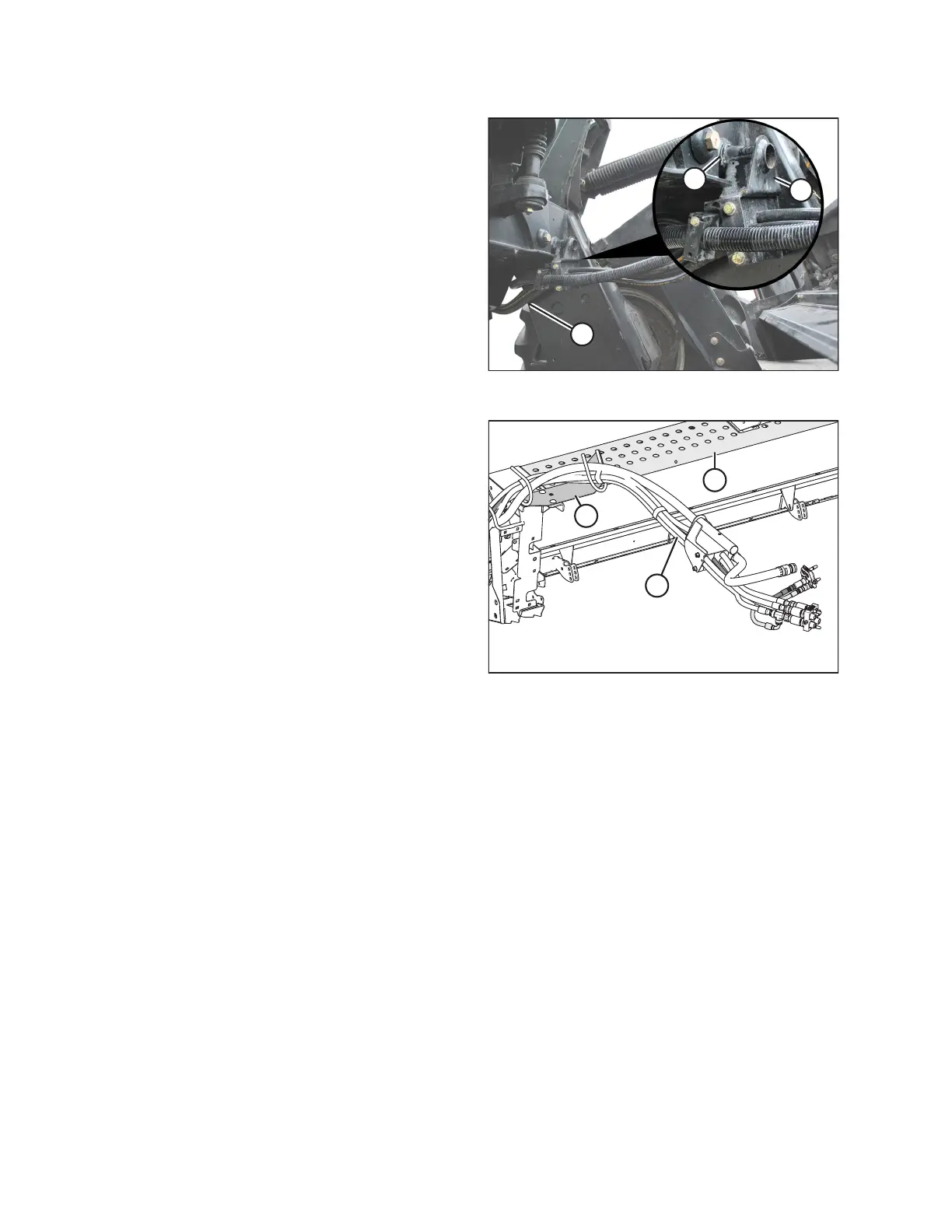

Figure 3.24: Hose Support
9. Remove hose support (B) from hole (A) in the windrower
left leg, and remove header hose bundle (C) from the
windrower.
1023871
A
B
C
Figure 3.25: Detached Header Hydraulics Bundle
10. Keeping hose bundle (A) in hose guide (B), store the hose
bundle on top of header walkway (C), away from the
windrower.
11. Detach the header from the windrower. For instructions,
refer to your windrower operator’s manual.
OPERATION
