11 Device manager
900 Touch Control
￭￭￭￭￭￭￭￭
95
Rotation increment
Amount by which the sample rack can be rotated forward or backward
relative to its current position. This parameter is required in the command
MOVE for the settings Destination = rotate + and rotate -.
Input range 0 to 353.99 °
Default value 5.00 °
Axial distance
Distance between the axis of rotation of the sample rack and the swing
axis of the robotic arm.
for 814 USB Sample Processor:
Input range 100.0 to 300.0 mm
Default value 166.0 mm
for 815 Robotic USB Sample Processor XL, 855 Robotic Titrosampler:
Input range 100.0 to 300.0 mm
Default value 196.0 mm
11.5.3 Properties – Swing Head
Instrument list: Sample Processor ▶ Edit ▶ Swing Head ▶ Proper-
ties

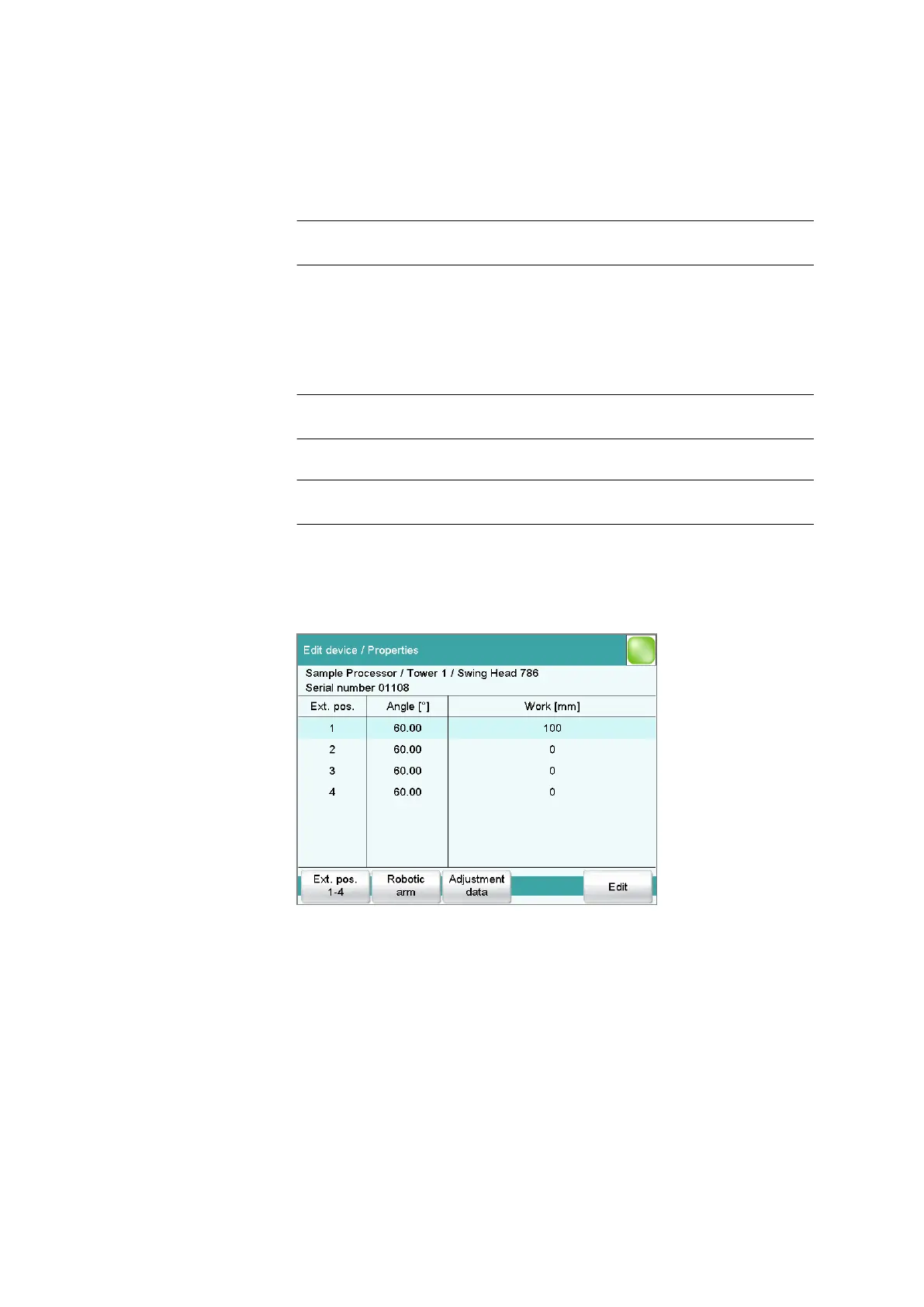

The dialog Edit device / Properties shows a list of all external positions
with the assigned swing angle and the specific work position for each.
[Ext. pos. 1-4]
Edit the settings that apply for all external positions (see "Properties –
External positions 1-4", page 96).
[Robotic arm]
Edit the robotic arm settings (see "Properties – Robotic arm", page 97).
