Metrohm 900 - Moving to a Rack Position

28.7 Sample Processor
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
272
￭￭￭￭￭￭￭￭
900 Touch Control
￭ External positions (only with robotic arm and mounted Swing Head,
see Chapter 28.7.3, page 274)
For each of the four possible external positions, a specific work posi-
tion can be defined. Shift position and rinse position can only be
defined for all four external positions commonly. A special position is
not possible.
Proceed as follows to assign the current lift position to a specific lift posi-
tion:
1
Move to lift position
￭ Enter the desired lift position in mm and tap on [Start].
The lift moves to the desired lift position.
2
Assign lift position
￭ Tap on [Assign lift pos.].

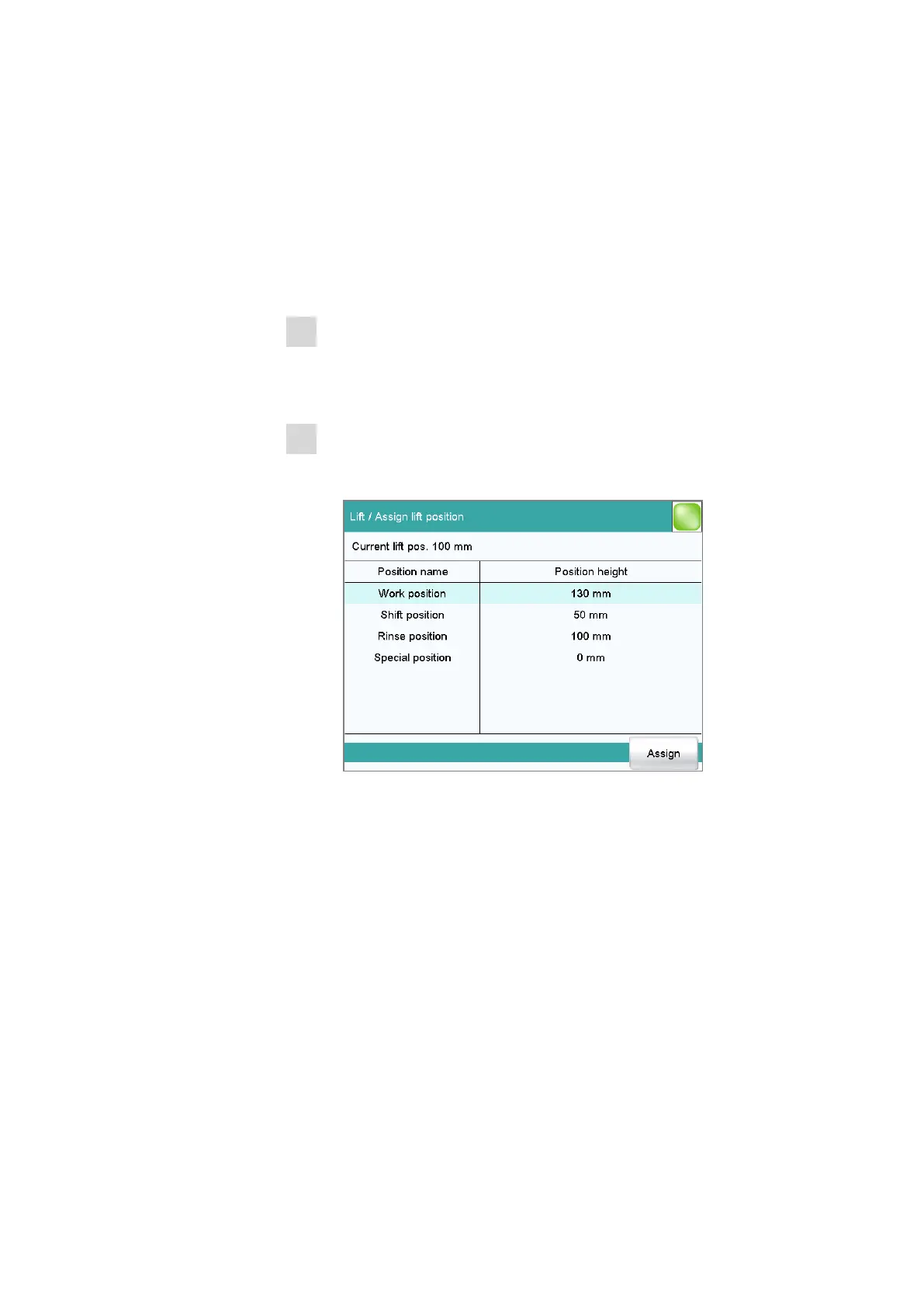

The Lift / Assign lift position dialog is displayed:
￭ Select the desired specific lift position and tap on [Assign].
The current lift position is assigned to the specific lift position.
28.7.2 Moving to a rack position
Manual control: Sample Processor ▶ Rack position
