Gas inlet ports
(1 through 6)
Used to connect up to six analysis gas supplies to the
analyzer. When measuring free space, any one of the ports
may be used for helium.
Controls, Indicators, and Connectors ASAP 2460 Operator’s Manual
1-8 246-42800-01 - Aug 2013
Back Panel

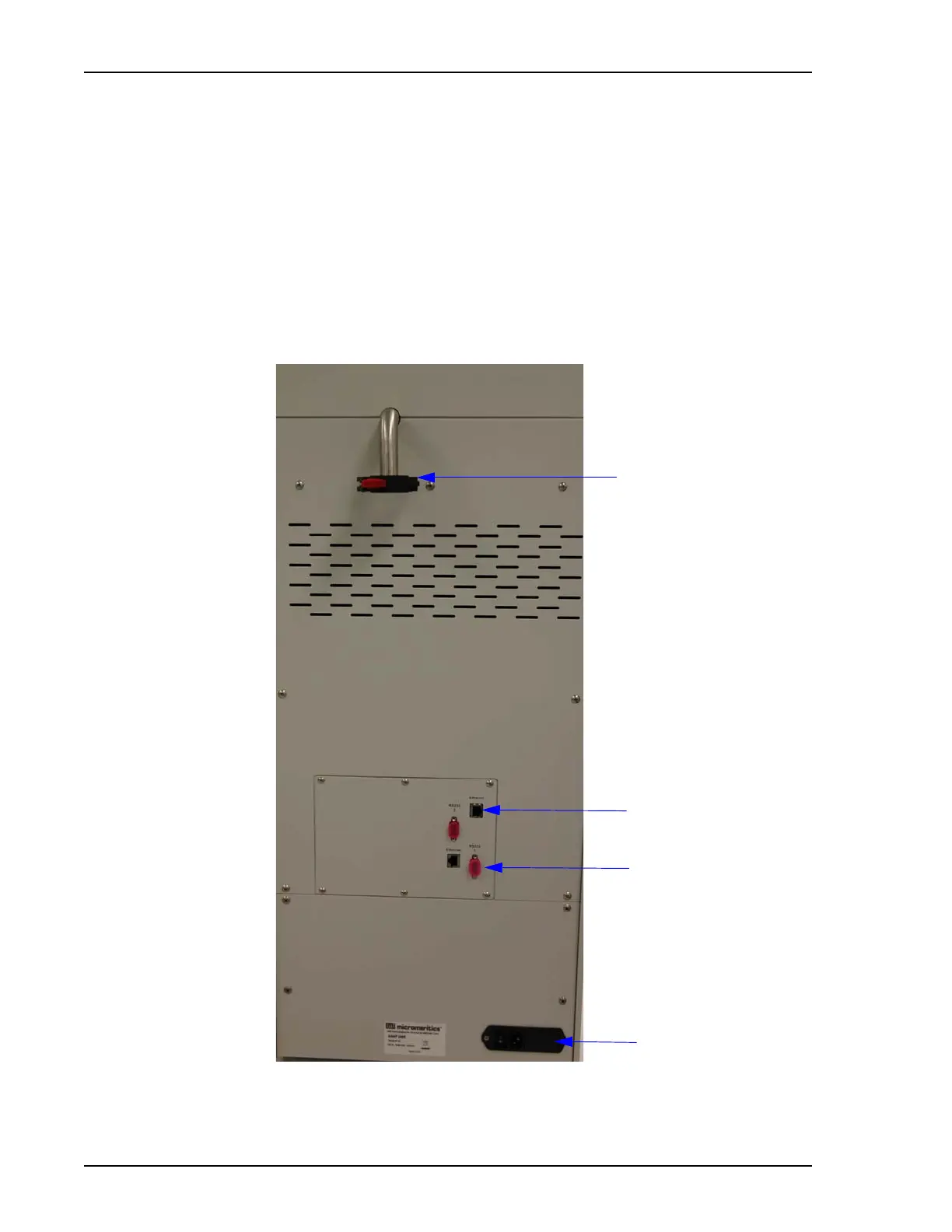

The back panel of the Master Unit contains the connectors described below. Auxiliary units do not
have connectors on the back panel.
Vacuum pump port
Ethernet connector
RS232 connector
Power supply and
On/Off switch
