6 Maintenance and Troubleshooting

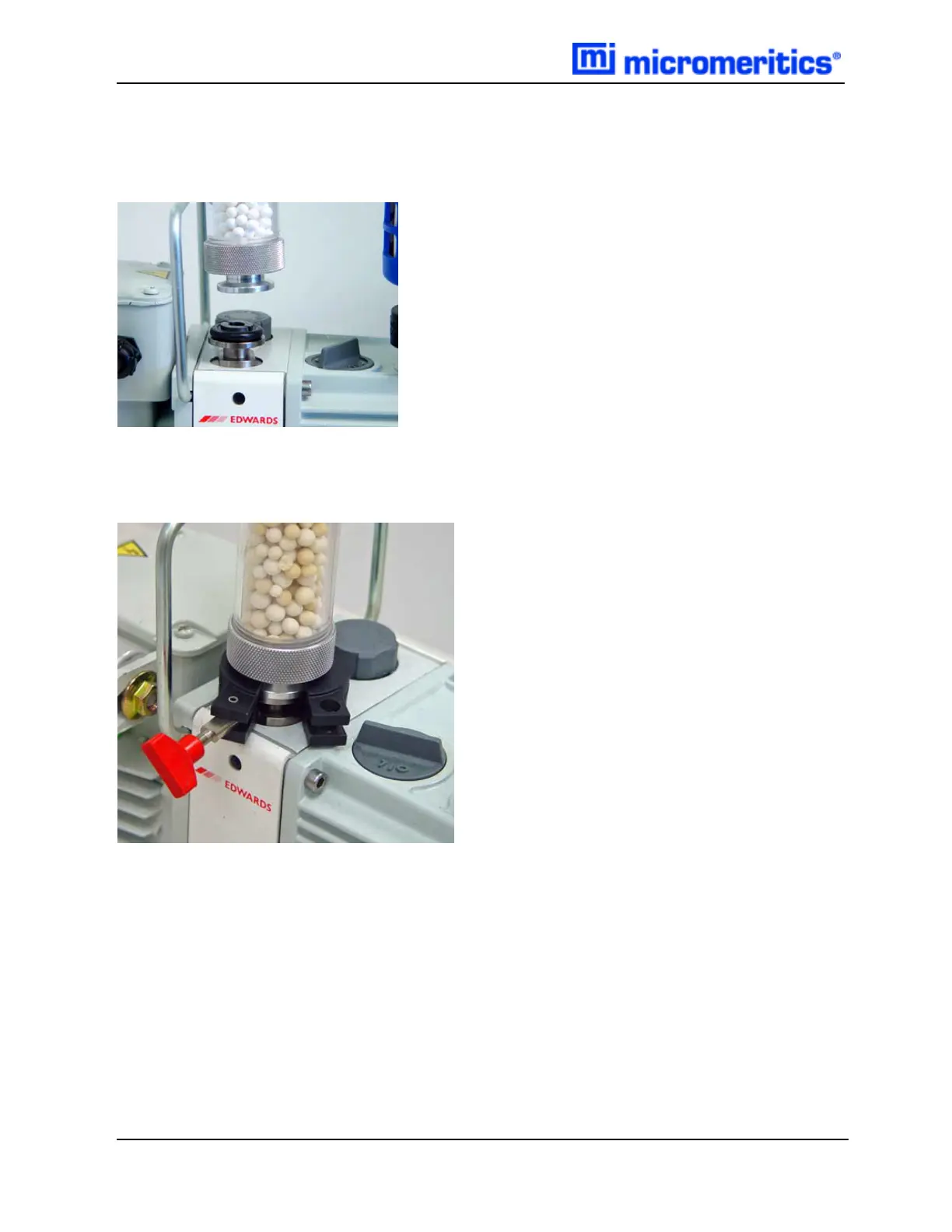

rings. Use the one with the smaller opening at the intake port.
12. Place the centering ring on the intake port.
13. Place the trap on the centering ring.
14. Open the clamp and place it around the flange of the intake port and the flange of the trap. Swing
the clamp fastening screw toward the intake port until it fits into the slot in the other half of the
clamp. Tighten the wing nut securely by hand.
15. Reconnect the hose from the analyzer to the oil vapor trap.
a. Place the clamp around the vacuum pump hose flange and vapor trap.
6 - 10 Smart VacPrep Operator Manual
