Routine Maintenance ASAP 2460 Operator’s Manual
7-26 246-42800-01 - Aug 2013
4. From the View dropdown list, select either Operation, Instrument Log, or Instrument
Schematic.
5. A series of prompts display on the screen when operator response is required. Answer these
prompts.

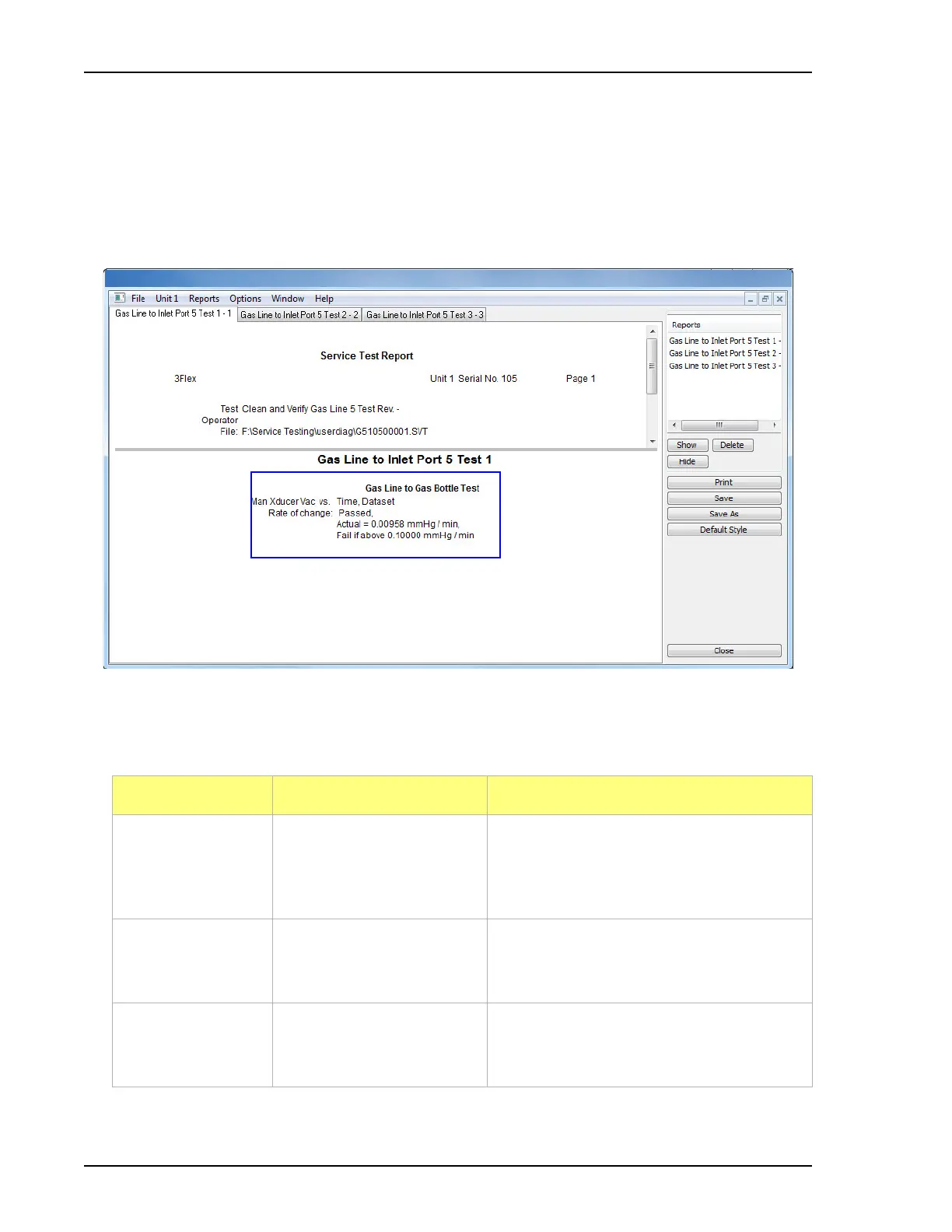

6. A popup window indicates the test is complete. Click OK. The reports display on the screen.
7. Click each tab and look for a reading of Passed. A Passed reading indicates all valves are in
proper state for operation. If any test shows a Failed reading, refer to the following table for the
location of the gas leak.
Tab Test If Failed status, then...
Gas Line to Inlet
Port [n] Test 1
Gas Line to Gas Bottle Test This test will show a reading of Failed if any
of the other tabs has a Failed reading.
Correct the failed connection and rerun the
test.
Gas Line to Inlet
Port [n] Test 2
Gas Line to Isolation Valve
Test
Check for a leak between the gas line and the
isolation valve. Correct the problem and
rerun the test.
Gas Line to Inlet
Port [n] Test 3
Isolation Valve To Bottle
Leak Rate
Check for a leak between the isolation valve
and the gas bottle. Correct the problem and
rerun the test.
