To Move Slide-out Room Manually:
1. Retract the motorhome leveling jacks (see Leveling Jacks).
2. Access the Slide-out room hydraulic pump in the generator compartment on the curbside.
3. Use the ¼" Nut Driver on the end of the reservoir cap, to turn the release nuts on the sole-
noids counterclockwise. Do Not exceed 4 ½ revolutions, as damage to the solenoids may
result. The room may move slightly when valves are opened and internal pressure is
released. The reservoir cap can be used at a ¼" nut driver. Remove cap from top of tank.
4. Line up equal distance along the outside wall. Do not push on the flange.
5. In synchronized movements, push the room in with repeated attempts.
6. Close the release nuts when the room is fully retracted.
NOTE:
The Slide-out room is heavy and will require several people to push the room into
position. When the Slide-out room is in the fully retracted position, tighten the release
nuts to hold the room in place. Do not over tighten.

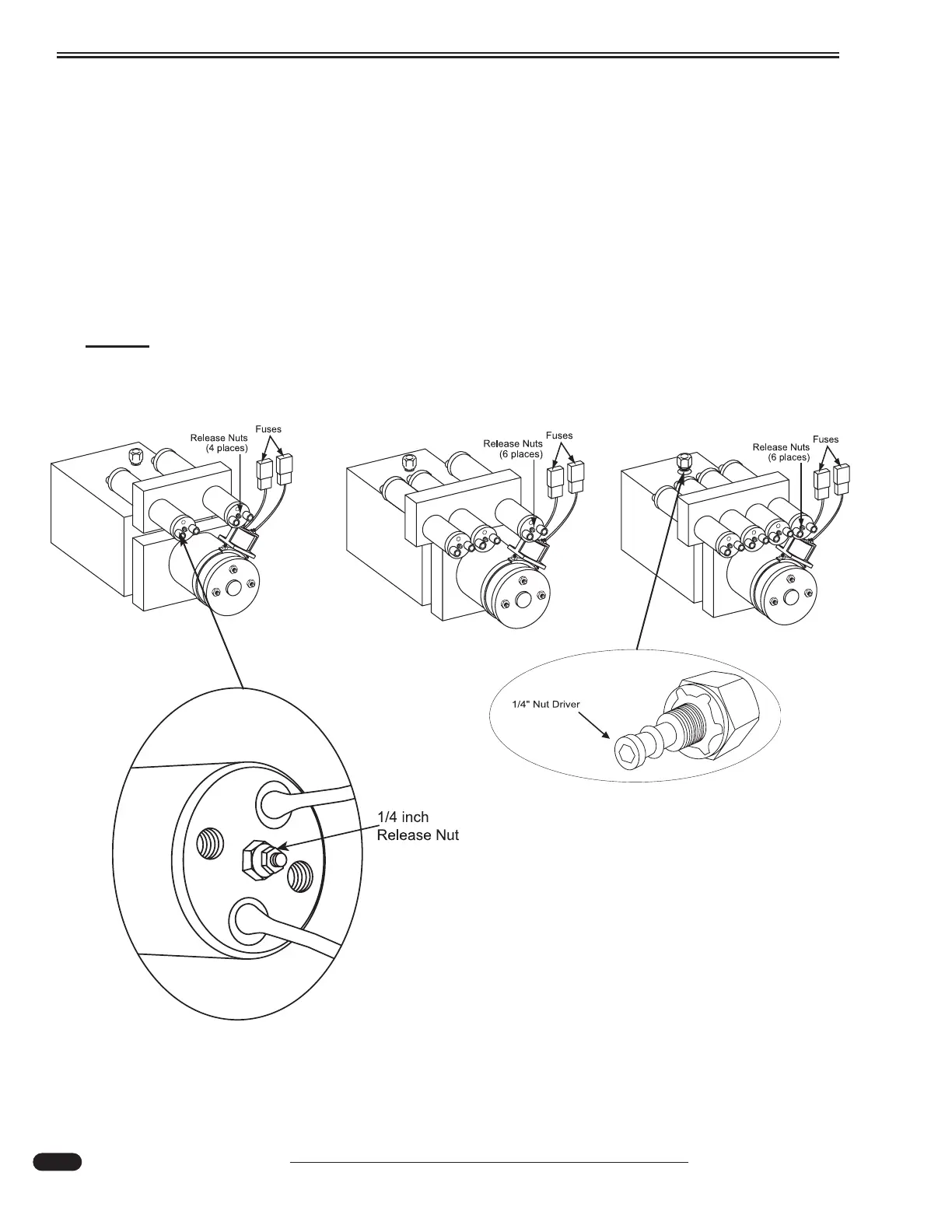

Reservoir Cap
RM01C007
Hydraulic Pump w/ 1 hydraulic slide
Hydraulic Pump w/ 2 hydraulic slide
Hydraulic Pump w/ 3 hydraulic slide
090342f
RM01C0007c
Release Nut
