MRF-200 Receiver
How it Functions:
• The MRF-200 receiver converts radio frequency sig-
nals received from the MX-800 to infrared signals to
operate each of the Home Entertainment components.
• The receiver is plugged into a 120 Volt AC outlet and
requires the motorhome be hooked to shore power, the
generator running or the inverter operating.
• There is one receiver in the cabinet above the co-pilot
seat and one receiver behind the TV in the bedroom.
• On the bottom of each receiver is an ID# dial that is
set at the factory. The living room receiver is set on 1,
the bedroom receiver on 5. Press FR TV from the
main menu on the MX-800 universal remote and com-
munication will automatically go to the front compo-
nents. Press BED TV and the remote will operate the
rear components.
• Located in the front of the IR sensor of each compo-
nent is a flasher. The flasher emits IR light and the
component responds to the corresponding signal.
• On the left of the MRF-200 is the power LED. The red
status LED lights when the MRF-200 receives an RF
signal from the MX-800.
031113
031113b

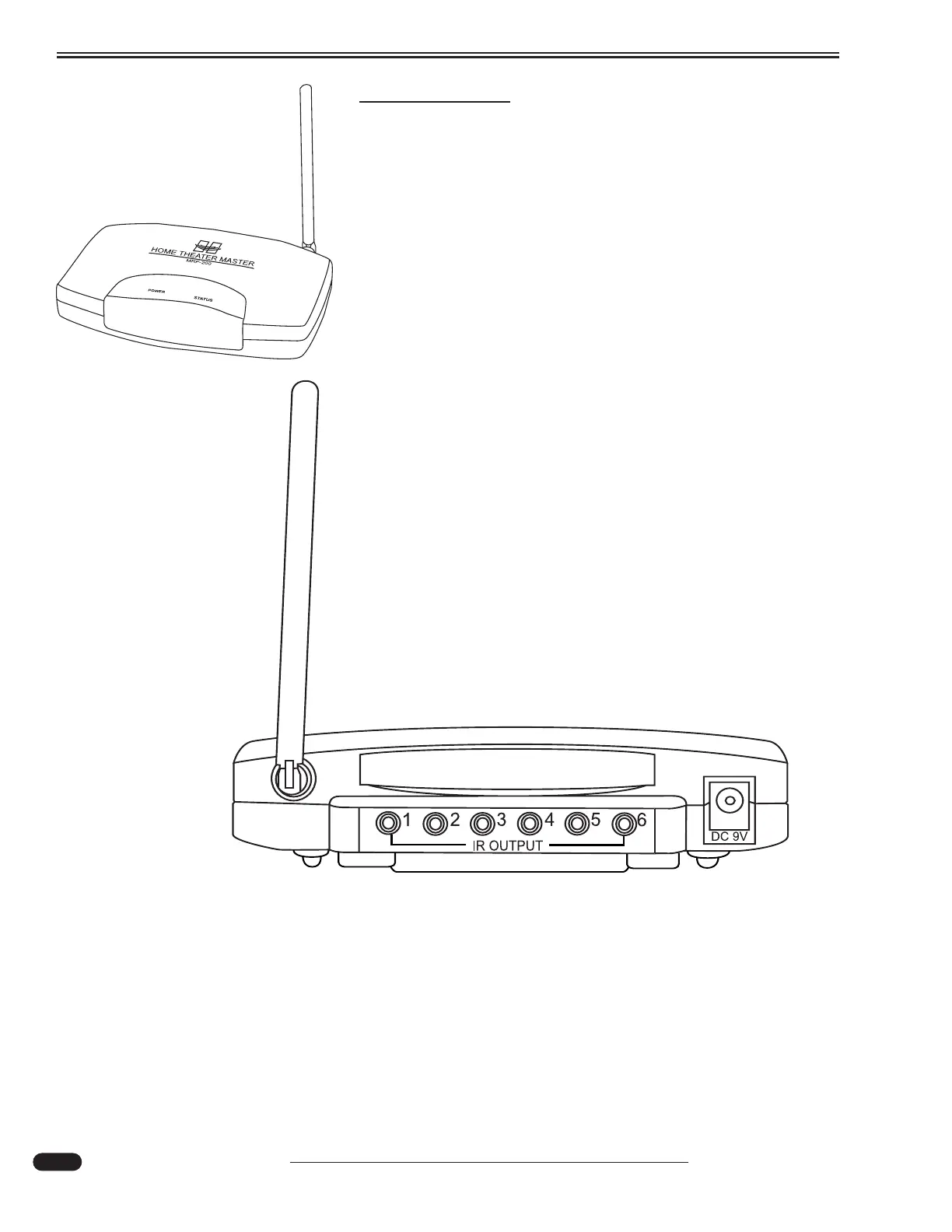

Back View
MRF-200 Receiver
Located in cabinet above co-pilot seat and in bedroom entertainment cabinet.
