Section 10 --- Chassis Information
The Executive 2005
458

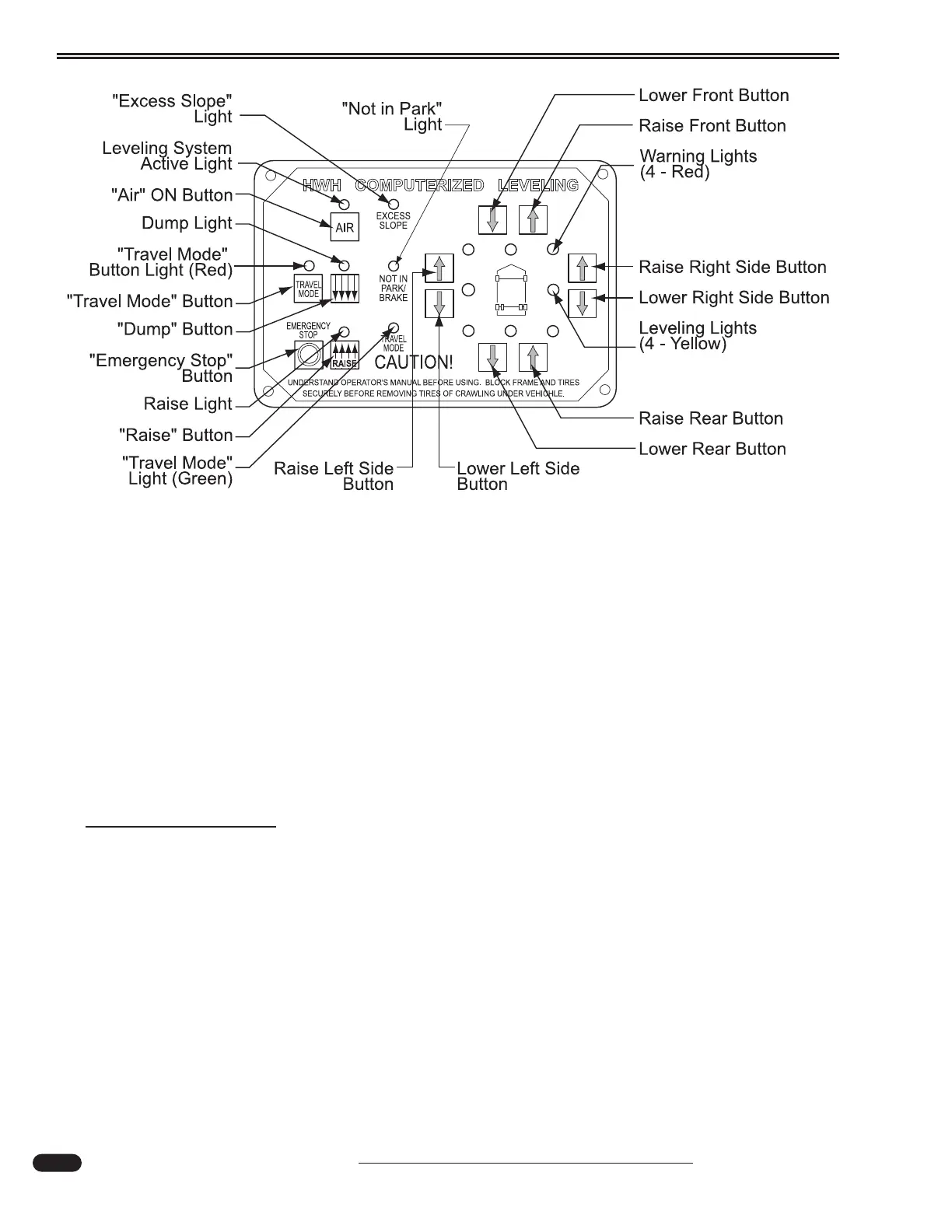

Not in Park Brake = Illuminates when the park brake is not engaged and the AIR button is
pressed.
Up arrows = Used for manual leveling. Press and hold an UP arrow to raise the corresponding
side.
Down arrows = Used for manual leveling. Press and hold a DOWN arrow to lower the correspon-
ding side.
Excess Slope = Indicates the system has attempted to level the motorhome, but the surface is too
steep.
Panel Indicator Lamps:
Yellow Level Indicator Lamps = Illuminated lamp indicates that side, end or corner of the
motorhome is low. When yellow level lights are extinguished, the motorhome is level.
Red Warning Indicator Lamps = Illuminate when system is set to Manual or Automatic Level to
indicate that the Height Control Valves (HCV) are inoperable.
080262C
