Motion Control Engineering Motion 4000 User Manual

Installation
2-64 Manual # 42-02-2P24
Bottom Terminal and ETS Magnets
Magnets marked with a stripe to differentiate them from door zone magnets are used at the top
and bottom terminals for Motion 4000 installations. 5-inch striped magnets are also used for
physical ETS when required. If reduced stroke buffers are used, cam operated ETSL switches
may also be required. Please refer to “LS-EDGE Steel Tape” on page 3-5.

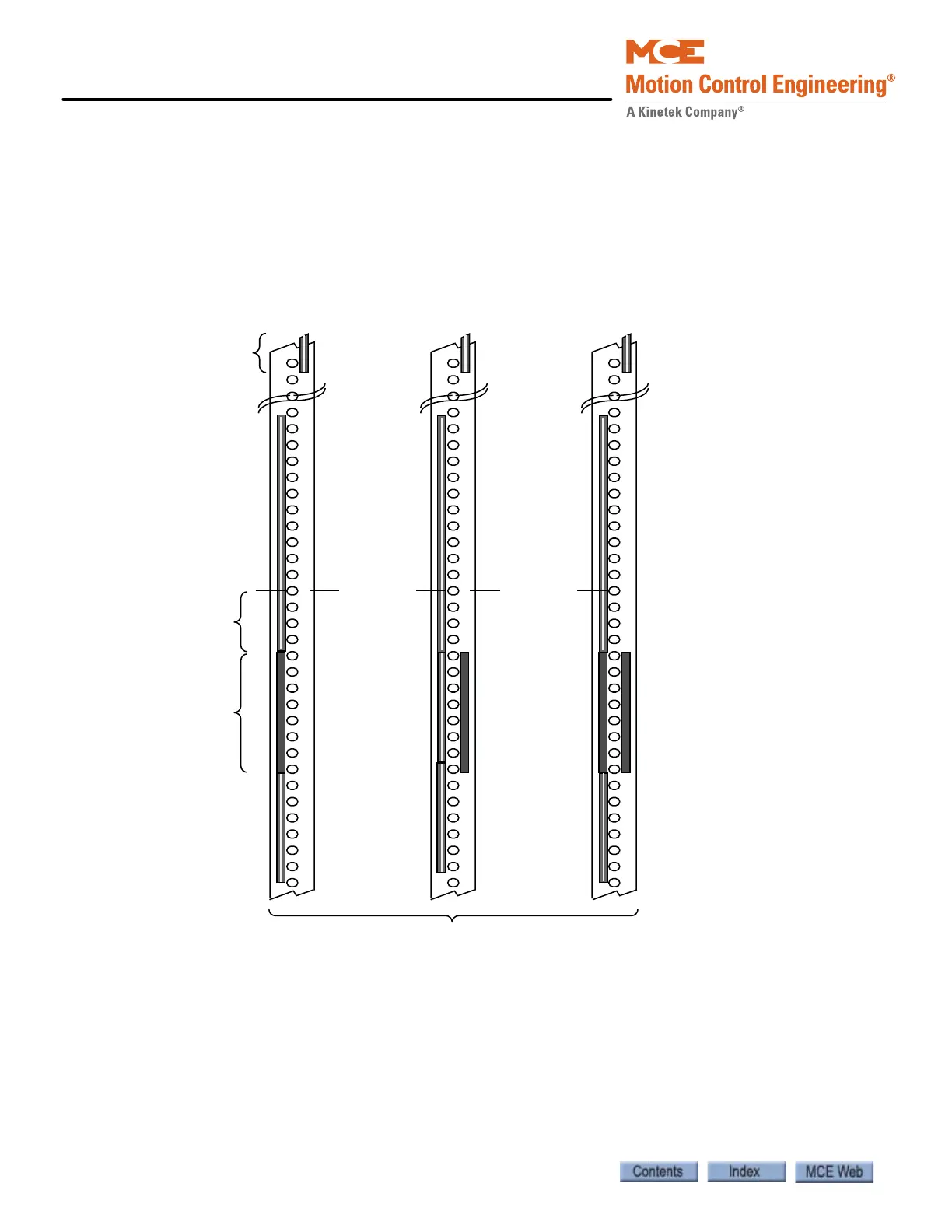

Figure 2.21 Motion 4000 ONLY: Bottom Terminal and ETS
1. Place a 24-inch, striped magnet to the left of the tape perforations, just above the bot-
tom door zone magnet as shown above. The bottom of the 24-inch magnet must be even
with the top of the door zone magnet.
2. For jobs with rear doors only, stack two 5-inch striped magnets below the 24-inch mag-
net. Leave NO GAPS between the striped magnets.
3. For jobs with front or front and rear doors, stack one 5-inch striped magnet directly
below the Front Door Zone magnet. Leave no gaps between the ends of the magnets.
BOTTOM TERMINAL
FRONT
DOORS
5” STRIPED
MAGNET
5” STRIPED
MAGNET
5” STRIPED
ETS MAGNET
IF ETS
MAGNETS
USED
5” STRIPED
ETS MAGNET
5” STRIPED
ETS MAGNET
5” STRIPED
MAGNET
5” STRIPED
MAGNET
24” STRIPED
MAGNET
24” STRIPED
MAGNET
24” STRIPED
MAGNET
2 5/8” TO
TOP OF
DZ MAGNET
5 1/2” DZ
MAGNET
SCRIBE SCRIBE
REAR
DOORS
FRONT &
REAR
DOORS
