Installation
2-78 Manual # 42-02-2P24
Left to Right Rail Side Reversal
As shipped, the kit is configured to mount the sensor head on the left side of the rail (as you are
facing the rail blade). The kit can be reconfigured for right side mounting as described here. The
illustration shows the components as if you were looking “through” the bottom of the bracket.

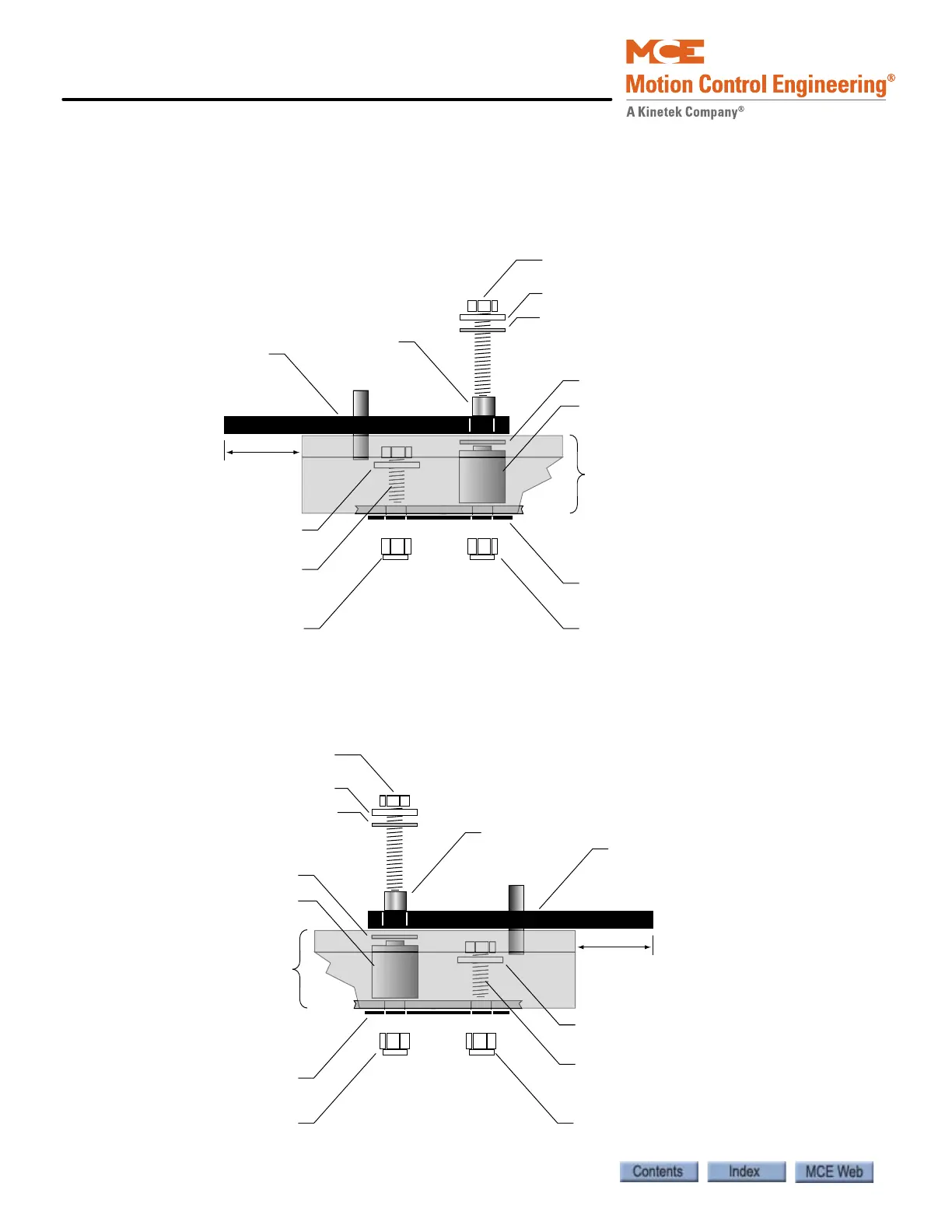

Figure 2.30 Side Reversal, Bottom Mount
Channel
Channel
Steel shoulder bushing
Steel shoulder bushing
Switch plate
Switch plate
Pivot plate
Pivot plate
Pivot bushing
Pivot bushing
3/8 lock nut
3/8 lock nut3/8 lock nut
3/8 lock nut
Composite bushing
Composite bushing
Composite bushing
Composite bushing
3/8 steel flat washer
3/8 steel flat washer
3/8 steel flat washer
3/8 steel flat washer
3/8 x 2 bolt
3/8 x 2 bolt
3/8 x 3/4 bolt
3/8 x 3/4 bolt
1-1/4 inches
1-1/4 inches
LEFT
RIGHT
