F4: Messages and Floor Labels
4-61
4
Motion 4000
• Initialize all Labels
• DEFAULT LABELS [S] - Yes [N] - No
• Use this function to initialize all labels to factory defaults.
• If you do not wish to complete the command, press and hold -, then press N to exit.

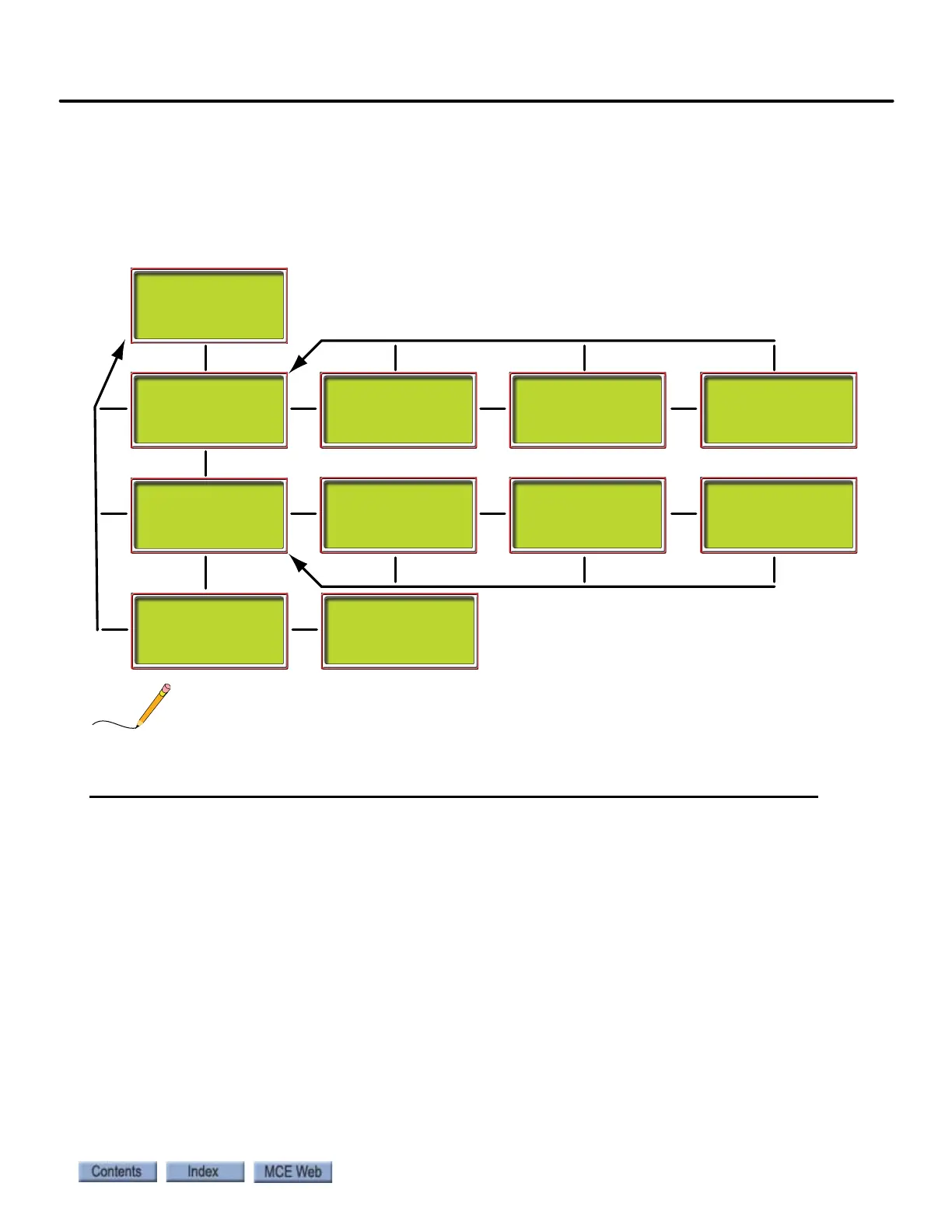

Figure 4.2 PI Entry Process
Note
Spaces for three characters (three character display) are provided. If the display has only two
characters, use the two right most spaces (ones and tens place) and leave the left most space
(hundreds place) blank.
* MESSAGES AND *
* FLOOR LABELS *
- MODIFY FLOOR -
- LABELS -
FLOOR LABEL FOR
LANDING 01: 001
S
S
-MODIFY MESSAGE-
- LABELS -
N
N
FLOOR LABEL FOR
LANDING 02: 002
+/-
+/-
FLOOR LABEL FOR
LANDING 02: B
S*
-INITIALIZE ALL-
- LABELS -
FIRE MAIN
NUMBER 01: FM
S
S
FIRE ALTERNATE
NUMBER 02 FA
+/-
+/-
FIRE ALTERNATE
NUMBER 02 AF
S*
NN N
DEFAULT LABELS
[S]-YES [N]-NO
N
N
N
N
NN
