Installation
2-58 Manual # 42-02-2P24
Top and Bottom Hangers

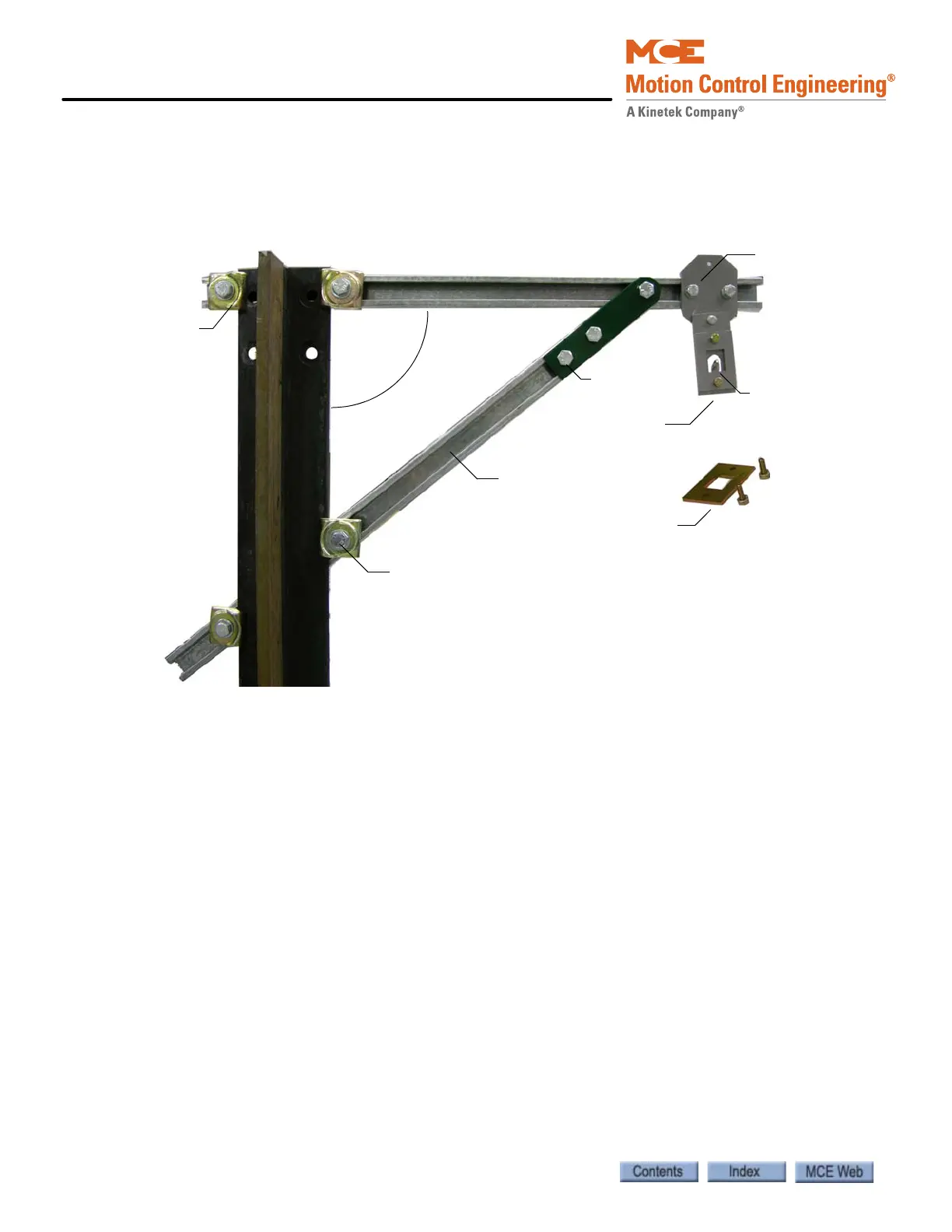

1. Attach the uni-strut for the top tape hanger across the back of the selected guide rail
using the forged rail clips and hardware provided.
2. Attach the diagonal brace as shown below (only provided for tape length exceeding 150
feet).
3. Adjust extended strut length as required (tape suspended as close to the guide rail as
adequate clearances will allow to reduce loading on end of unistrut). Secure rail mount-
ing hardware (40 - 50 ft lbs.). (The tape hanger slides in the strut for fine adjustment
later.)
4. Hook the tape on the protruding tab. Secure the top tape clamp in place (10 - 12 ft lbs.).
5. Record the distance from the rail edge to the tape edge. ________ in/mm.Bottom
Hanger
The bottom hanger provides tension to minimize vibration while allowing expansion/contrac-
tion across seasonal temperature ranges. Ensure that the tape to rail edge measurement
matches that recorded for the top hanger so that the car tracks the tape accurately. Do not use a
plumb in case the rail stack is not exactly aligned. The scale values are provided as a guideline
only. They are not calibrated. Adjust to suit the installation.
90 degrees
Ta p e ha n g e r
Hang tape
on tab
19 - 25 ft lbs
40 - 50 ft lbs
40 - 50 ft lbs
30 - 40 ft lbs
Top tape clamp hardware,
10 - 12 ft lbs
LS-TAPESTRUT-EDGE
To Next Page
