Setting Motion/Position Parameters
3-11
3
Motion 4000
How to Register Calls from the Controller
To place a call from the controller (or the hand-held):
• Place the F5 function switch up (all others down).
• Press S until Front Call Registration is displayed.

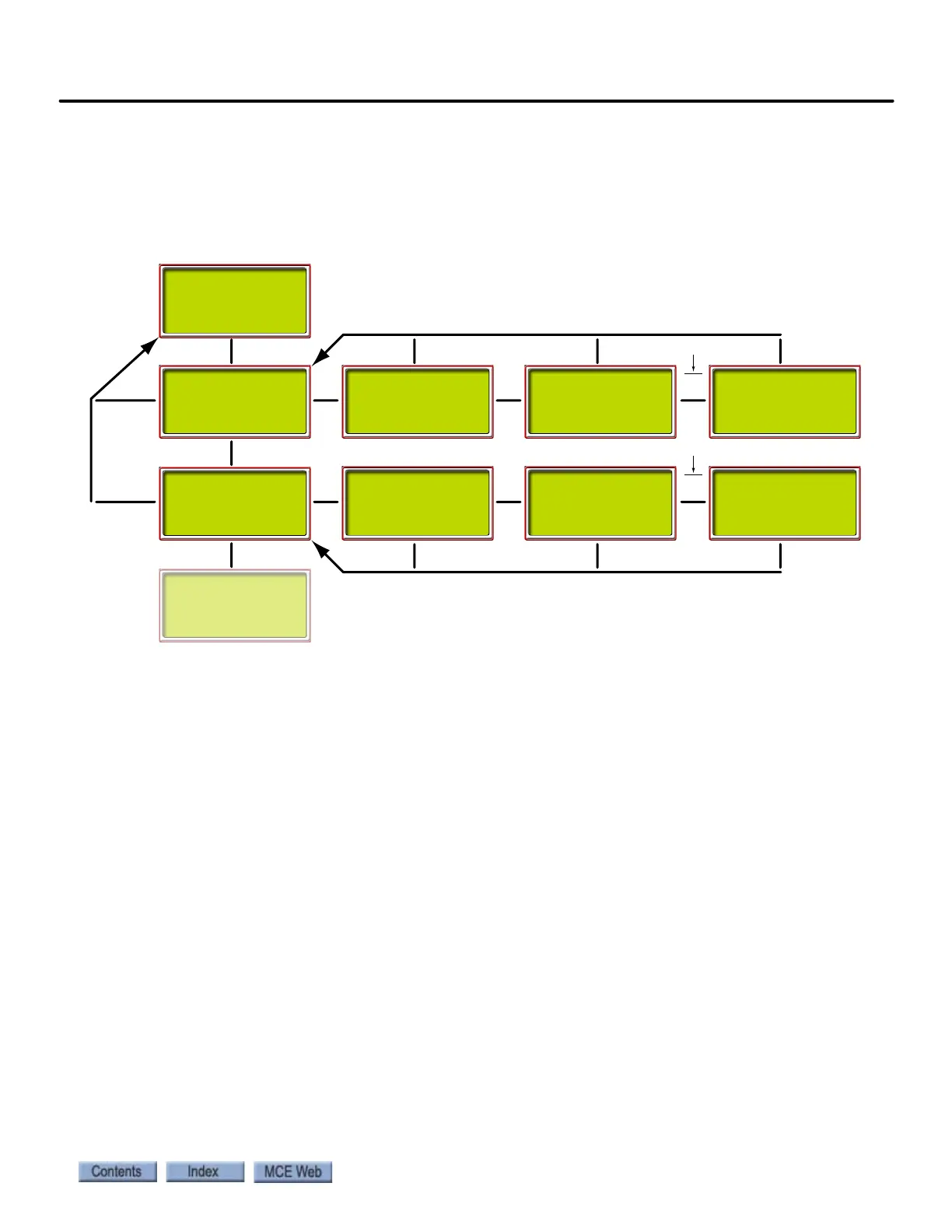

• Refer to the illustration below.
• +/- to increment or decrement floor numbers
• Press and momentarily hold S to register calls; displays [ON] while held
• Press + and N together to back out of the current display
* CONTROLLER *
*UTILITIES MENU*
- FRONT CALL -
- REGISTRATION -
FRONT CAR CALL:
LANDING 01 [OFF]
S
S
- REAR CALL -
- REGISTRATION -
N
N
FRONT CAR CALL:
LANDING 02 [OFF]
+/-
FRONT CAR CALL:
LANDING 02 [ON]
S
- VIEW -
- DATE AND TIME-
REAR CAR CALL:
LANDING 01 [OFF]
S
REAR CAR CALL:
LANDING 02 [OFF]
+/-
REAR CAR CALL:
LANDING 02 [ON]
S
+ and N + and N + and N
+ and N
+ and N
+ and N
+ and N + and N
