Load Weigher
3-25
3
Motion 4000
Installing the Sensors
Install sensors using the leverage tool supplied. In some instances it may be necessary to use an
extender on the handle to gain more leverage.
Typically the sensors are mounted on the wire
ropes directly above the cartop hitch. However,
with 2 to 1 roping the sensors must be mounted
below the dead-end hitch beneath the overhead.
Please refer to “Installation with 2 to 1 Roping”
on page 3-26.

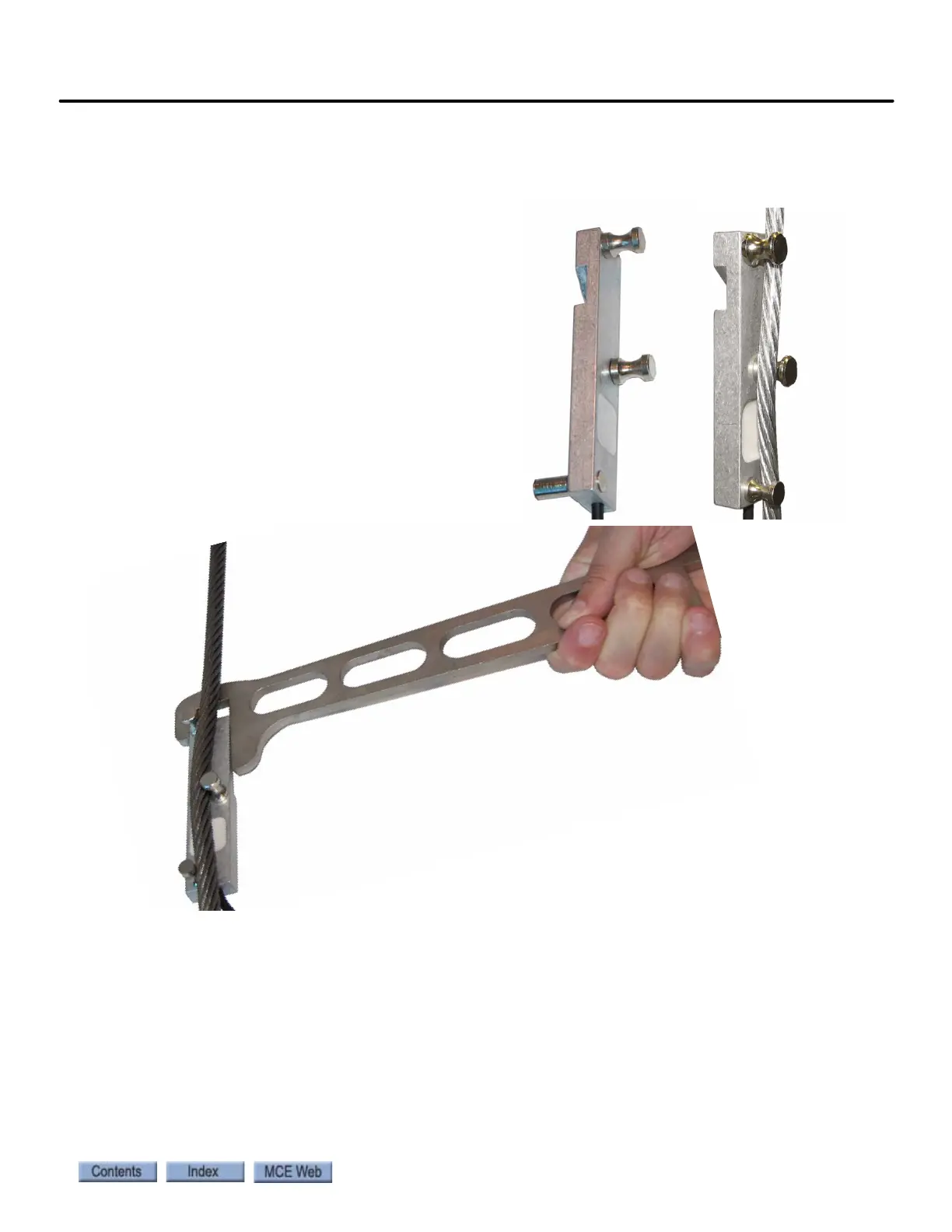

1. Notice that one of the sensor pins moves
in and out. Move the pin to the in posi-
tion as shown.
2. Place the sensor on the wire rope and
apply leverage to rotate the sensor until
the pin can be moved to the out position
as shown.
