Hoistway
For serial hall call, Motion 4000 communicates with hall calls and similar buttons or key
switches through an independent CAN Bus for reliability and easy installation. The hall bus pro-
vides a CAN signal path and 24 V power for the fixtures.
An SC-3HN three-input hall node board allows discrete hall call buttons and indicators to be
connected along a CAN bus to provide serial hall call capability for Motion 4000, greatly reduc-
ing the number of conductors necessary in hoistway wiring bundles. Please refer to “SC-3HN
Three Input Serial Hall Call Node Board” on page 5-72.
Discrete hall calls are supported using HC-UIO Universal I/O boards. Please refer to “HC-UIO
Universal Input/Output Board” on page 5-58.

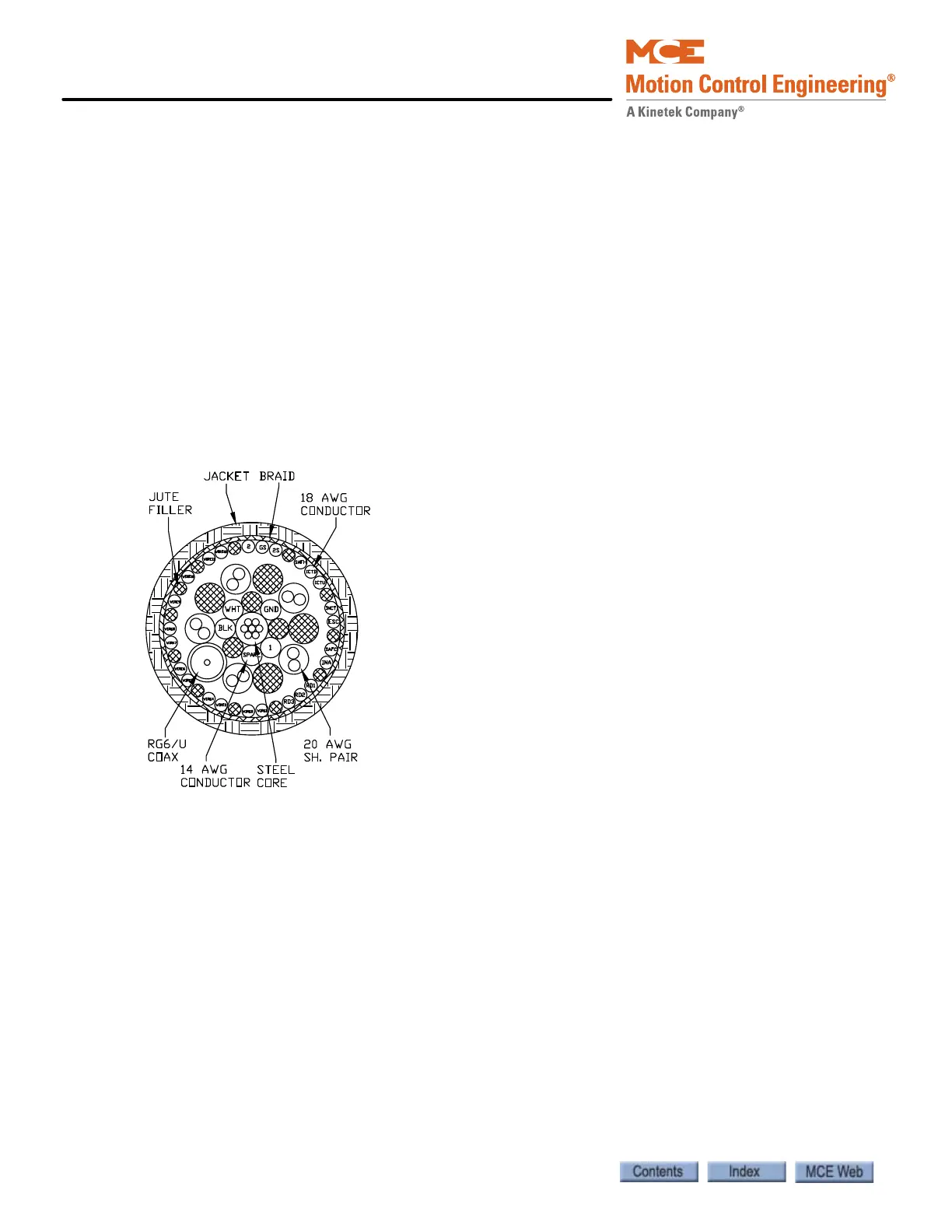

Motion 4000 Specific Traveler Cable
Special traveler cable for Motion 4000 installations is available from MCE. The cable is sized
and labeled to make controller to car connections as simple as possible. MCE PN# 44-03-0034.
