Load Weigher
3-27
3
Motion 4000
Installing the Control Unit
The control unit may be mounted using the DIN mounting bracket supplied or using the holes
in the unit itself. For 1:1 roping, the EMCO unit is mounted on the cartop. For 2:1 roping, the
EMCO unit is mounted in the controller cabinet.

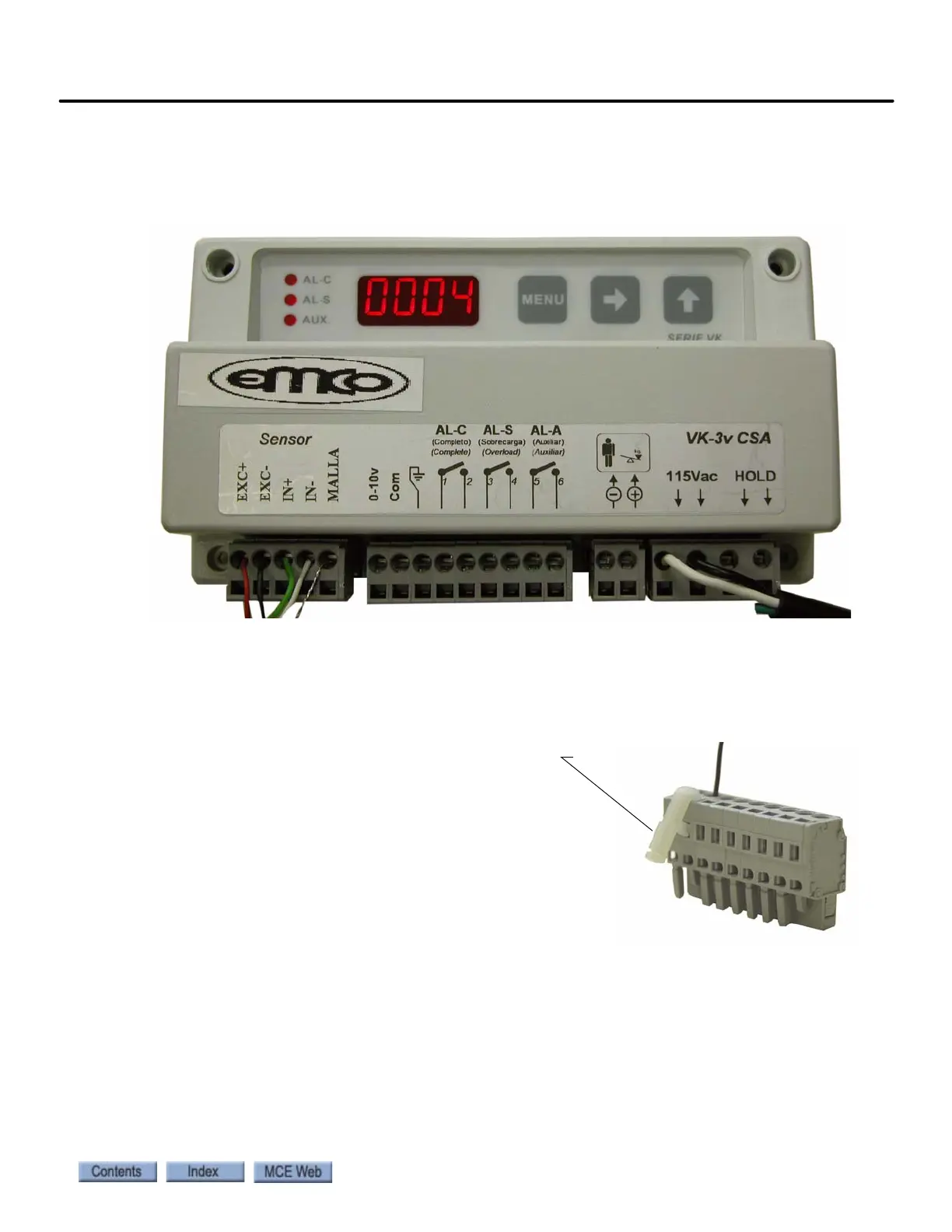

1. EMCO control unit to cartop box (1:1 roping) or controller (2:1 roping):
Connect one of the terminals directly below the 115Vac label to the controller 1 bus
Connect the second terminal directly below the 115Vac label to the controller 2 bus
2. Sensor wires connect to the control unit as indicated on the wire:
red wire to terminal EXC+
black wire to terminal EXC-
green wire to terminal IN+
white wire to terminal IN-
shield wire to terminal MALLA
Use the Terminal tool/key (wire insertion tool), or
a narrow flat blade screwdriver to open the detent
in the terminal connector to allow insertion of the
tinned wires.
For 2:1 roped units, route the sensor wires through the overhead to the machine room. The sen-
sor wires, which are only 6 feet in length, must be extended. Use a terminal block to join wire
lengths and route wires through conduit.
Terminal tool/key
