Motion 4000
Load Weigher
Motion 4000 may use an EMCO rope strain gauge for load weighing. The controller uses the
load weigher input to determine overload conditions and also in conjunction with car call regis-
trations and photo-eye information to make anti-nuisance related decisions.

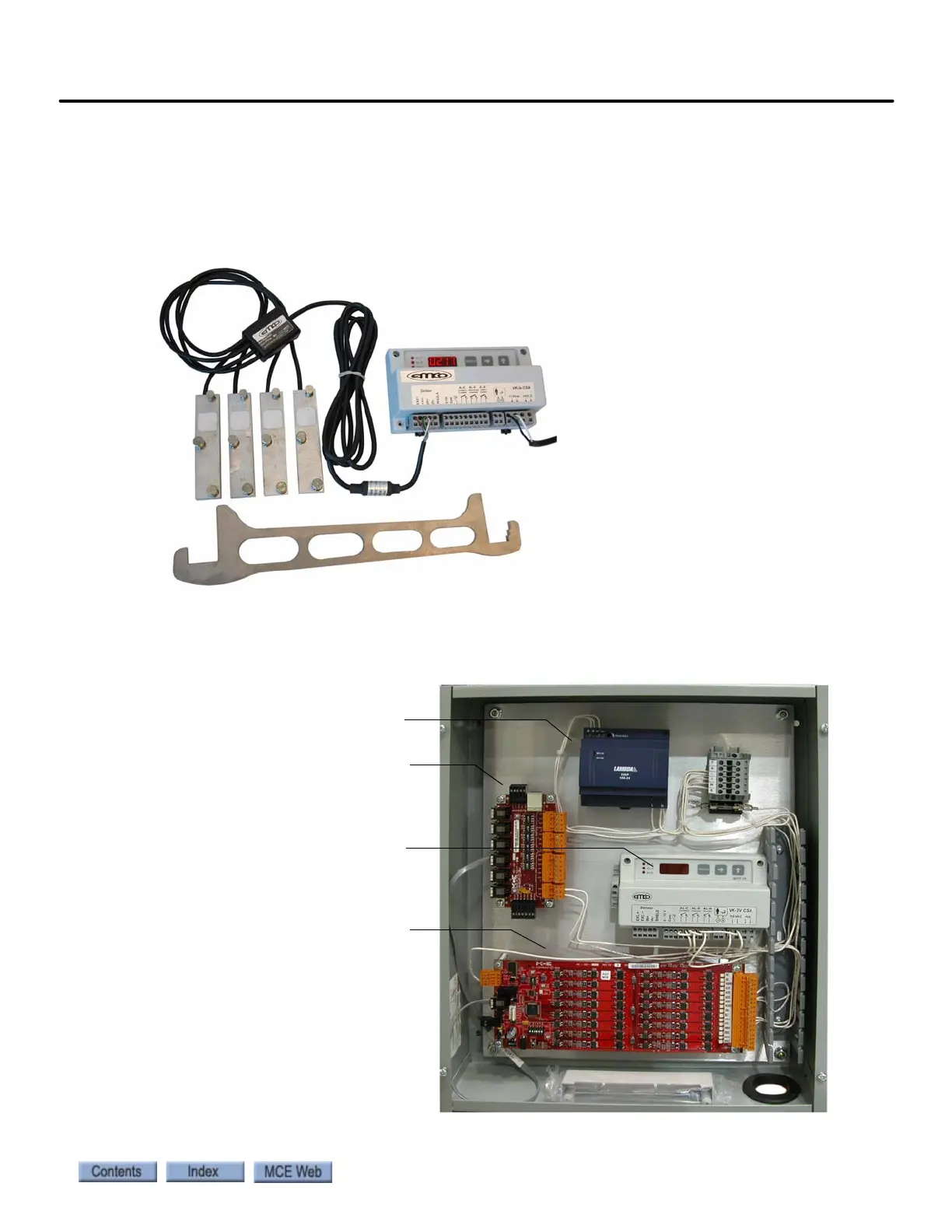

Figure 1.2 EMCO Load Weigher
Cartop Box
A typical Motion 4000 cartop box is pictured below.
Figure 1.3 Motion 4000 Cartop Box
Sensors (1 per rope)
Processing unit
Installation tool
24V Power Supply
Landing System Interface board
EMCO load weigher control unit
Universal I/O board
Car top box dimensions depend upon
required components. Enclosure shown is
4” x 15” x 18” (102 x 381 x 457 mm).
Minimum enclosure is 4” x 8” x 12”
(102 x 203 x 305 mm).
