PC Board Quick References
5-39
5
Motion 4000
PC Board Quick References
This section contains component photographs with call outs, input/outputs, indicators, jump-
ers, test points and other information.

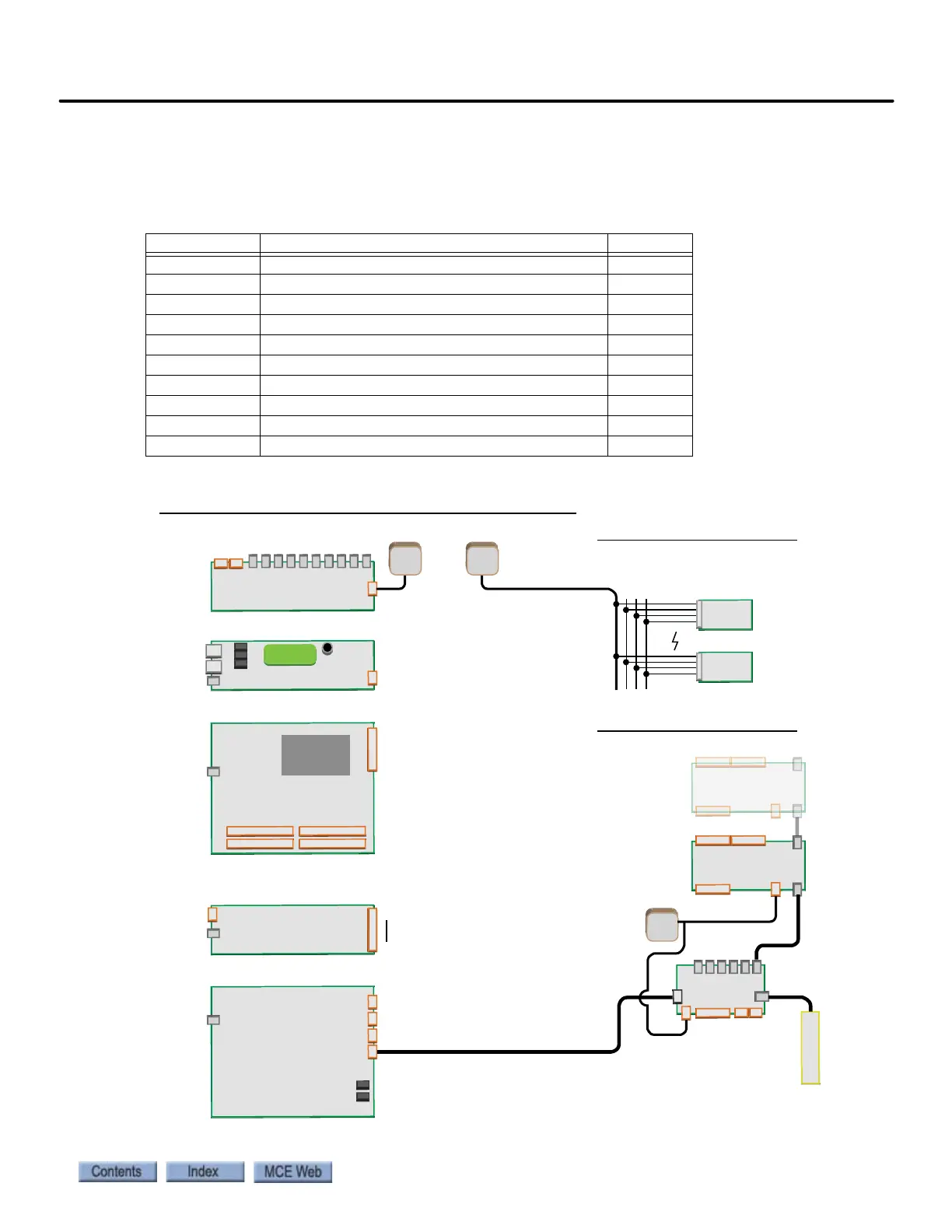

Figure 5.1 Motion 4000 PC Boards
Table 5.2 Motion 4000 Circuit Boards
Board Name See
HC-CHP CAN Hub and Power Supply Board 5-40
HC-CTL Control Board 5-42
HC-MPU Main Processor Unit Board 5-51
HC-RDR Rear Door Board 5-54
HC-UIO Universal Input/Output Board 5-58
ICE-COP-2 Car panel interface board 5-62
MC-CPI Car Panel Interface Board 5-66
MC-LSI Landing System Interface Board 5-71
SC-3HN Three Input Serial Hall Call Node Board 5-72
TC-MPI Motion Processor Interface 5-76
Internal Can
Ethernet A
RS232 (x3)
Keyboard
Ethernet B
CAN Hub (HC-CHP)
CONTROLLER
Main Processor (HC-MPU)
Field Input/Output (HC-UIO)
Landing System I/F
MC-LSI
Car Panel Interface
MC-CPI
or ICE-COP-2
Additional MC-CPI
or ICE-COP-2
(if used)
Motion Processor (TC-MPI)
Controller (HC-CTL)
14 - 18 VAC in
3-Input Hall Call Node
3-Input Hall Call Node
CAN
External
CAN External
Rope Gripper
COP Signals
COP Signals
COP Signals
COP Signals
Door
motion
IN
Door motion
OUT F / R
CAN External
Spare Inputs
SP1 - SP10
Spare Inputs are programmed for
many key functions. The first ten
are on the Controller board. Others
are on Universal I/O boards.
I/O boards are addressable/configurable
using DIP switches. Addresses 0 - 31 are
used for discrete call/floor inputs/outputs.
Addresses 32 and above are used as
assignable Spare I/O for general field
connections.
Car/HW Doors,
Safety strings
Fire, Inspection, Access,
Independent modes;
Door safety inputs
CAN and 24VDC to
other controller boards
Internal Can
Internal Can
Emergency Terminal Switches
Seismic Devices
CAN 1 / CAN 2
Magnetek drive I/F
Torqmax drive I/F
ELGO
Sensor
24VDC
Power
Supply
16V 24-28V
28VDC
Common
CAN L
CAN H
24VDC
24VDC
I/O 1
I/O 16
LCD
INSPECTION
CONTROLS
Internal Can
HALL
CAR
Transformer Power Supply
