Motion Control Engineering Motion 4000 User Manual

Landing/Positioning System
2-63
2
Motion 4000
Top Terminal and ETS Magnets
Magnets marked with a stripe to differentiate them from the door zone magnets are used at the
top and bottom terminals for Motion 4000 installations. 5-inch striped magnets are also used
for physical ETS when required. If reduced stroke buffers are used, cam operated ETSL
switches may also be required. Please refer to “Slowdown Learn, ETS Placement” on page 3-6.

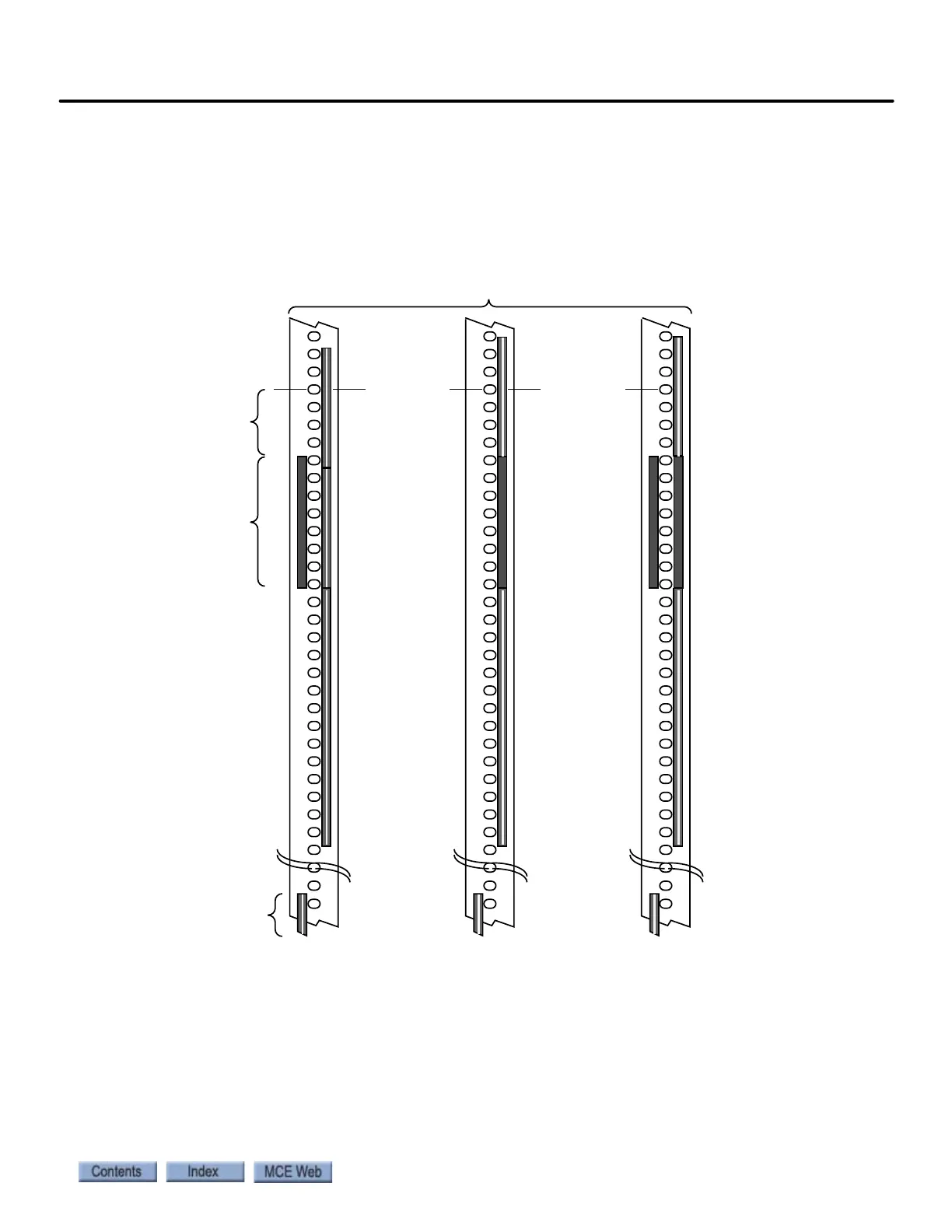

Figure 2.20 Motion 4000 ONLY: Top Terminal and ETS
1. Place a 24-inch, striped magnet to the right of the tape perforations, just below the top
door zone magnet as shown above. The top of the 24-inch magnet must be even with the
bottom of the door zone magnet.
2. For jobs with front doors only stack two 5-inch striped magnets above the 24-inch mag-
net. Leave NO GAPS between the striped magnets.
3. For jobs with rear or front and rear doors, stack one 5-inch striped magnet directly
above the Rear Door Zone magnet. Leave no gaps between the ends of the magnets.
TOP TERMINAL
FRONT
DOORS
5” STRIPED
MAGNET
5” STRIPED
MAGNET
5” STRIPED
ETS MAGNET
IF ETS
MAGNETS
USED
5” STRIPED
ETS MAGNET
5” STRIPED
ETS MAGNET
5” STRIPED
MAGNET
5” STRIPED
MAGNET
24” STRIPED
MAGNET
24” STRIPED
MAGNET
24” STRIPED
MAGNET
2 5/8” TO
TOP OF
DZ MAGNET
5 1/2” DZ
MAGNET
SCRIBE SCRIBE
REAR
DOORS
FRONT &
REAR
DOORS
