F5 Menus
4-113
4
Motion 4000

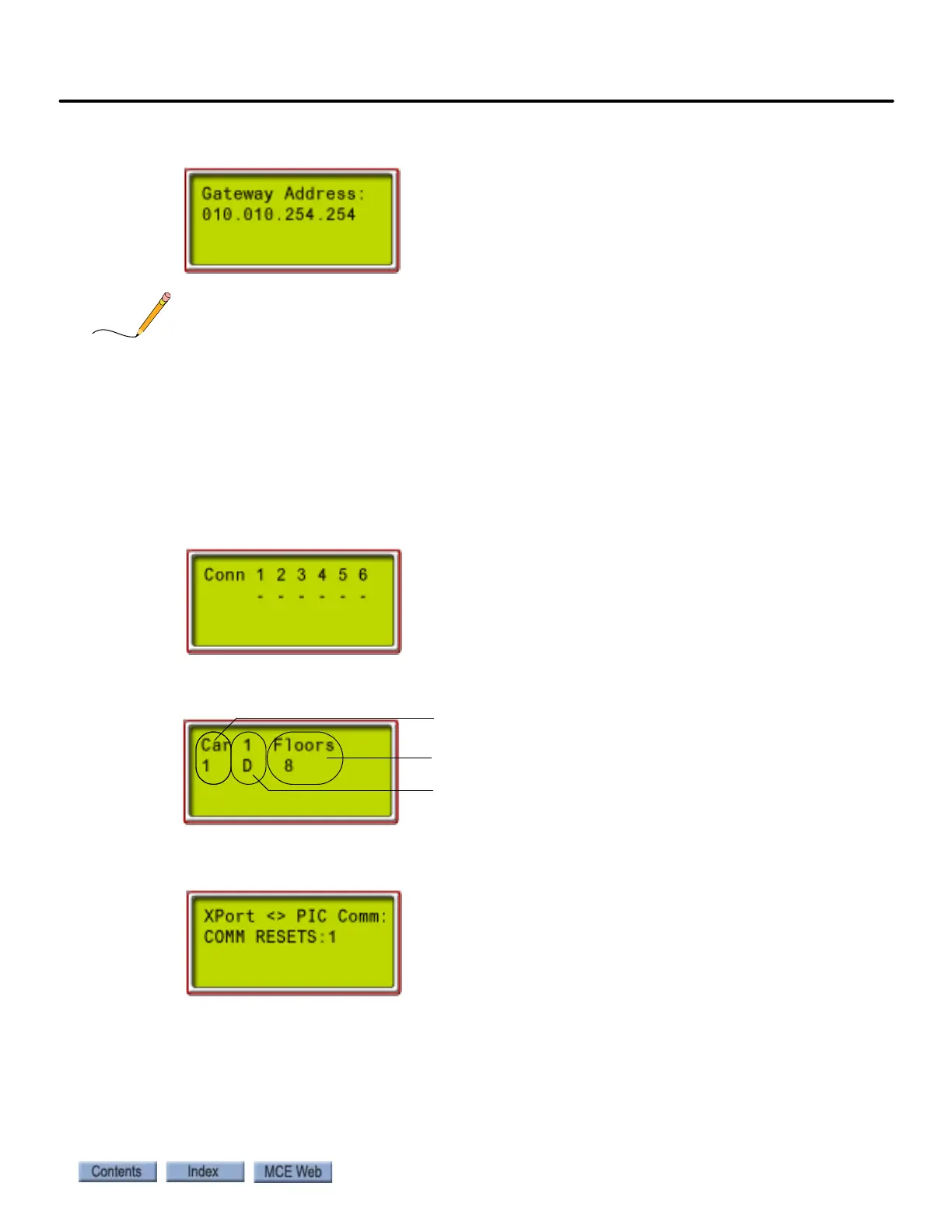

• The gateway screen allows the gateway address to be set:
Any time you make a change to IP address, Subnet Mask, or Gateway Address, you must reset
the HC-CHP board (Device) or the XPort. Refer to the information following.
Diagnostics, Refresh, Reset
The following screens provide diagnostic information, and allow Device and XPort refresh (poll
for current data) or reset.
• The connections screen indicates which client connections are active. The XPort has the
ability to connect to up to six iMonitors. This screen tells you how many connections are
currently active.
• The floors screen provides, left-to-right, the number of cars configured, if the car is a
duplex dispatcher (D) or a local (L), and the number of floors configured.
• The XPort Comm Resets screen indicates the number of times the port has been reset
since the last HC-CHP reset. If it exceeds three, you may have a network problem.
Number of cars configured
Car is dispatcher (D) or local (L)
Number of floors configured
To Next Page
