Installation
2-72 Manual # 42-02-2P24
Sensor Mounting Move the car to the middle of the hoistway. Attach the
sensor to the car. The head must be positioned such that the CAN cable exits the top
of the sensor head.
Exactly how you mount the sensor head will depend on the physical structure of the
car and sling and the position of the tape. Because there is so much variation
between jobs, sensor head mounting brackets are usually fabricated on site. Three
examples follow.
Shims. For the hangers described in this instruction, four shims are pro-
vided. Once you have completed sensor installation, if you find you are very slightly
out of plumb, you may slightly loosen a bolt or nut and insert a shim to correct. If a
component is out more than may be corrected by two or three shims, check major
components, level, and plumb and correct the basic installation.

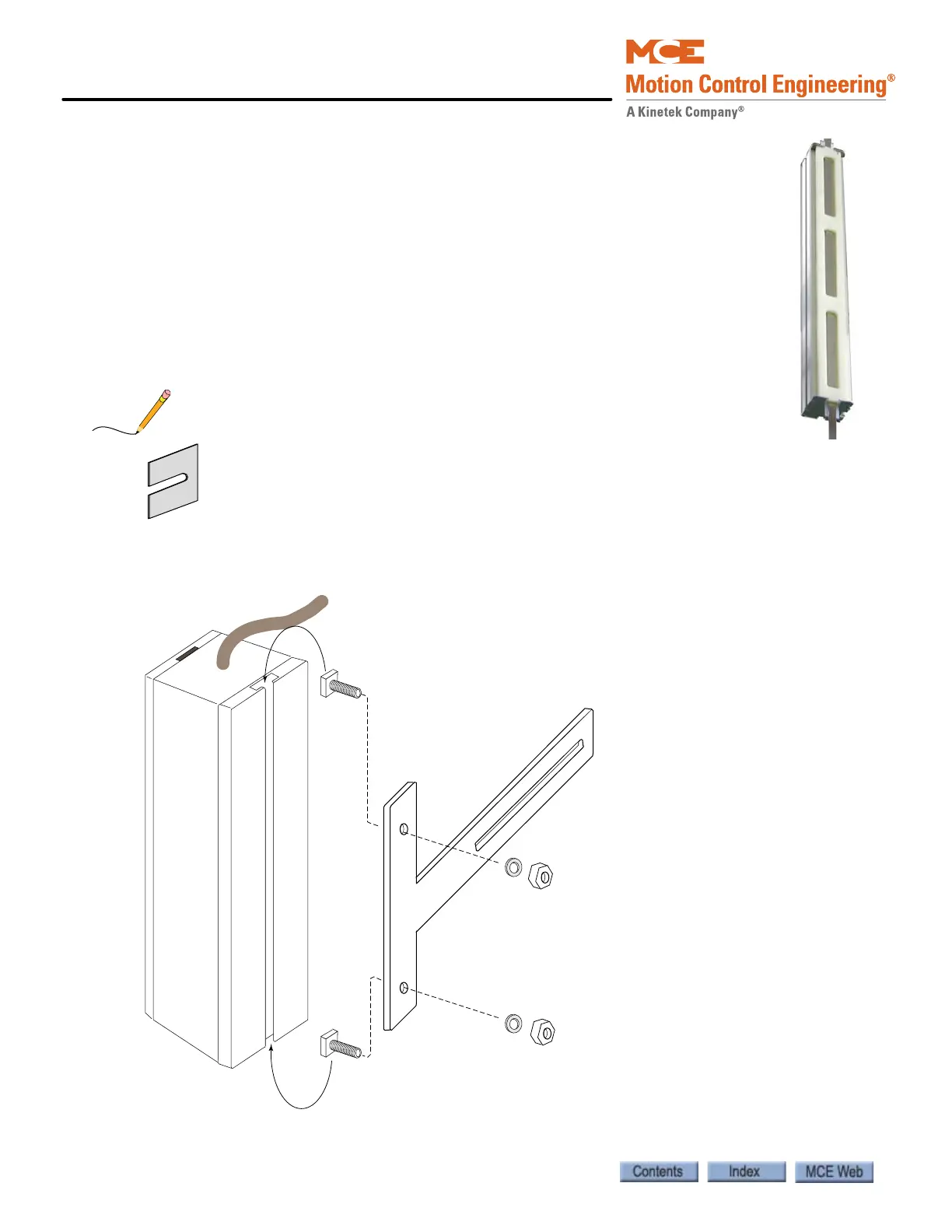

Figure 2.26 Sample Mount A (available option from MCE)
Kit includes “T” strap hanger, two
1/4” square-head bolts, and two
lock nuts.
ELGO-RDRMNT-HDWE
