Final Adjustments
3-24 Manual # 42-02-2P24
Load Weigher
Information from the load weigher is used for pre-torquing and for dispatching decisions, e.g.
light load anti nuisance, heavy load, and overload.
• Installing the Load Cells (Sensors)
• Installing the Control Unit
• Control Unit description
•Load Weigher calibration
• Final calibration
• Installation with 2 to 1 roping
• Verifying zero calibration (empty car weight)
• Troubleshooting
Analog Voltage or Relay Closure
The weigher provides both an analog output (0 - 10V) for analog weighing and relay closure
outputs for discrete weighing inputs. Check the CT (Cartop) drawings in your job prints to see
how your load weigher is connected.

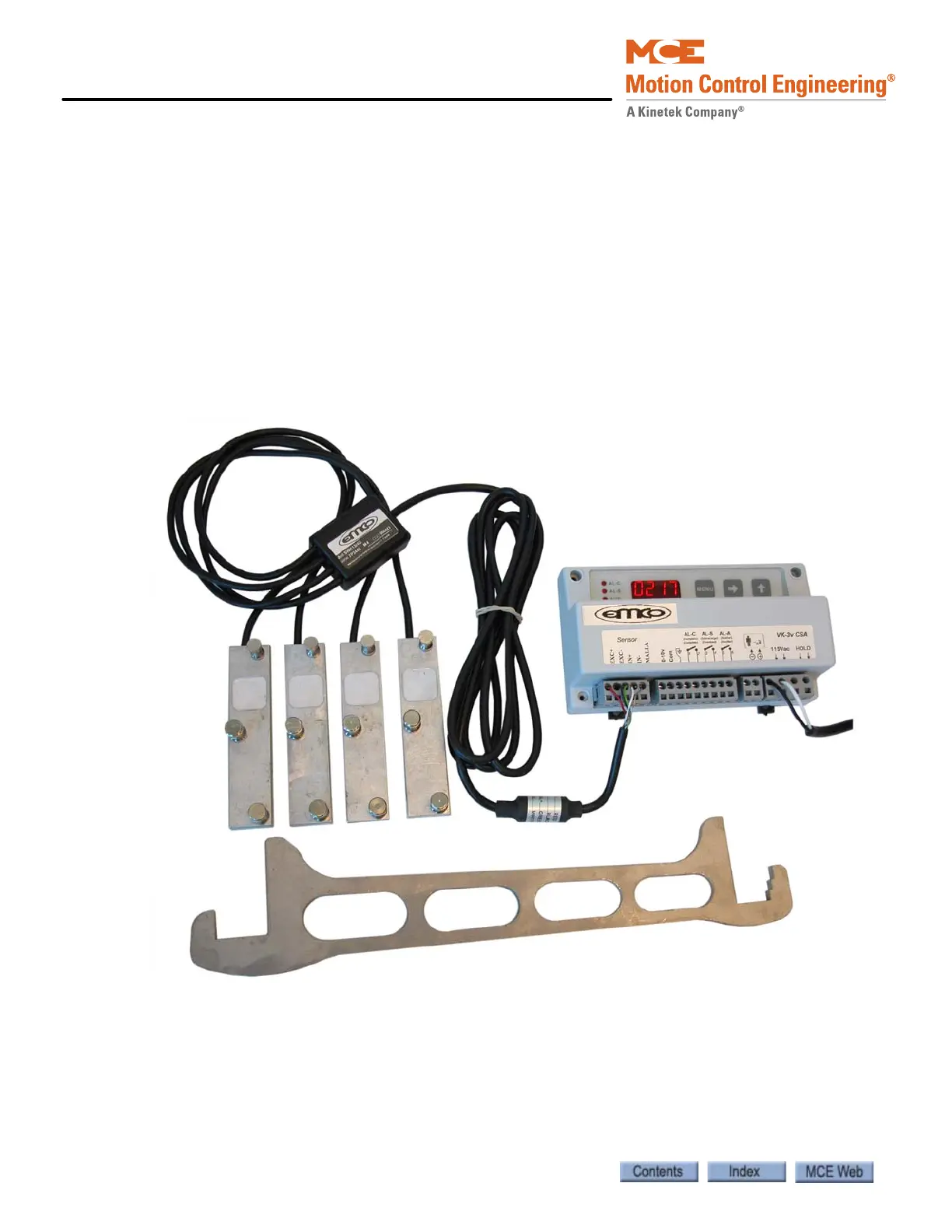

Components include:
- Control Unit, model VK-3V
- Load Cells, model SWK
- Sensor installation tool
- Terminal tool/key (not shown)
- Terminal cover plate (not shown)
- DIN rail mounting bracket (not shown)
