Motion 4000

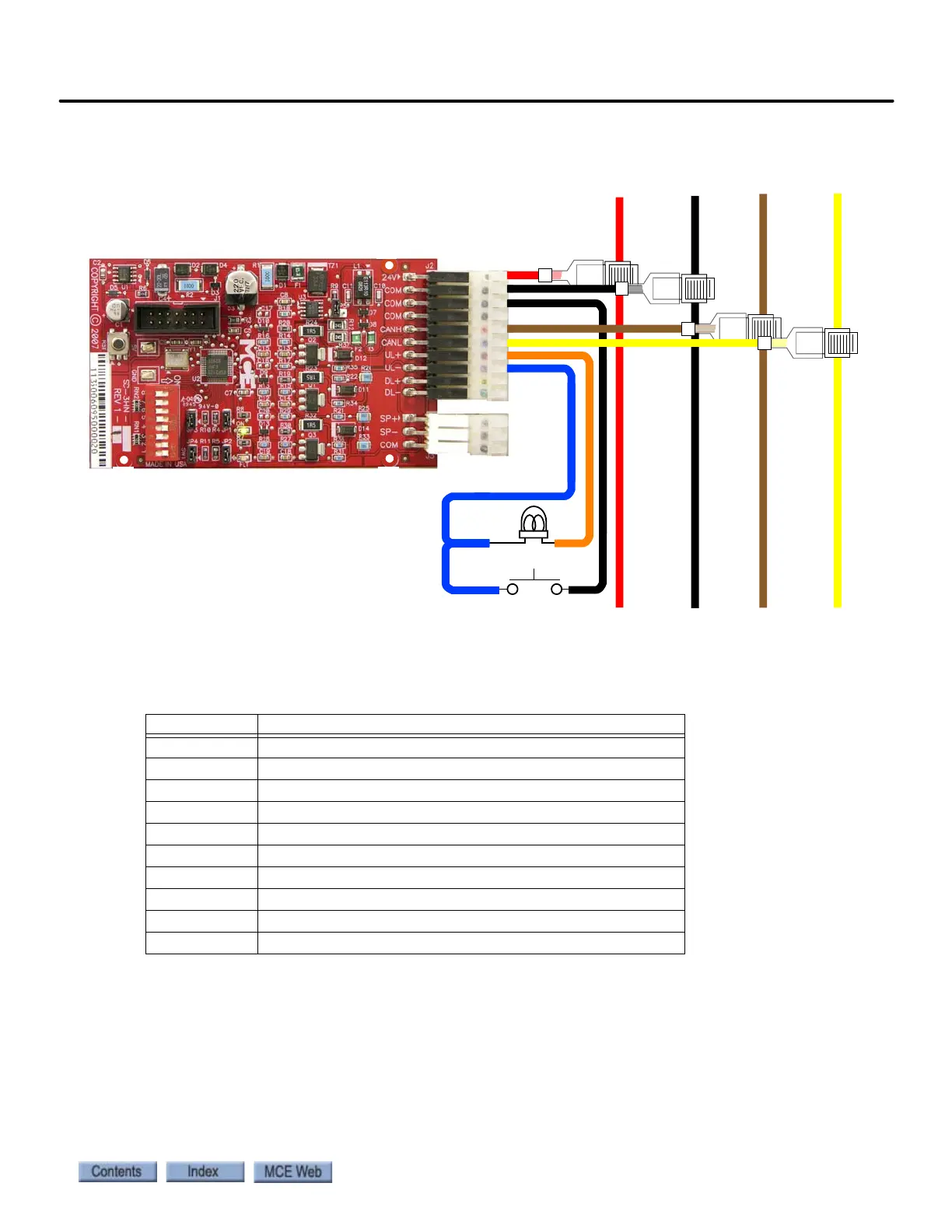

Figure 5.14 Hall Call Node Wiring
Table 5.23 Hall Wiring Colors
Color Signal
red +24V
black common
brown CAN H
yellow CAN L
orange UL+
blue UL-
violet DL+
green DL-
gray SP+
white SP-
COM
UP HALL CALL
(Others similar)
UL -
UL +
COM CAN H CAN L+24 V
