4-154 Motorola RF Switch System Reference Guide
5. Specify the AP Image File. You can browse the switch file systems using the browser icon. AP images
must be on the flash, system, nvram, or usb file systems in order for them to be selected.
6. Click the OK button to save the changes and return to the AP Firmware tab.
4.9.6.1 Editing an Existing AP Firmware Image
To modify the AP Firmware Image settings:
1. Select Network Setup > Access Port from the main menu tree.
2. Click the AP Firmware tab.
3. Select an AP Image Type from the AP Image Upload table.

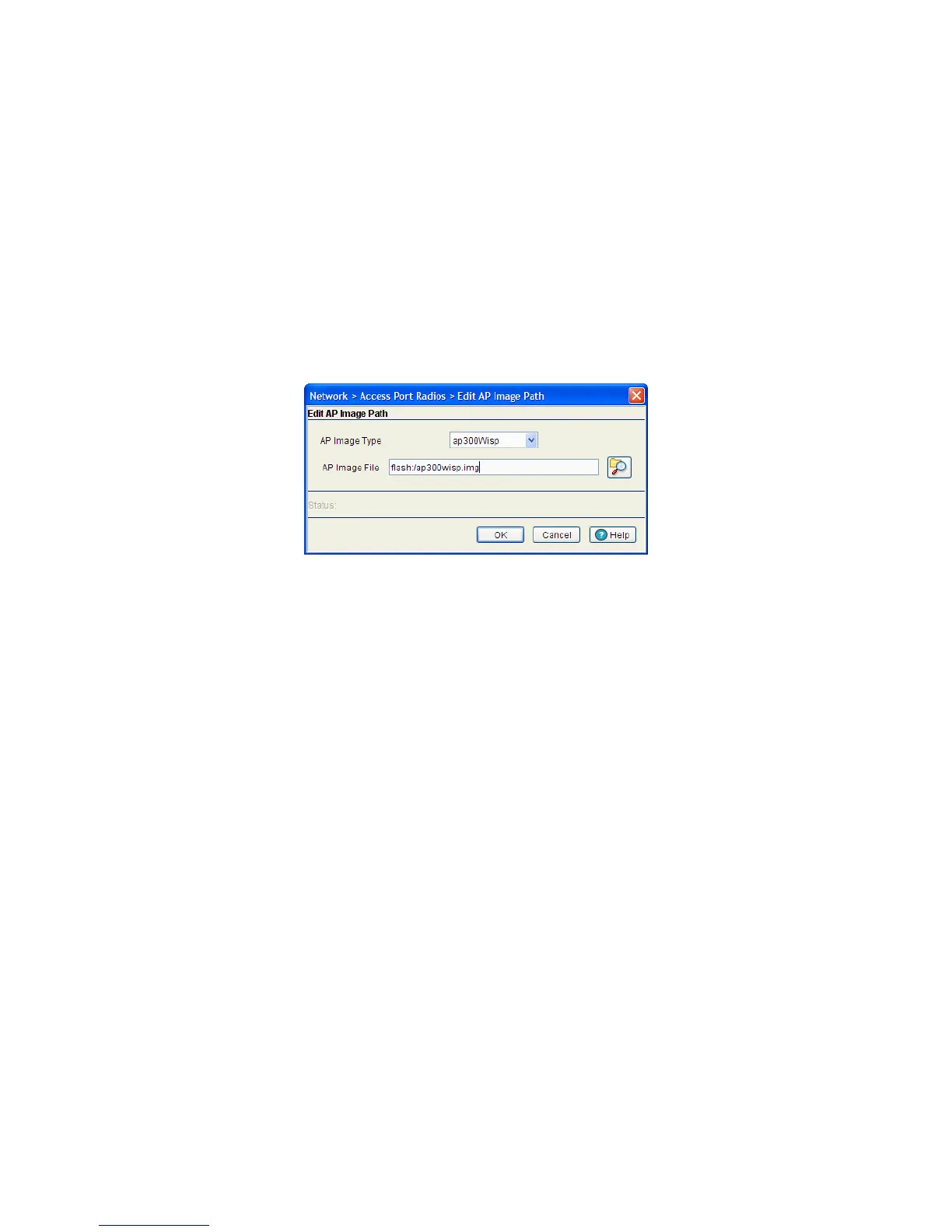

4. Click the Edit button to display a screen to change the AP Image Type or AP Image File.
5. Modify the AP Image Type as necessary.
6. Modify the AP Image File as necessary. You can browse the switch file systems using the browser icon.
AP images must be on the flash, system, nvram, or usb file systems in order for them to be selected.
7. Click the OK button to save the changes and return to the AP Firmware tab
4.9.6.2 Updating an existing AAP Image Firmware
Use the Update AAP Image button to update a selected Adaptive AP image firmware. To update an AP
image:
1. Select Networks > Access Port from the main menu tree.
2. Click the AP Firmware tab.
