Feature Descriptions MDM6000 Satellite Modem
14 Feature Descriptions
14.1 Modulator
The modulator functional block is used to perform the actual modulation of the incoming BBFs.

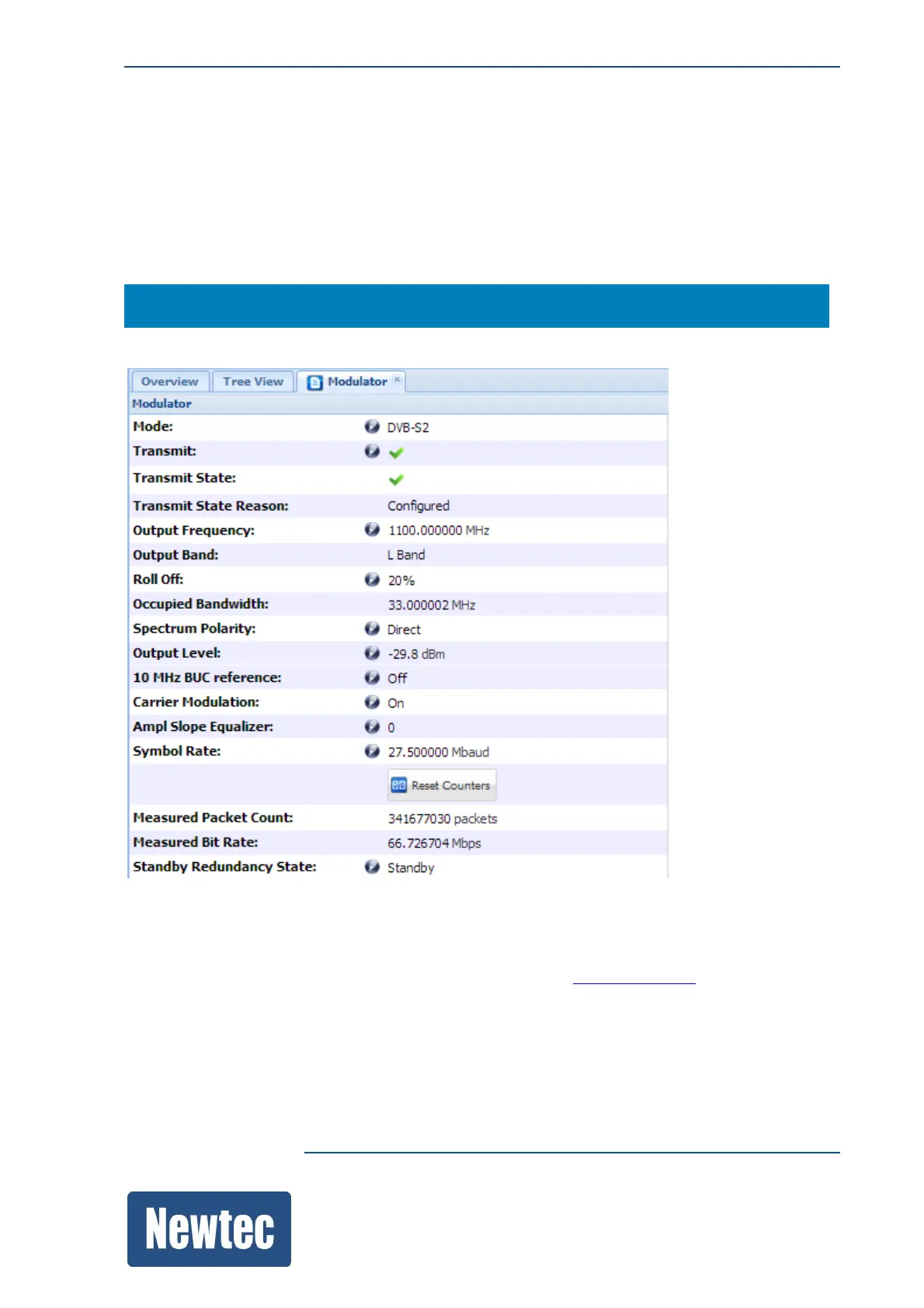

Navigate to the following location to view all parameters.
MDM6000 >> Modulator
The main parameters are:
• Modulation Mode: DVB-S2, DVB-S2X, S2 Extensions;
(The available modes depend on the ordered options, refer to Optionsonpage10.)
• Transmit On/Off;
• Output Level;
• Output Frequency;
• Symbol Rate.
All parameters are described in the following sections.
