Feature Descriptions MDM6000 Satellite Modem

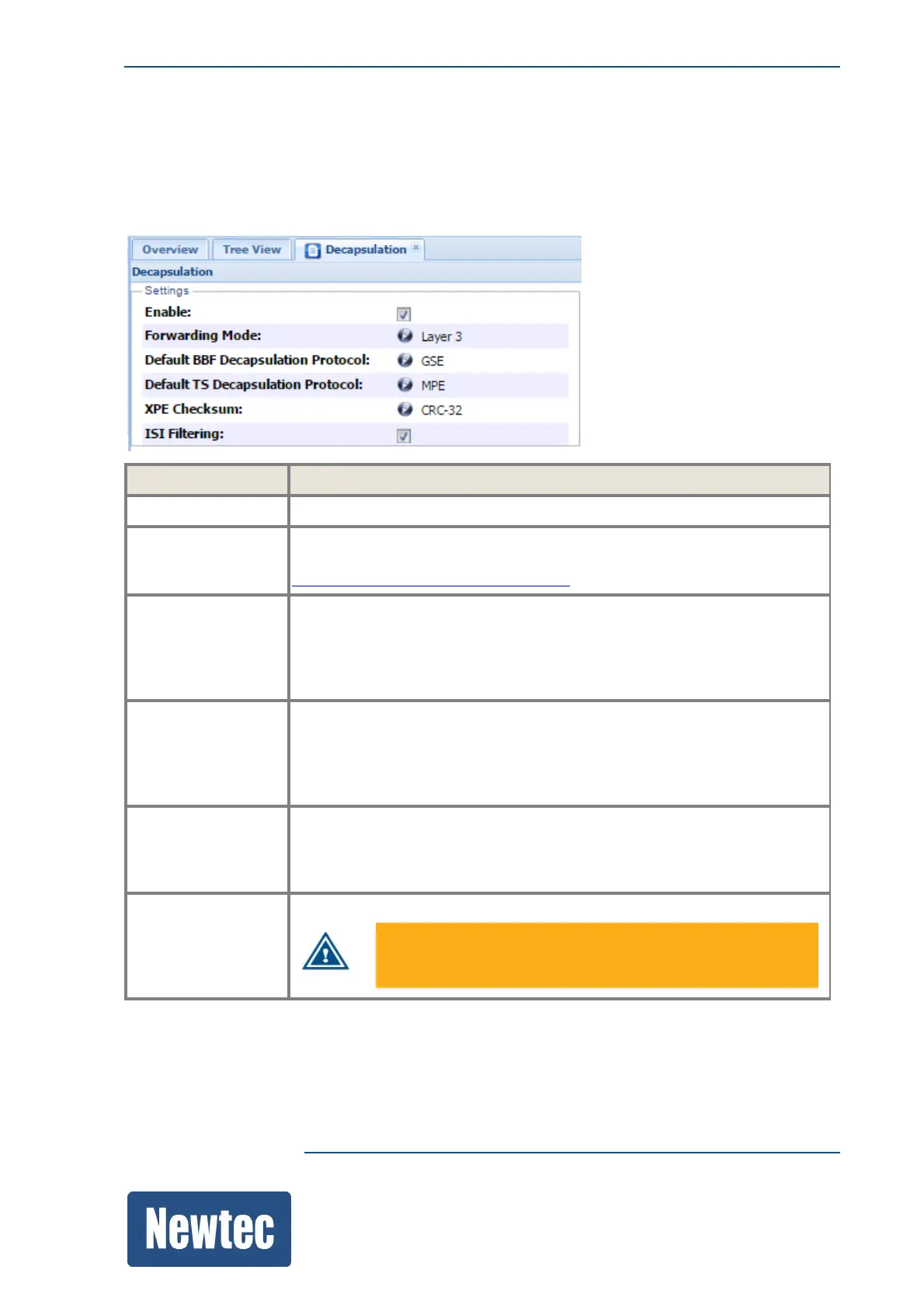

14.12.1 Decapsulation General Settings
Enable this functional block to perform decapsulation on the incoming IP data (coming from the
satellite).
Parameter Description
Enable Enable the stream decapsulation.
Forwarding Mode Set the forwarding mode: Layer 3 (IP Router) or Layer 2 (Ethernet Bridge).
More details about Forwarding Mode can be found in
EncapsulationGeneralSettingsonpage223.
Default BBF
Decapsulation
Protocol
Select the default decapsulation protocol that is mainly used to
decapsulated the incoming BBFs.
• GSE;
• XPE.
Default TS
Decapsulation
Protocol
Select the default decapsulation protocol that is mainly used to
decapsulated the incoming "TS packets".
• MPE;
• ULE.
XPE Checksum Use this setting when the encapsulated packets are in XPE format and
when a CRC check is activated on the transmitter site. This setting is
basically introduced to be compatible with legacy equipment (such as the
EL470).
ISI Filtering Enable ISI filtering.
When this is not enabled no filtering is performed and the
decapsulation cannot take place!
