Feature Descriptions MDM6000 Satellite Modem
14.11.2.1 BBF Encapsulation ISIs
The encapsulator encapsulates the shaped IP traffic into BBFs. This is done by adding an ISI (Input
Stream Identifier), specifying the Baseband frame type (normal or short) and defining the used
encapsulation protocol.

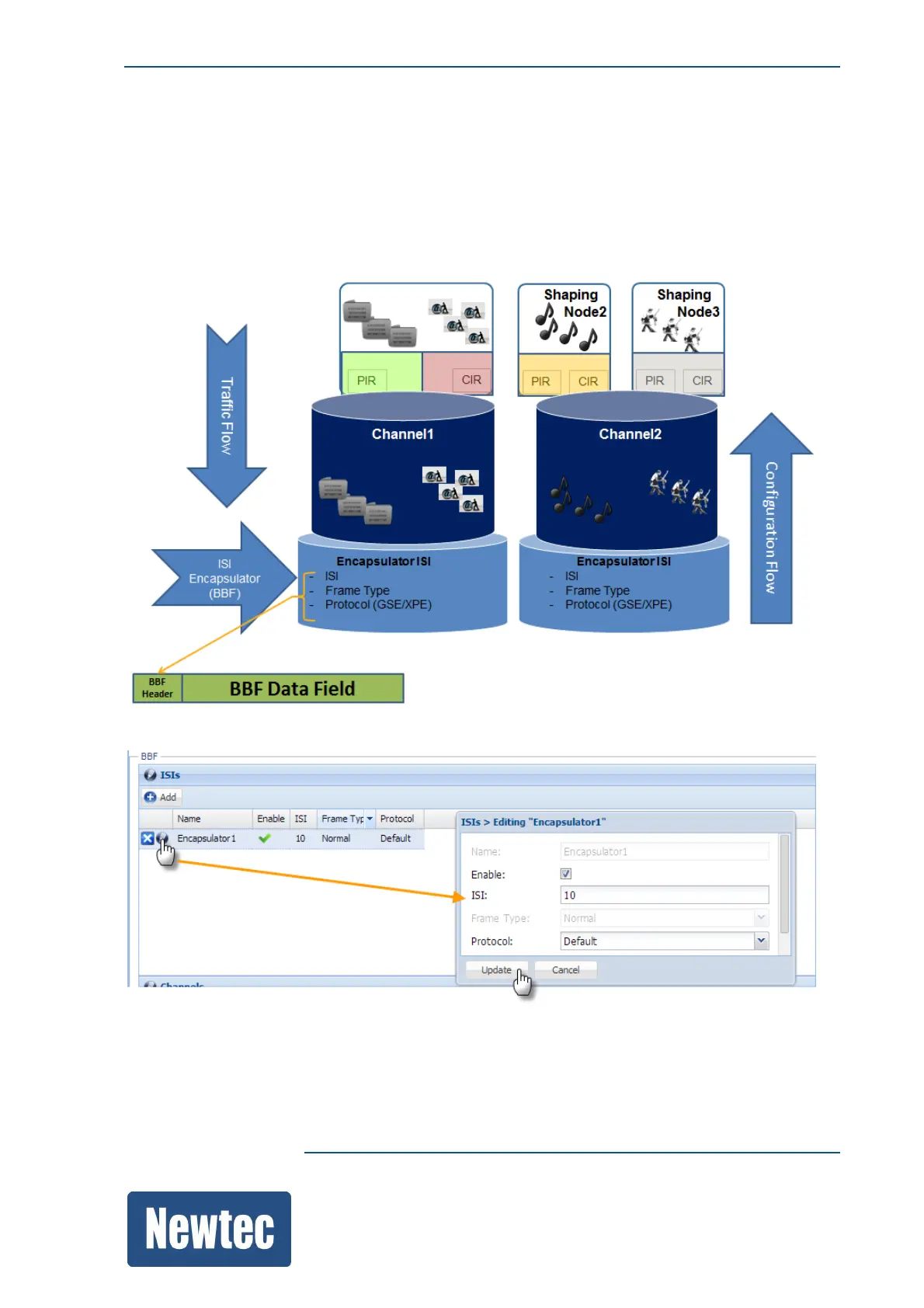

The encapsulator adds this information into the BBF header. The following figure shows this
principle.
