How to Manage the Device MDM6000 Satellite Modem
11.5.10 Status Bar

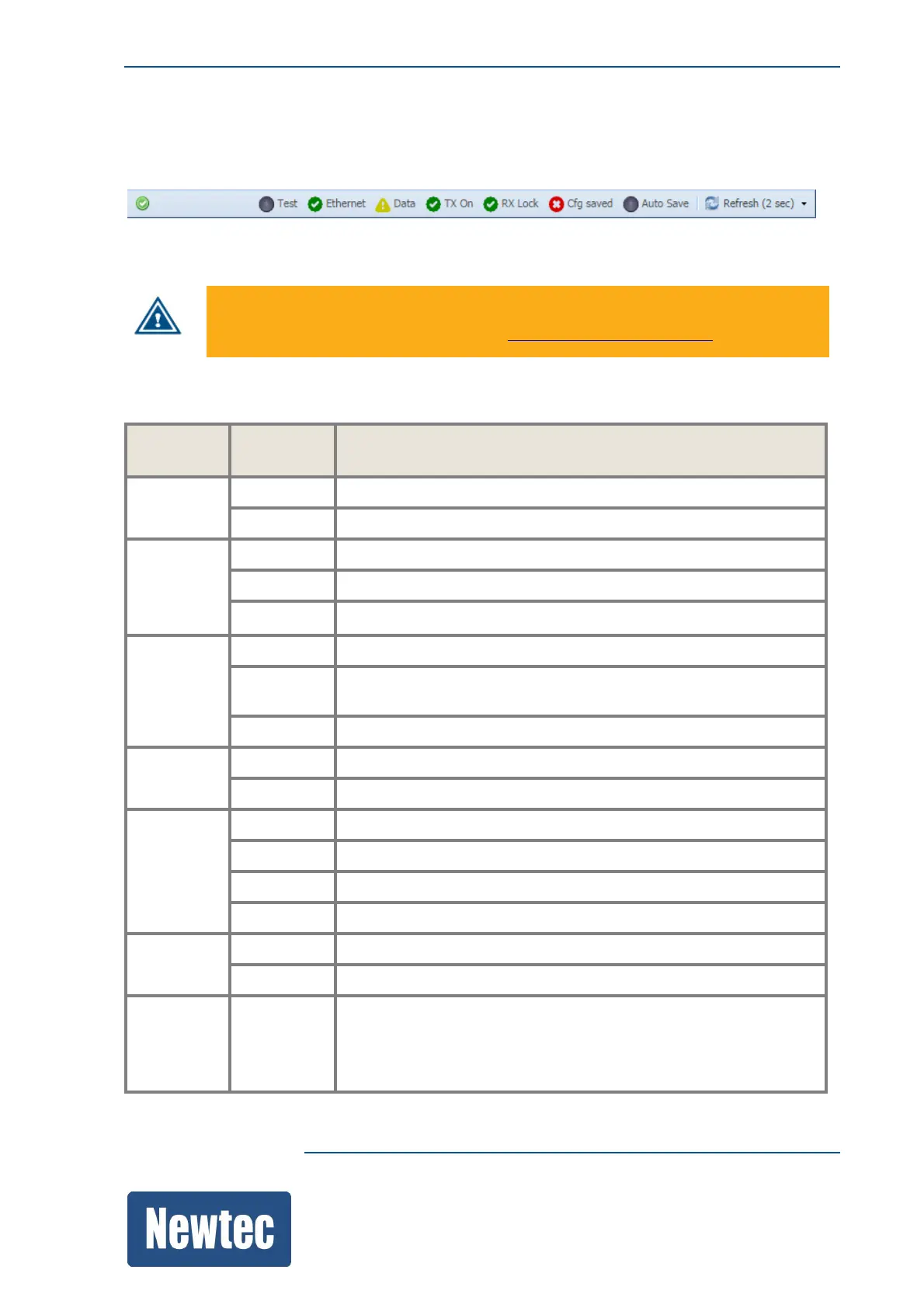

The status bar informs on the following:
Cfg saved is red when the active configuration is modified but not saved.
To save the configuration, refer to section: SaveaConfigurationonpage99.
The following table describes the available LEDs.
LED LED
Color
Description
Test Green The build in PRBS generator is active.
Off The build in PRBS generator is inactive.
Ethernet Green The incoming data signal is valid.
Red Indicates an interface alarm.
Off
The incoming data signal is not valid.
Data Green The incoming or outgoing data signal is valid.
Yellow The data interfaces are configured but there is no activity
monitored during the last second.
Off The input and output interfaces are not enabled.
Tx On Green The device is transmitting.
Off The transmission is disabled.
Rx Lock
Green The demodulator is fully locked.
Yellow The demodulator is locked to the incoming carrier.
Red The demodulator cannot lock to the incoming carrier.
Off The demodulator is disabled.
Cfg saved Green Indicates that the active configuration is saved.
Red Indicates that the active configuration is modified but not saved.
Refresh Select the drop-down menu to define the GUI Refresh Time.
When working over a slow/long-delay link (like a satellite link)
slowing down this refresh time could be useful to improve the
responsiveness of the GUI.
