Data Interfaces MDM6000 Satellite Modem
13.4 BBF over IP In
This block takes care of Baseband Frames (BBFs) received on the data Ethernet port(s) of the
modem.
It is used when an external encapsulator (like NOP1760 is used.

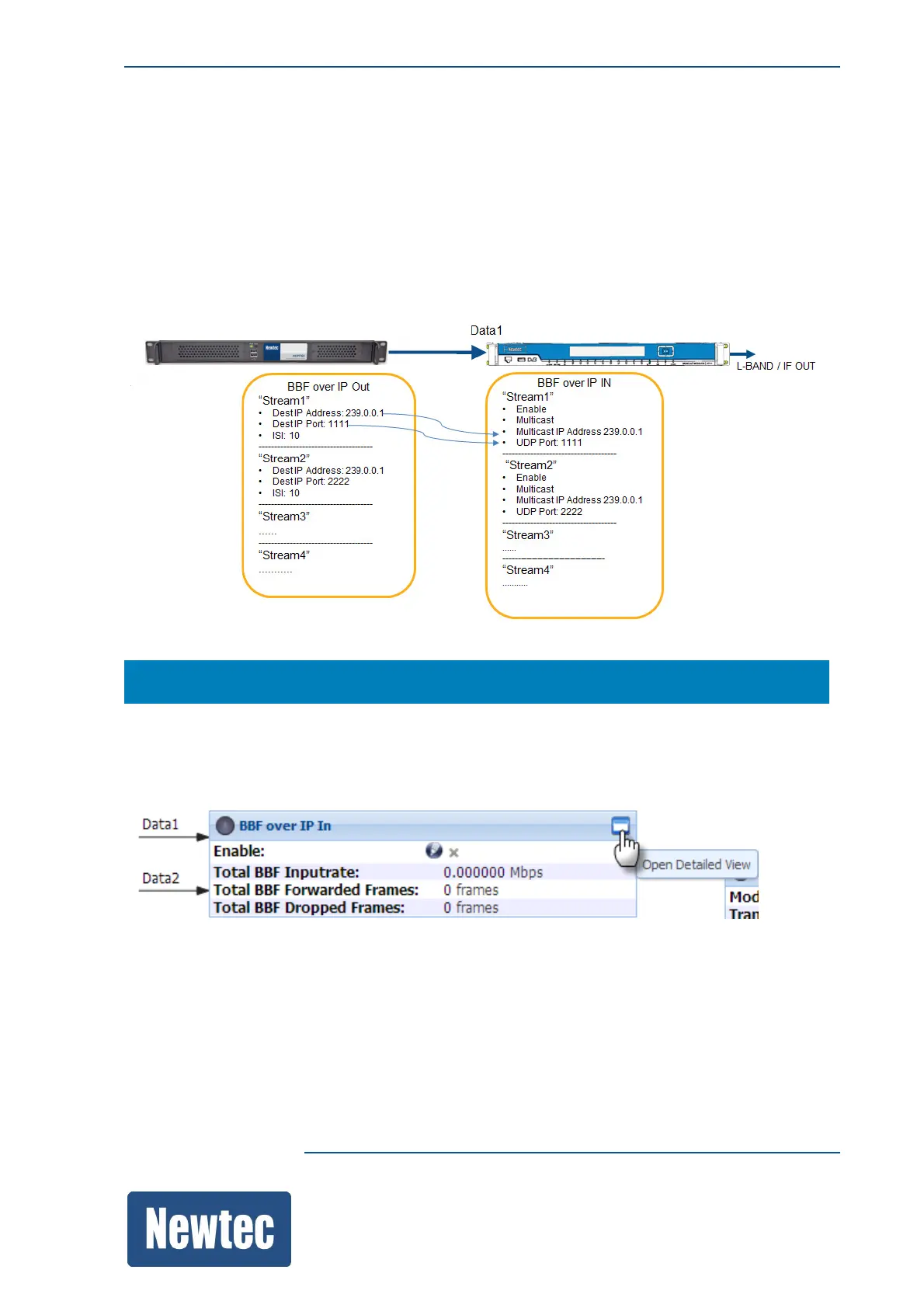

The following figure shows an example of a setup between the NOP and the MDM6000.
Navigate to the following location:
MDM6000 >> BBF over IP
or
via the function control window.
Click on the BBF over IP In, open detailed view.
The following window is displayed.
