Feature Descriptions MDM6000 Satellite Modem
14.11.4 QOS Rule to Drop Incoming Traffic
When unwanted IP traffic is arriving on the device, malicious or just traffic you don't want to transmit
over the air, the MDM6000 makes it possible to classify this traffic and drop it.

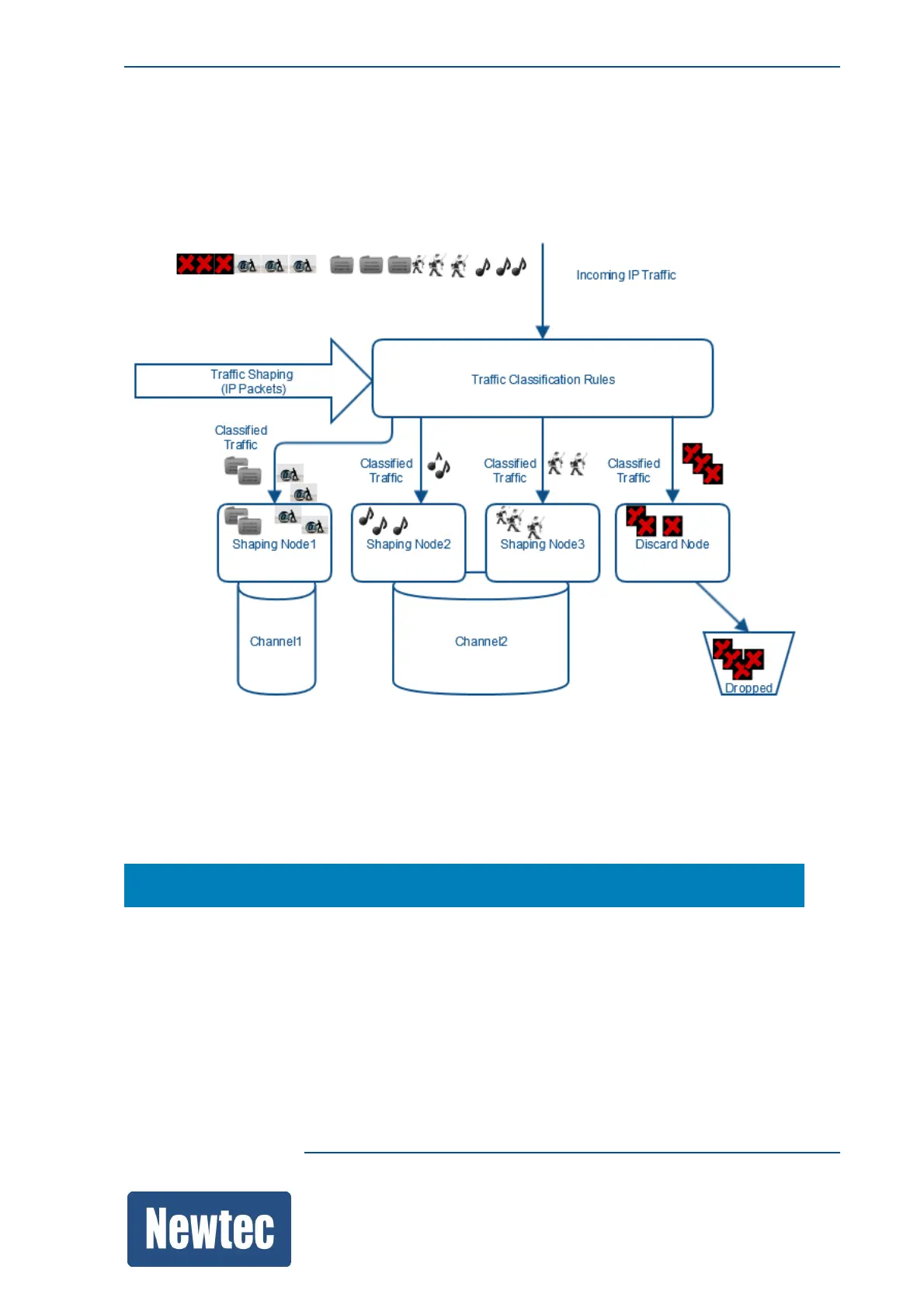

Refer to the following figure:
Proceed as follows to discard this traffic:
» Add a classification rule (to select the unwanted traffic)
» Select the discard node
All traffic that is captured by the rule is discarded (dropped), no further processing is performed on
this traffic.
MDM6000 >> Encapsulation >Shaping
