Physical Description MDM6000 Satellite Modem
8.2.4 Alarm Interface
The alarm interface can be used to build up device redundancy switching systems.
When using the USS0202 Universal Redundancy Switch it is not mandatory to use
alarm contacts. The Universal Redundancy Switch can also gather the alarm status
from the different pieces of equipment in the setup over the management interface.
To enable device redundancy please refer to section:
DeviceRedundancyonpage113.onpage113
Connect the alarm interfaces.
The contacts are normally closed to insure that an alarm is generated when the alarm cables are
removed.

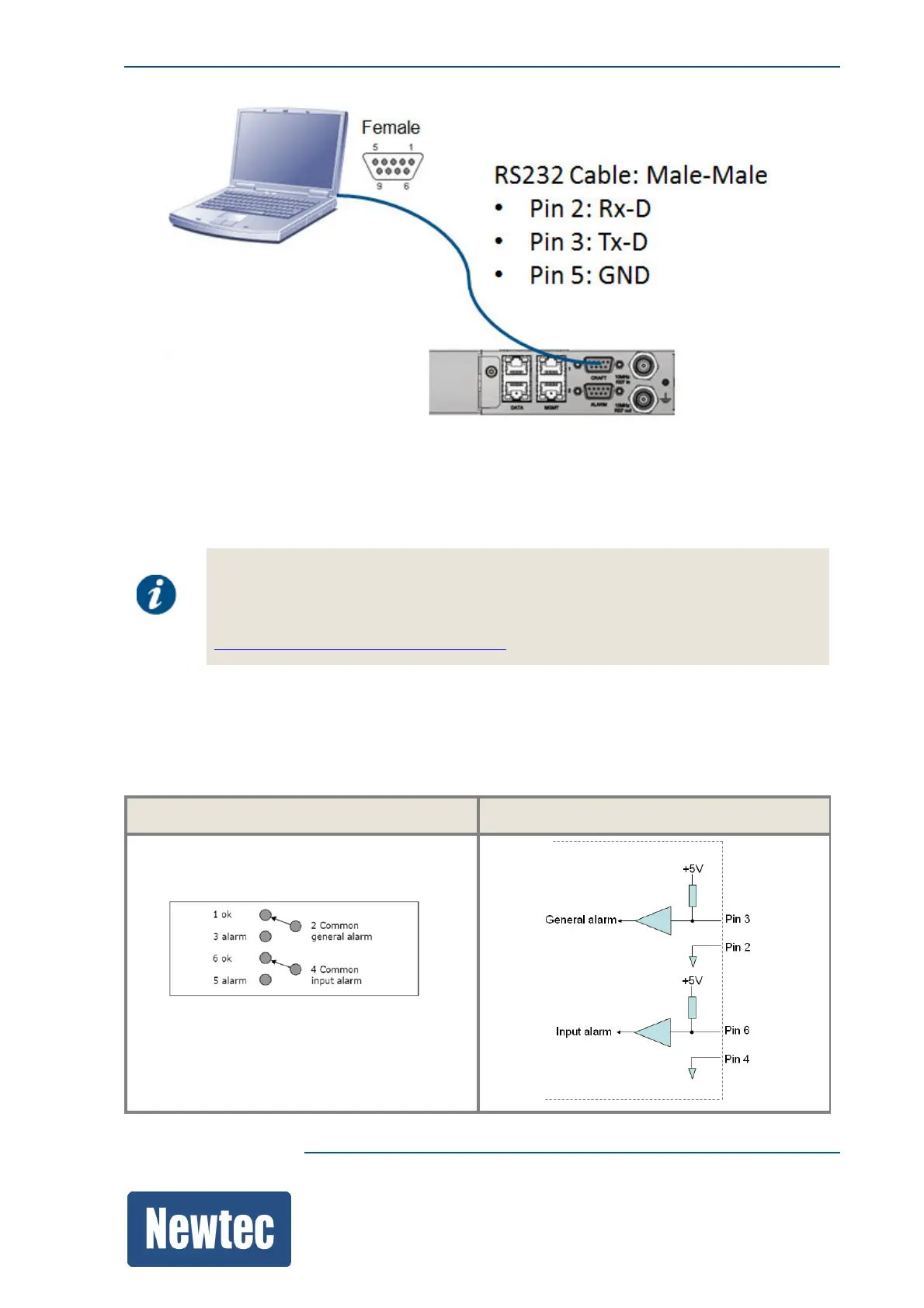

Refer to the following figures for the pin layout:
Pin Layout Technical Representation of the Pin Layout
