Feature Descriptions MDM6000 Satellite Modem

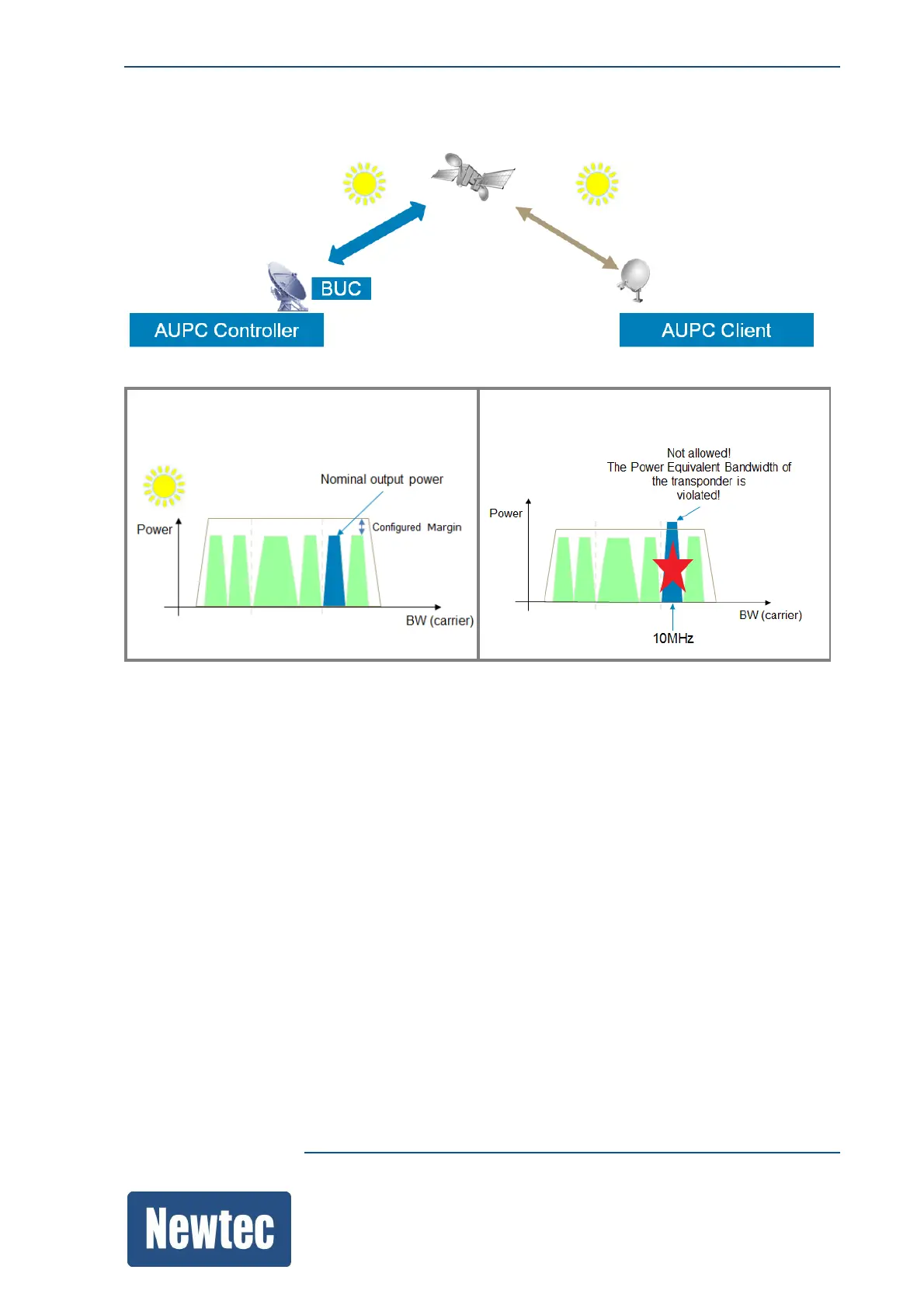

The following figure shows the AUPC controller/Client and the weather conditions during
configuration of the AUPC Controller.
The following figure shows the required
nominal power. Note that a configured margin
is needed to respect the PEB at all time.
The following figure shows the scenario that is
not allowed in any case!
The configuration of the feature can be split up into three major parts.
• Gather all the BUC specifications and verify the link budget for an uplink noise limited link;
• Configuring the AUPC controller (sending site, uplink);
• Configuring the AUPC Client (remote site).
