Select the scale factor
Select the scale factor
Introduction
You can use the ‘Scale’ setting to select a scale factor. This scale factor is used to
recalculate the size of the original to fit onto the output material which can have a
different size.
Note: You can also select the scale factor from the ‘Custom’ card (if this setting has
been defined for this card).

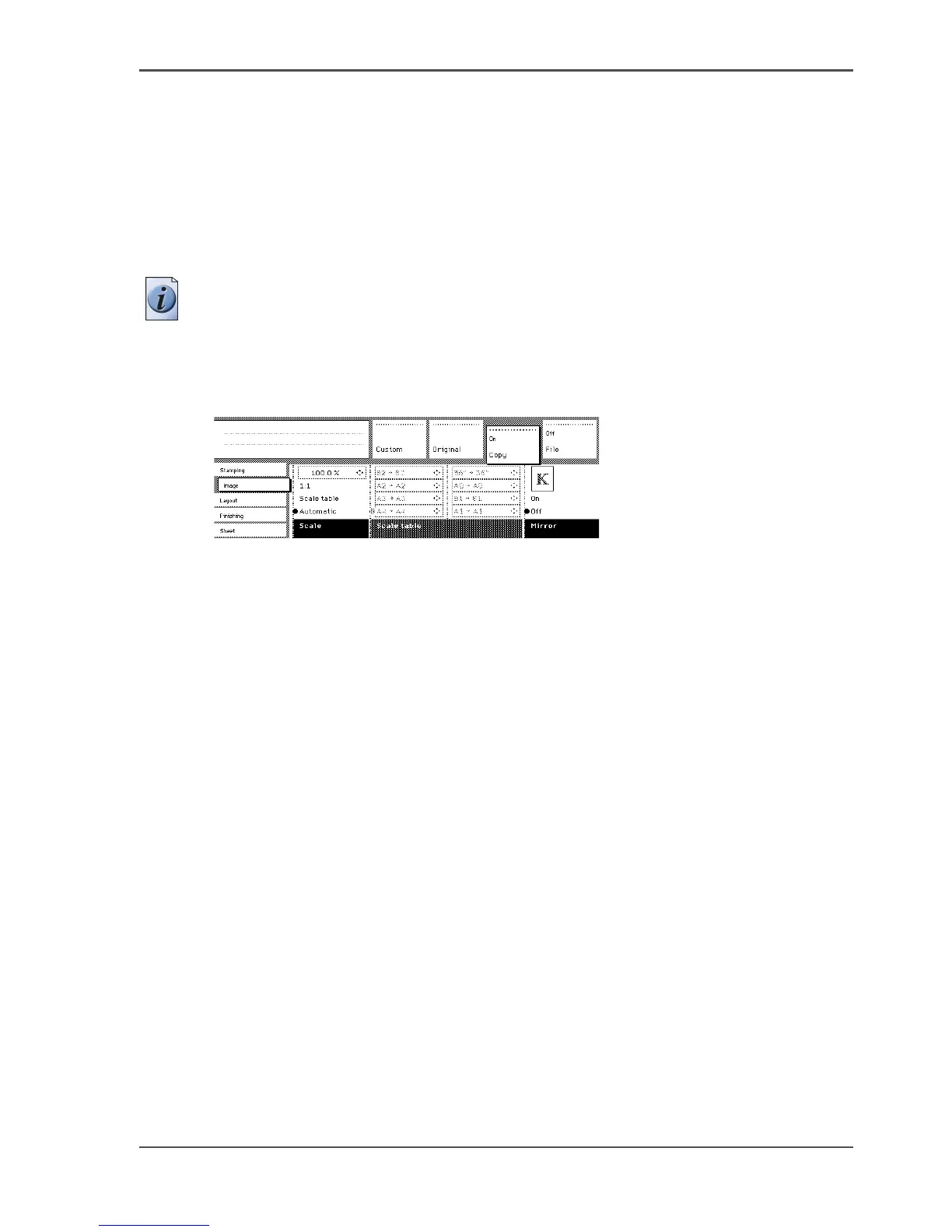

Illustration
[114]
[114] Select the scale factor
Select the scale factor
1. Select the ‘Image’ card in the ‘Copy’ section.
2. Select Automatic, scale table, 1:1, or set the scale factor on the display of the scanner
operator panel.
■ Automatic scale selection. The system automatically calculates the scale ratio
based on the original size and the output media size
■ 1:1. Results in an image that is exactly the same size as the original.
■ Scale table. Gives access to the scale table conversions. You can choose between
4 pre-defined enlargement steps and 4 reduction steps. These steps translate the
original size to a pre-defined output size.
■ Set the scale factor manually on the display of the scanner operator panel.
Use the arrow keys on the right of the display. If you press one of the vertical
keys, the scale factor will increase or decrease with steps of 0.1%. If you press
one of the horizontal keys, the scale factor will increase or decrease with the steps
pre-defined in the Océ TDS700 Power Logic
®
controller application.
Use the numeric keys at the bottom of the scanner operator panel. You can
specify the exact scale factor with 0.1% increments. For example, if you want to
specify a scale factor of 25.4%, you type 254. If you want to specify a scale
factor of 254%, you type 254.
