321
Paper jam in the folder
3. Remove any jammed printing material.
4. Squeeze the two knobs again and put the plate in its original position.
5. Release the green lever in the lower section of the belt unit (by slightly lifting it and
pulling it forward) to open the lower plate.
[186]

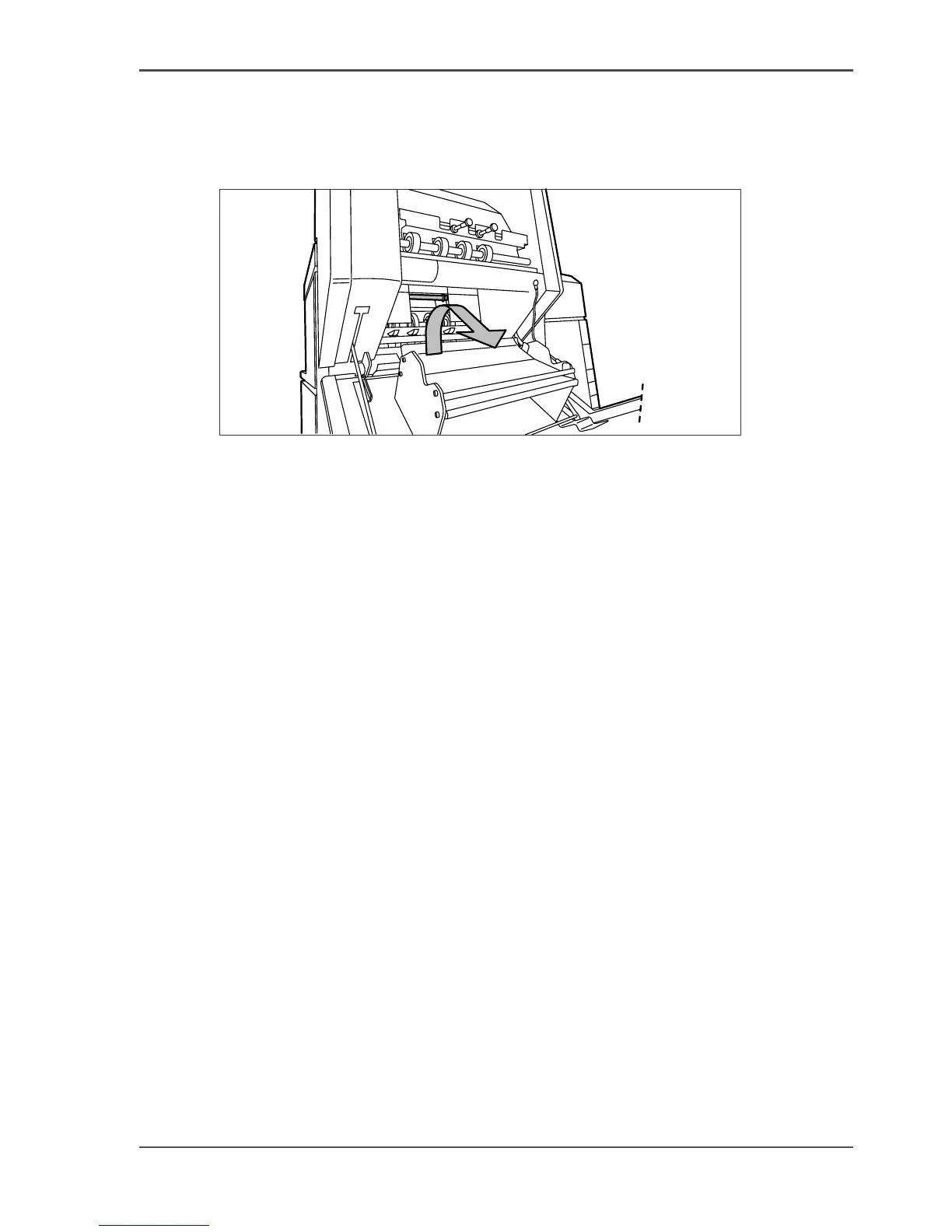

[186] Opening the lower plate
6.
Remove any jammed printing material.
7. Pull up the green lever again (until it locks into position) to close the plate.
8. Close the belt unit door.
9. Put the belt in its operating position by pushing it down gently.
