Omron SYSDRIVE MX2 SERIES User Manual

5-23
5-2 Basic Functions
SYSDRIVE MX2 Series USER'S MANUAL (3G3MX2-Axxxx)
5
Functions

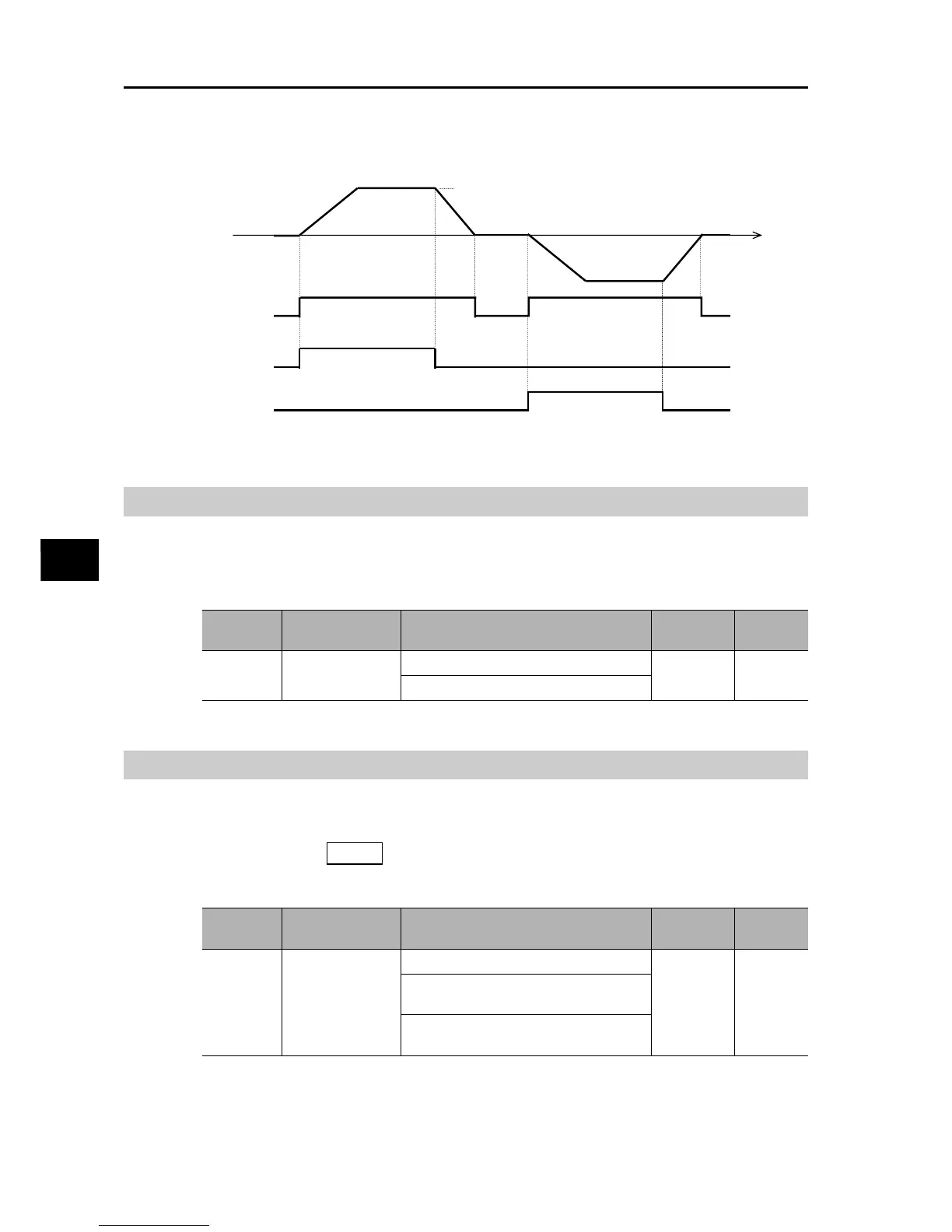

An overview of run/stop operations using the FW/RV terminals is shown below.
RUN Direction Selection
Select the rotation direction to be applied when a RUN command is input from the Digital
Operator or external Digital Operator.
Becomes invalid when any RUN command issued from the control circuit terminal block or
Remote Operator.
Rotation Direction Limit Selection
Limits motor rotation directions.
Enabled in either "control circuit terminal block" or "Digital Operator" control mode.
When a limited RUN command is input from the control circuit terminal block, the Digital
Operator displays .
Output frequency
Forward direction
Reverse direction
RUN lamp
Forward command
FW input
Reverse command
RV input
Output frequency setting
ON
ON
ON
ON
OFF
OFF
OFF
Time
Parameter
No.
Function name Data
Default
setting
Unit
F004
RUN Direction
Selection
00: Forward operation
00 −
01: Reverse operation
OkOkOkO
Parameter
No.
Function name Data
Default
setting
Unit
b035
Rotation Direction
Limit Selection
00: No direction limit
00 −
01: Only Forward is enabled
(No Reverse)
02: Only Reverse is enabled
(No Forward)
